Home >> Buick >> 2013 >> Regal L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Wheel Heater Control Module

Steering Wheel Heater Control Module





Component Connector End Views

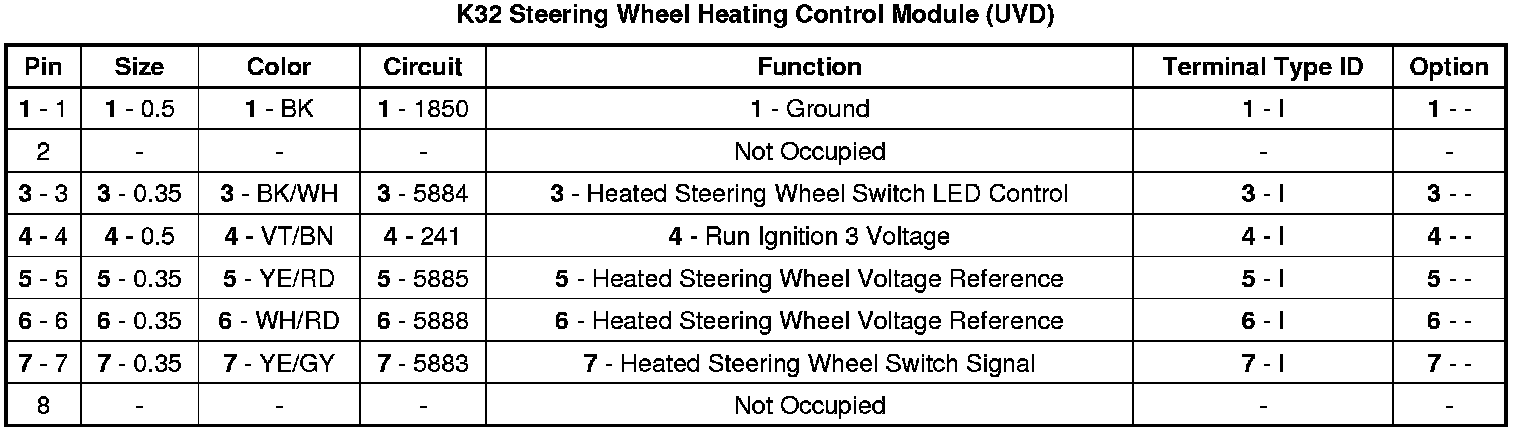

K32 Steering Wheel Heating Control Module (UVD)
