Home >> Buick >> 2013 >> Regal L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Control Module >> Seat Memory Control Module X1 A45/CZ2

Seat Memory Control Module X1 A45/CZ2





Component Connector End Views

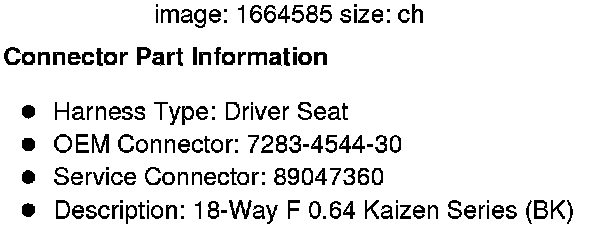

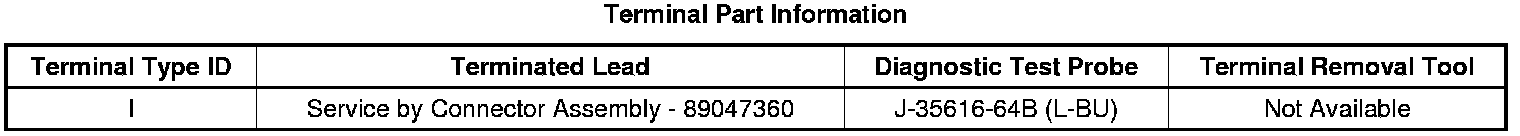

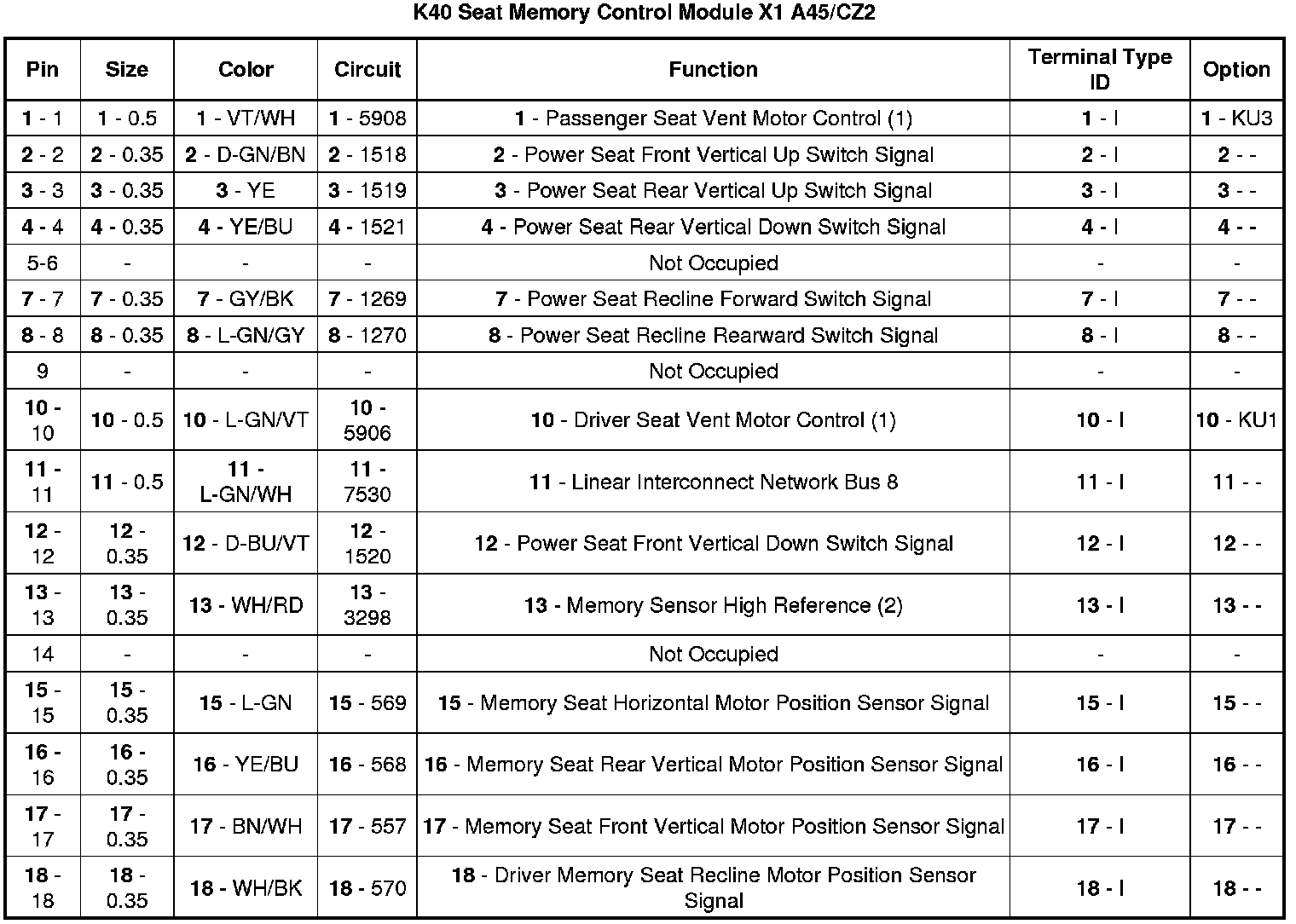

K40 Seat Memory Control Module X1 A45/CZ2
