Keyless Entry Control Module X2 (ATH/ATS)
Keyless Entry Control Module X2 (ATH/ATS)

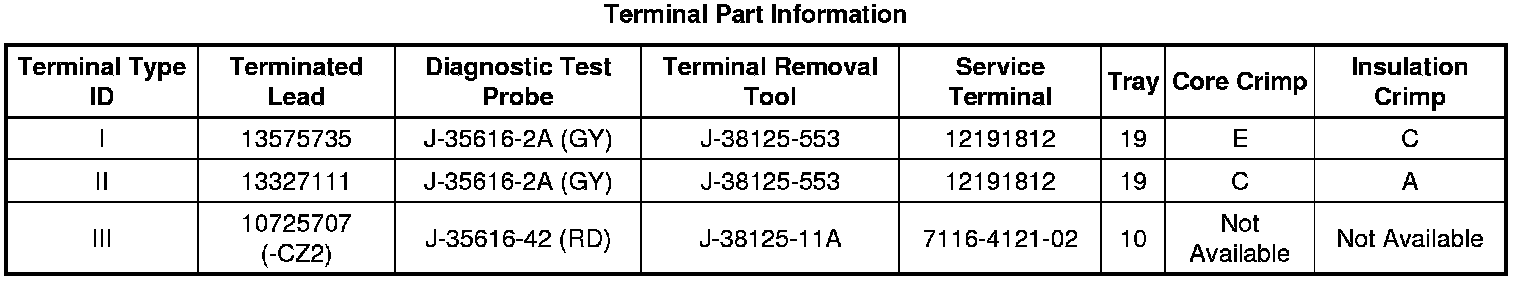

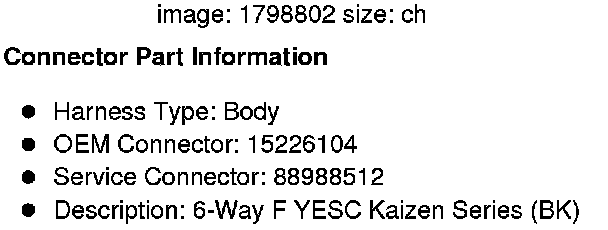

Component Connector End Views

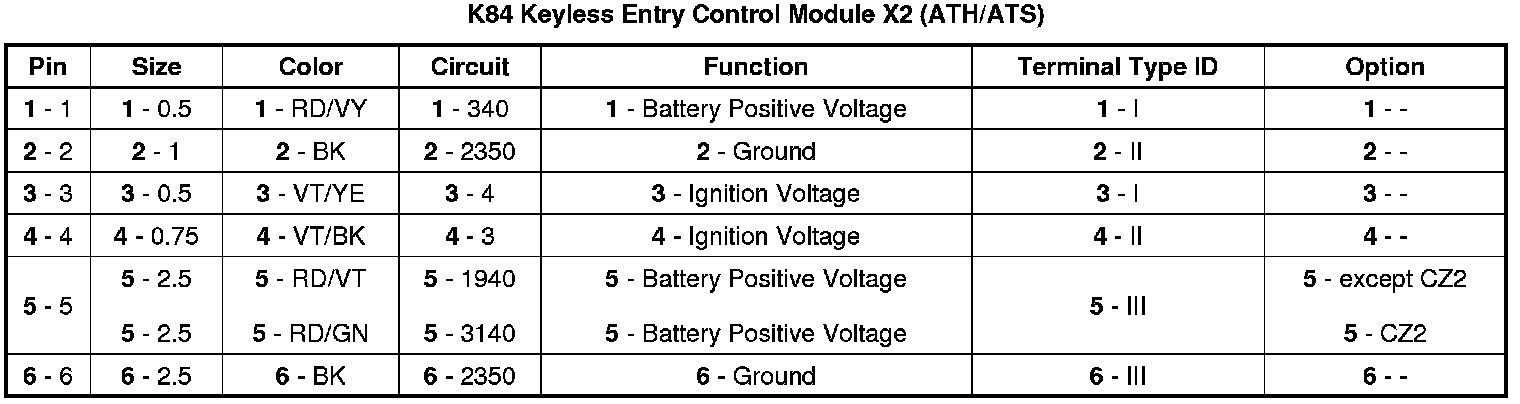

K84 Keyless Entry
Control Module
X2 (ATH/ATS)
