Home >> Buick >> 2013 >> Regal L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module





Component Connector End Views

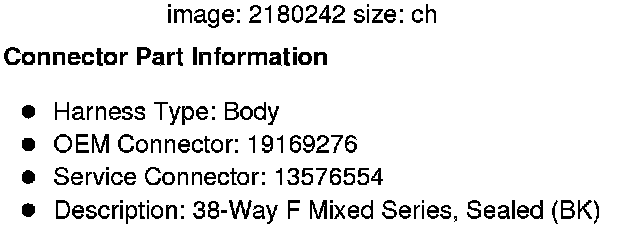

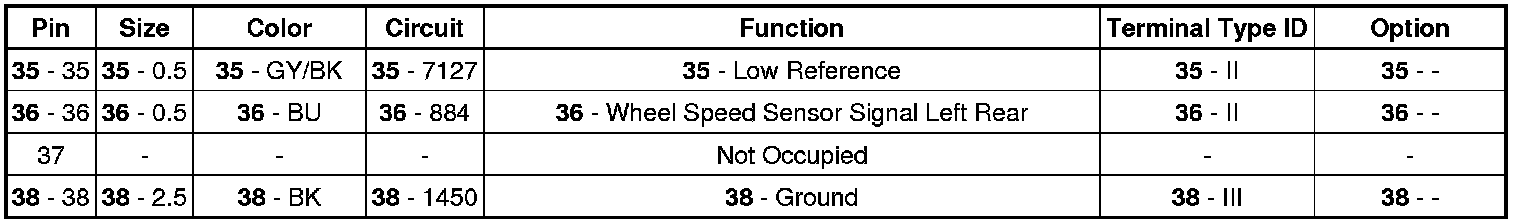

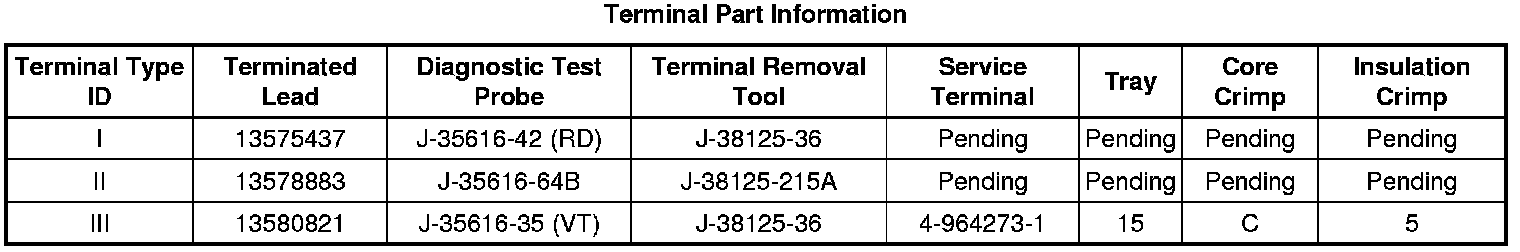

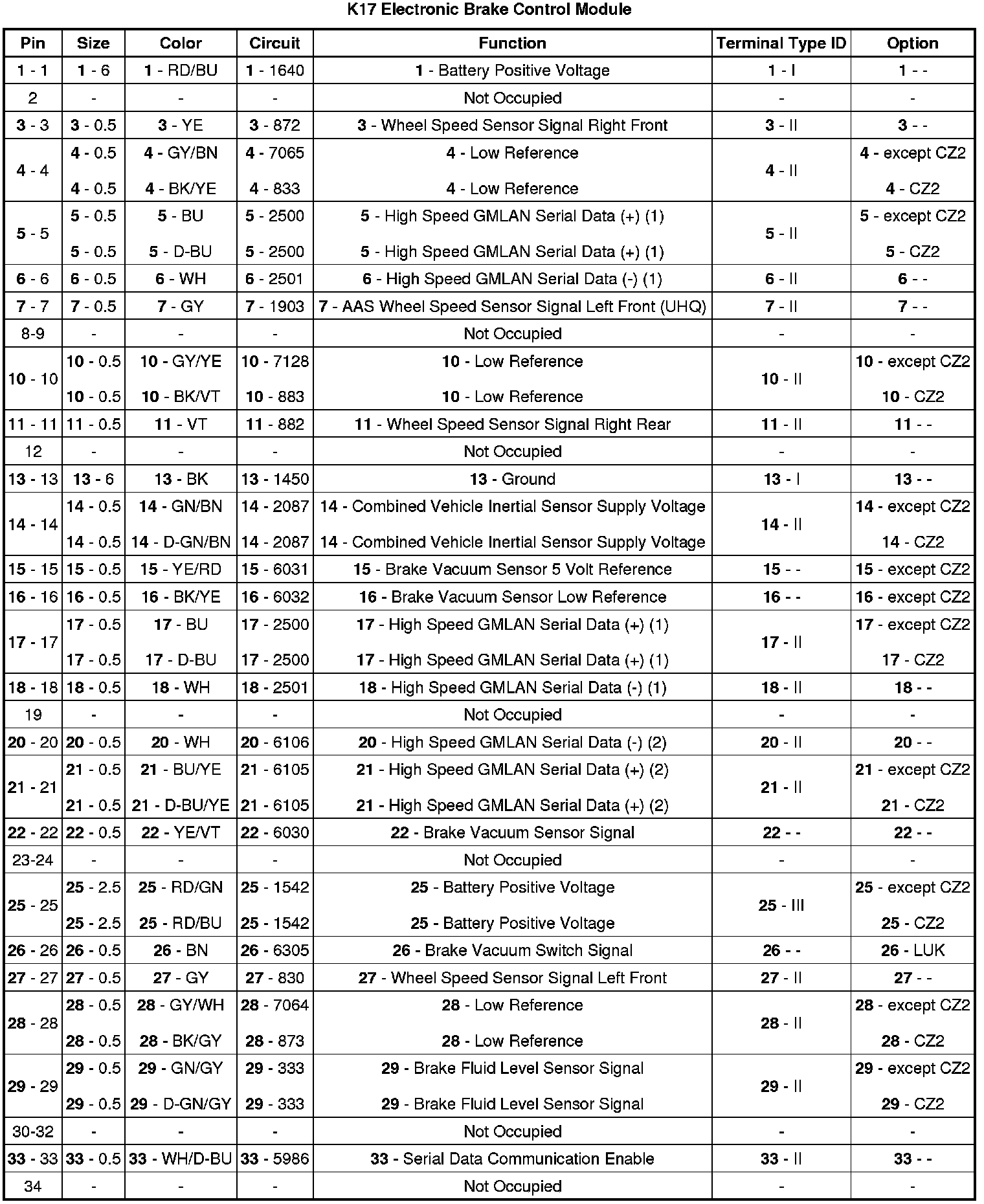

K17 Electronic Brake Control Module
