Buick
>>
2013
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
Communications Control Module
Component Connector End Views

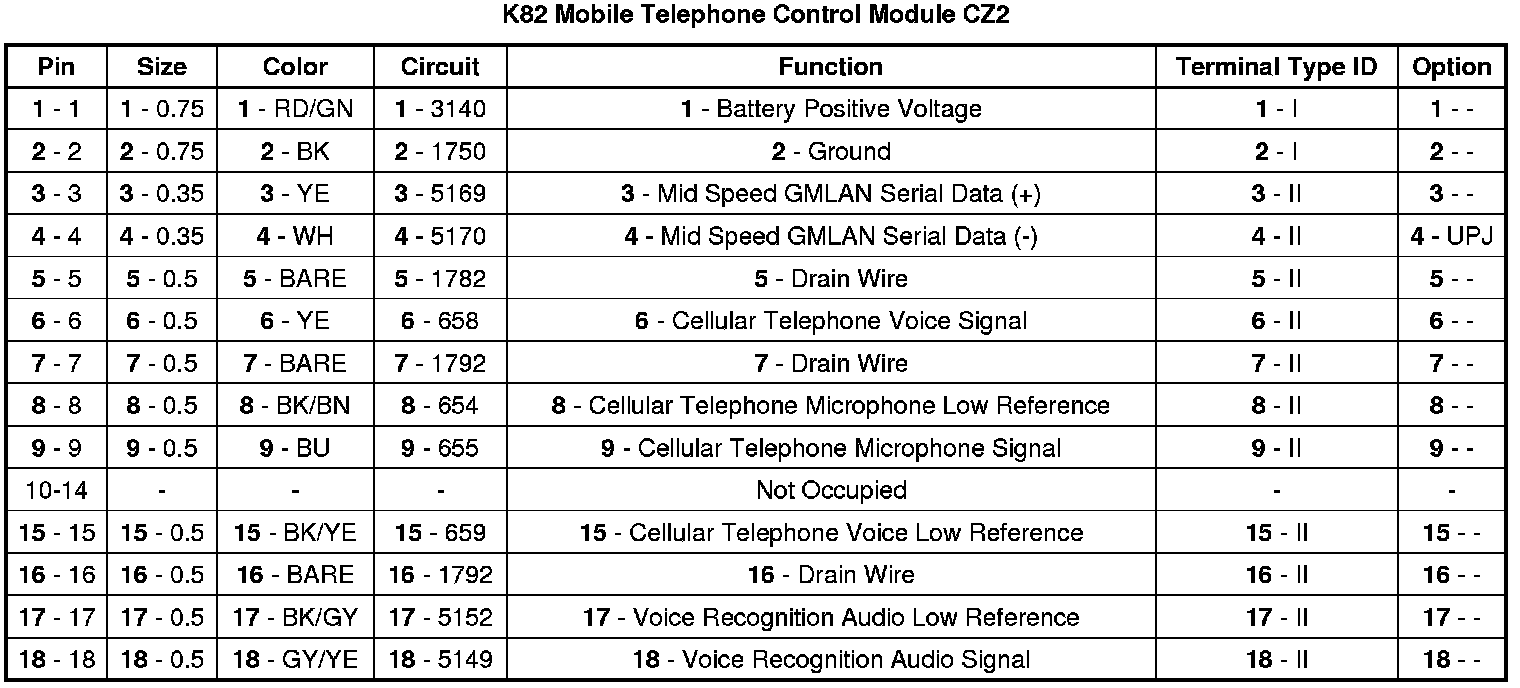

K82 Mobile Telephone
Control Module
CZ2
