Home >> Buick >> 2013 >> Regal L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Control Module >> Diagrams >> Keyless Entry Control Module X1 (ATH/ATS)

Keyless Entry Control Module X1 (ATH/ATS)

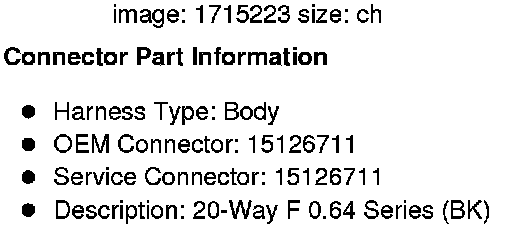

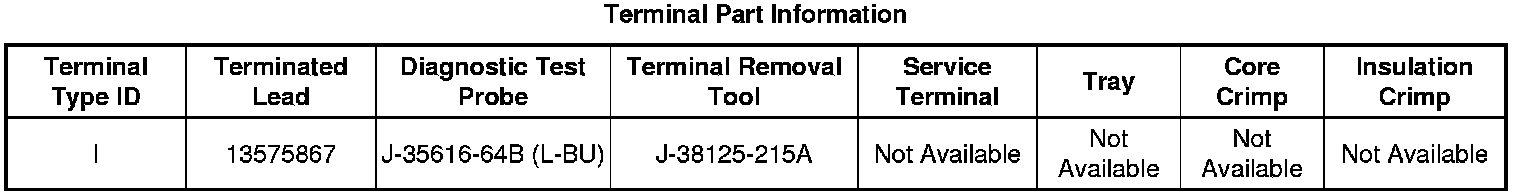

Component Connector End Views

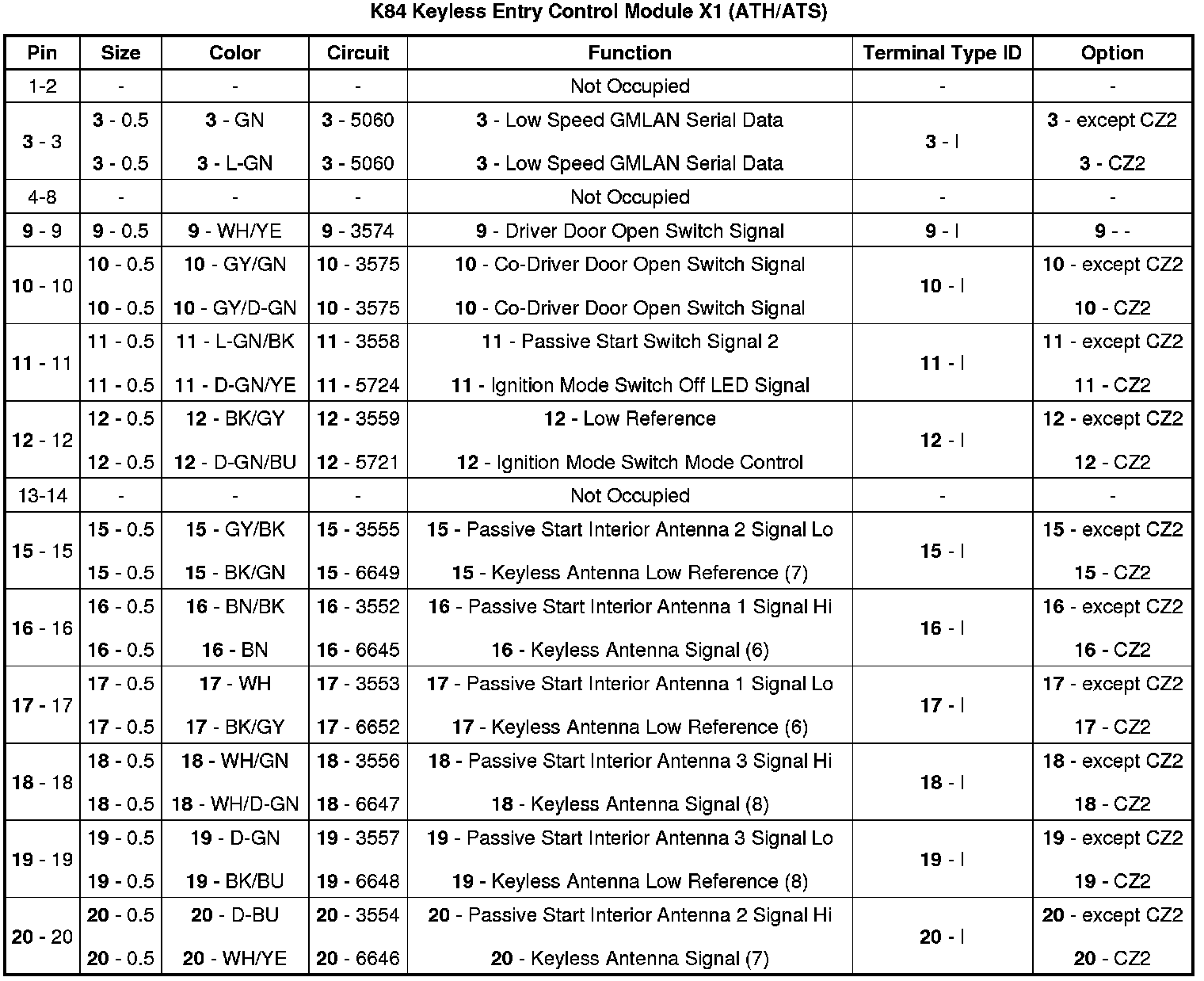

K84 Keyless Entry Control Module X1 (ATH/ATS)
