Starter/Generator Control Module X4

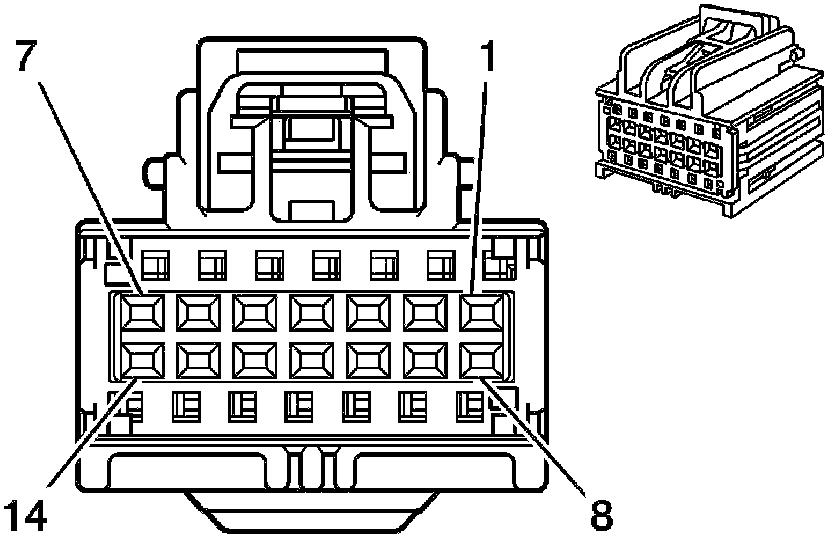

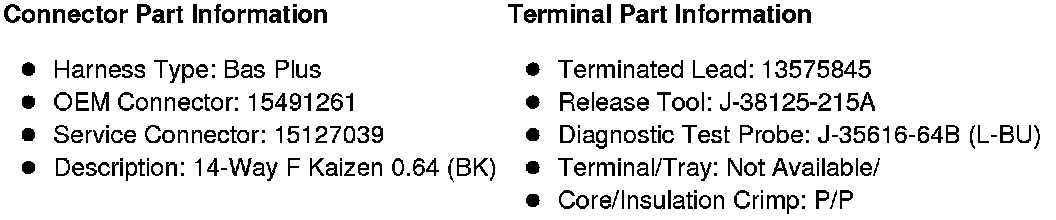

Component Connector End Views

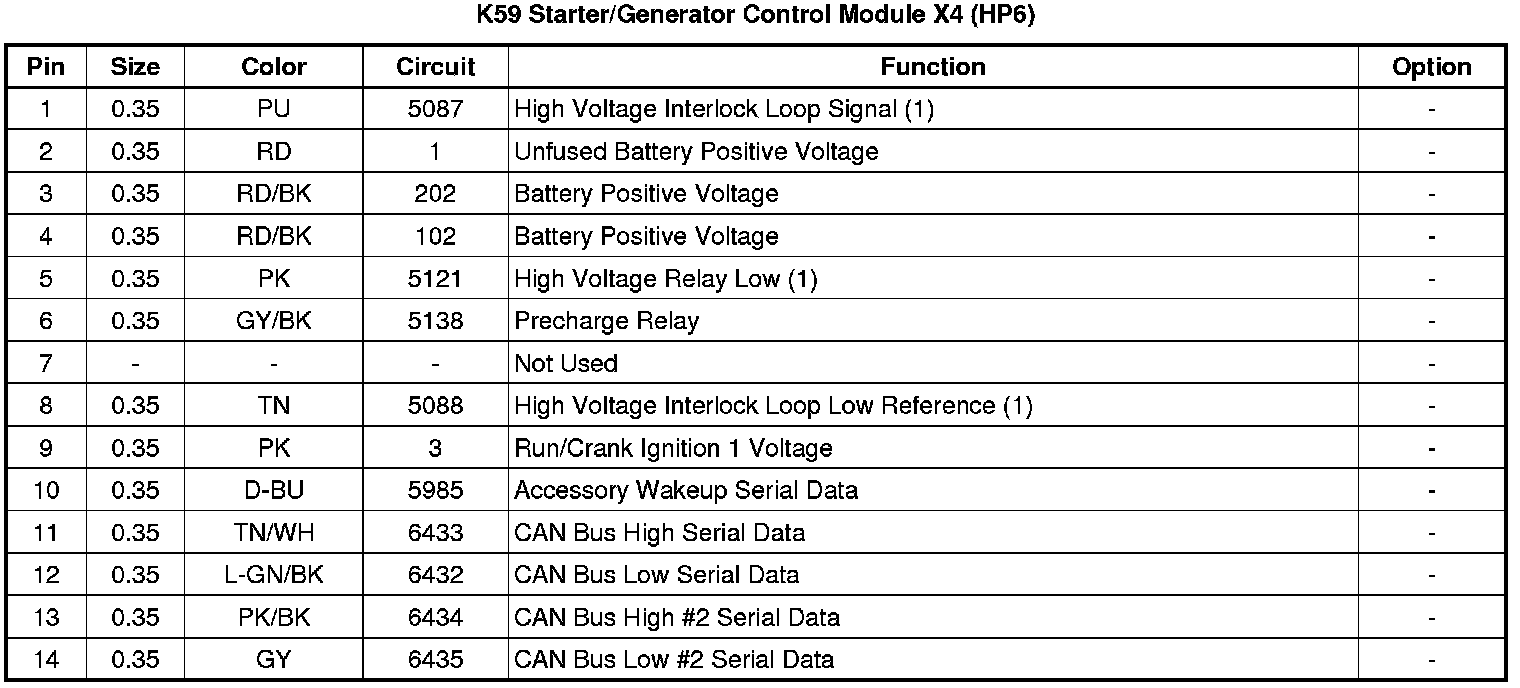

K59 Starter/Generator Control Module X4 (HP6)
