Starter/Generator Control Module X3

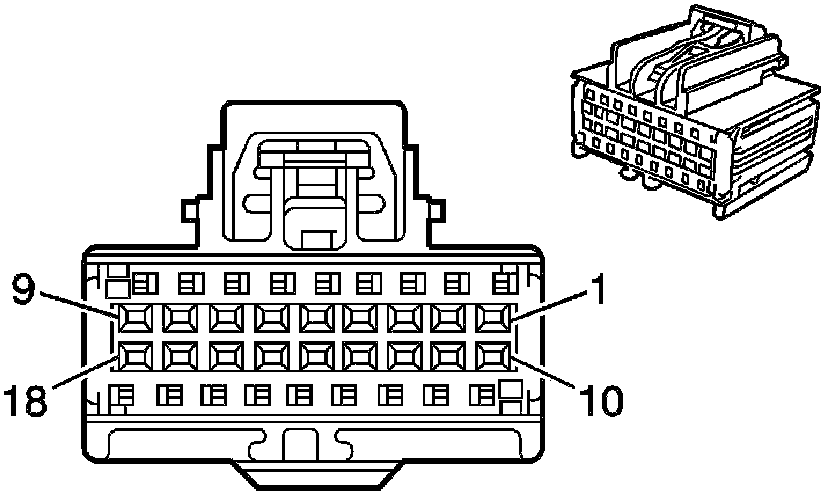

Component Connector End Views

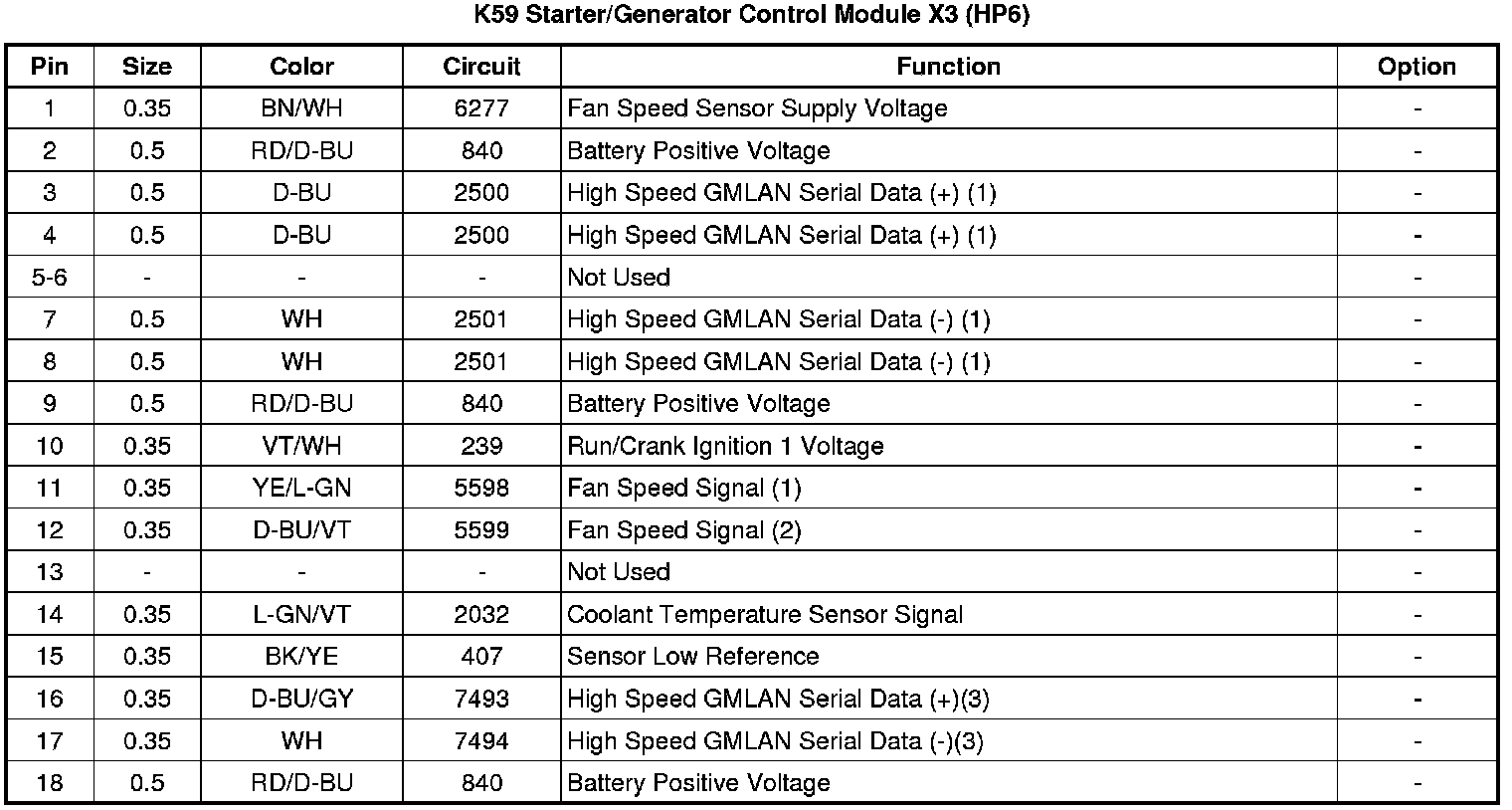

K59 Starter/Generator Control Module X3 (HP6)
