Home >> Buick >> 2012 >> Verano L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Battery Current Sensor >> Diagrams

Battery Current Sensor: Diagrams

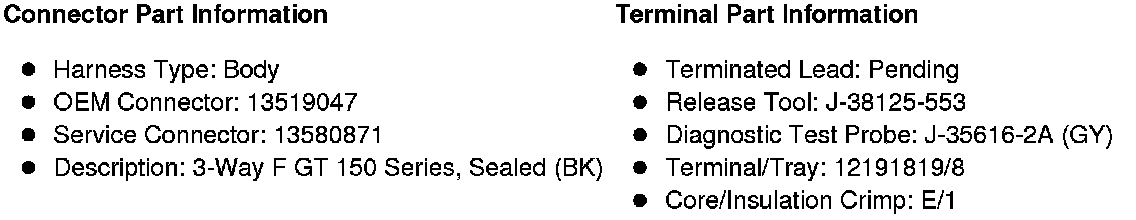

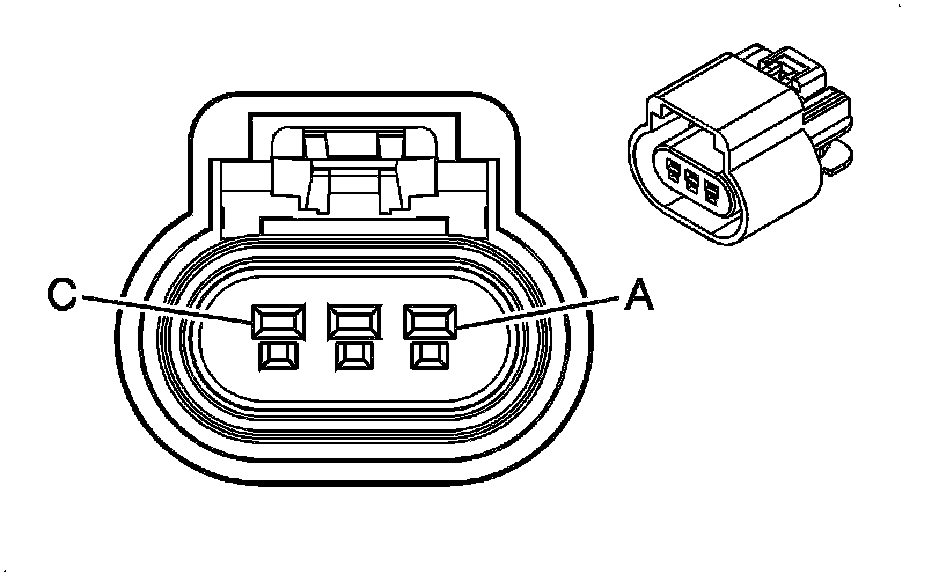

Component Connector End Views

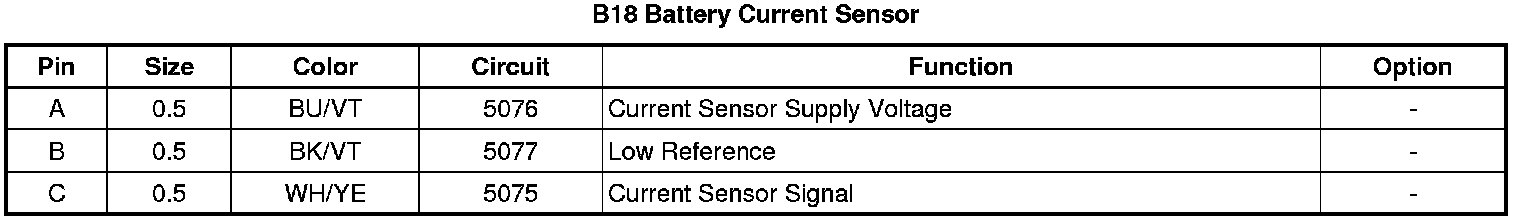

B18 Battery Current Sensor
