Home >> Buick >> 2012 >> Verano L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module >> Power Steering Control Module X2

Power Steering Control Module X2

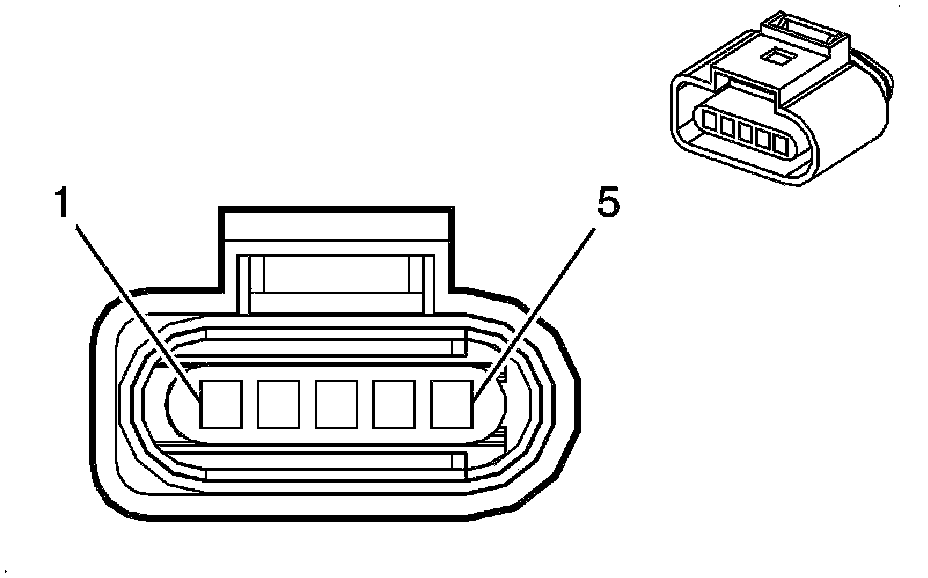

Component Connector End Views

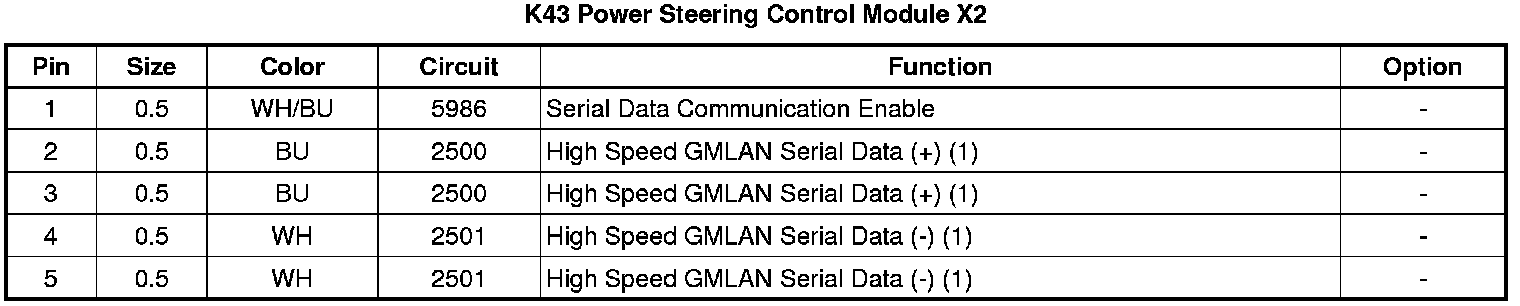

K43 Power Steering Control Module X2
