Home >> Buick >> 2012 >> Verano L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module >> Power Steering Control Module X1

Power Steering Control Module X1

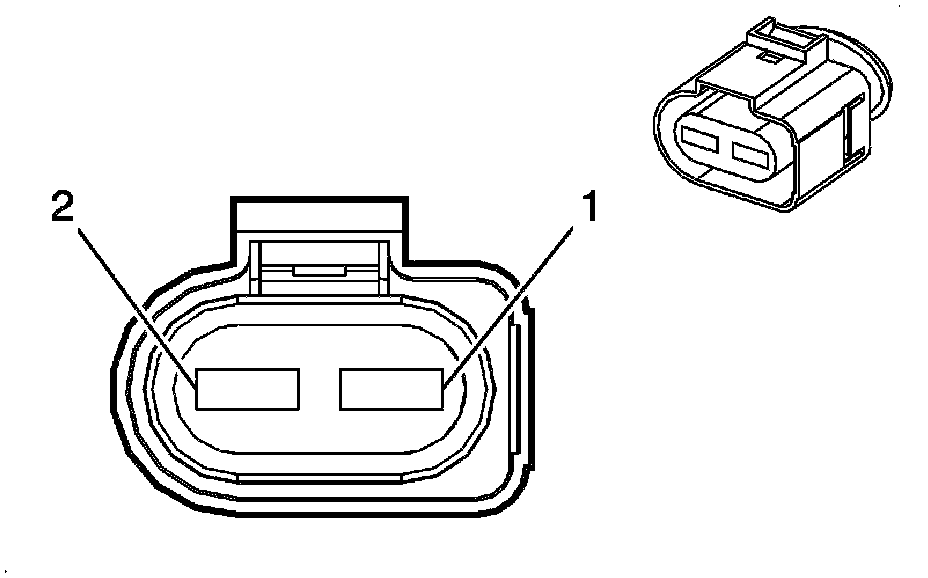

Component Connector End Views

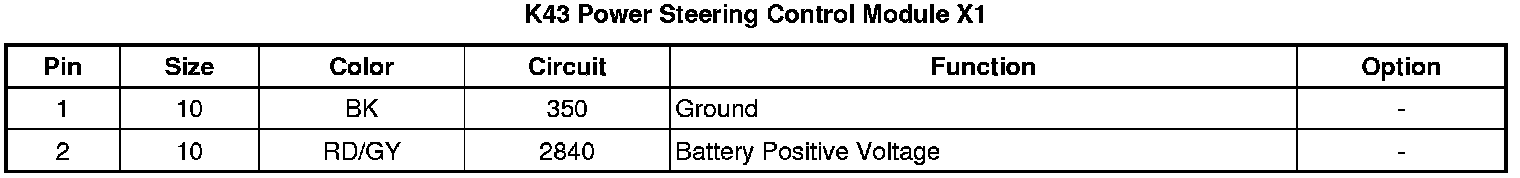

K43 Power Steering Control Module X1
