Seat Heating Control Module X2 (KA1)




Component Connector End Views

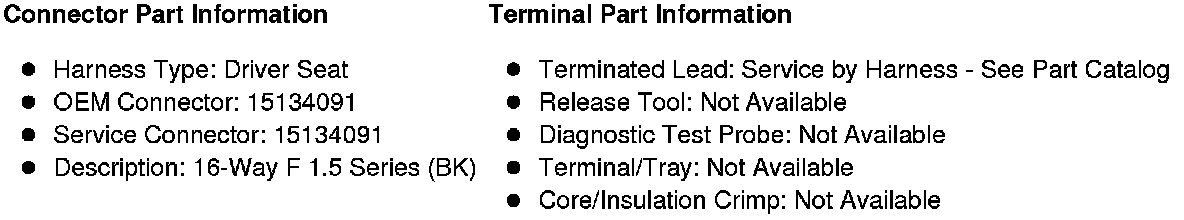

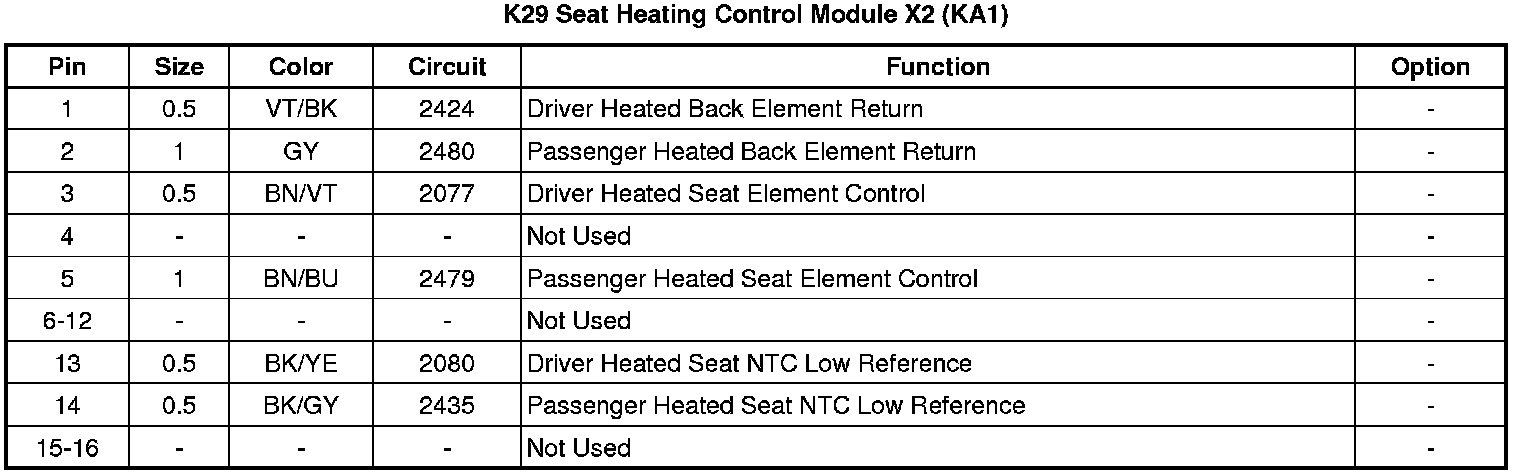

K29 Seat Heating Control Module X2 (KA1)
