Keyless Entry Control Module X4 (ATH)

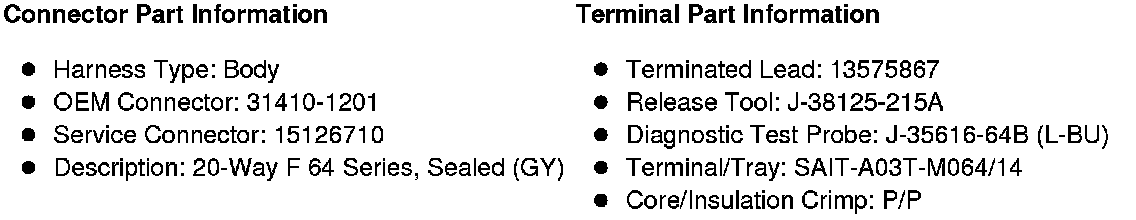

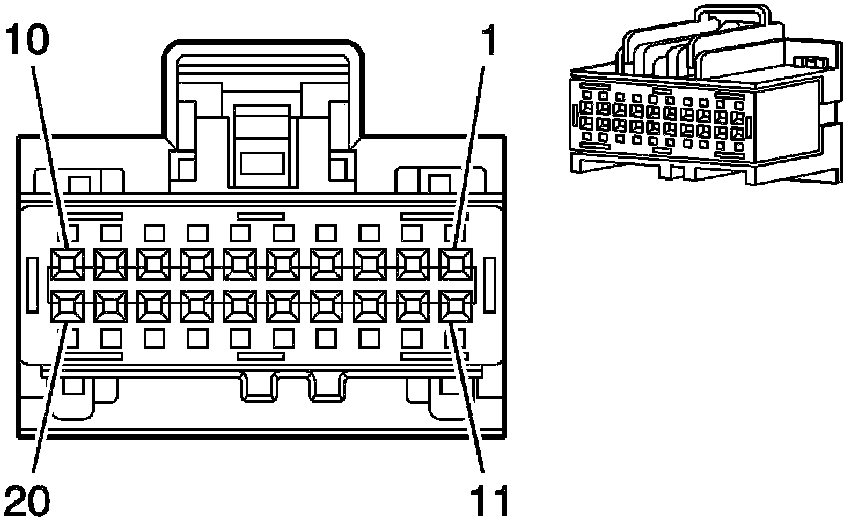

Component Connector End Views

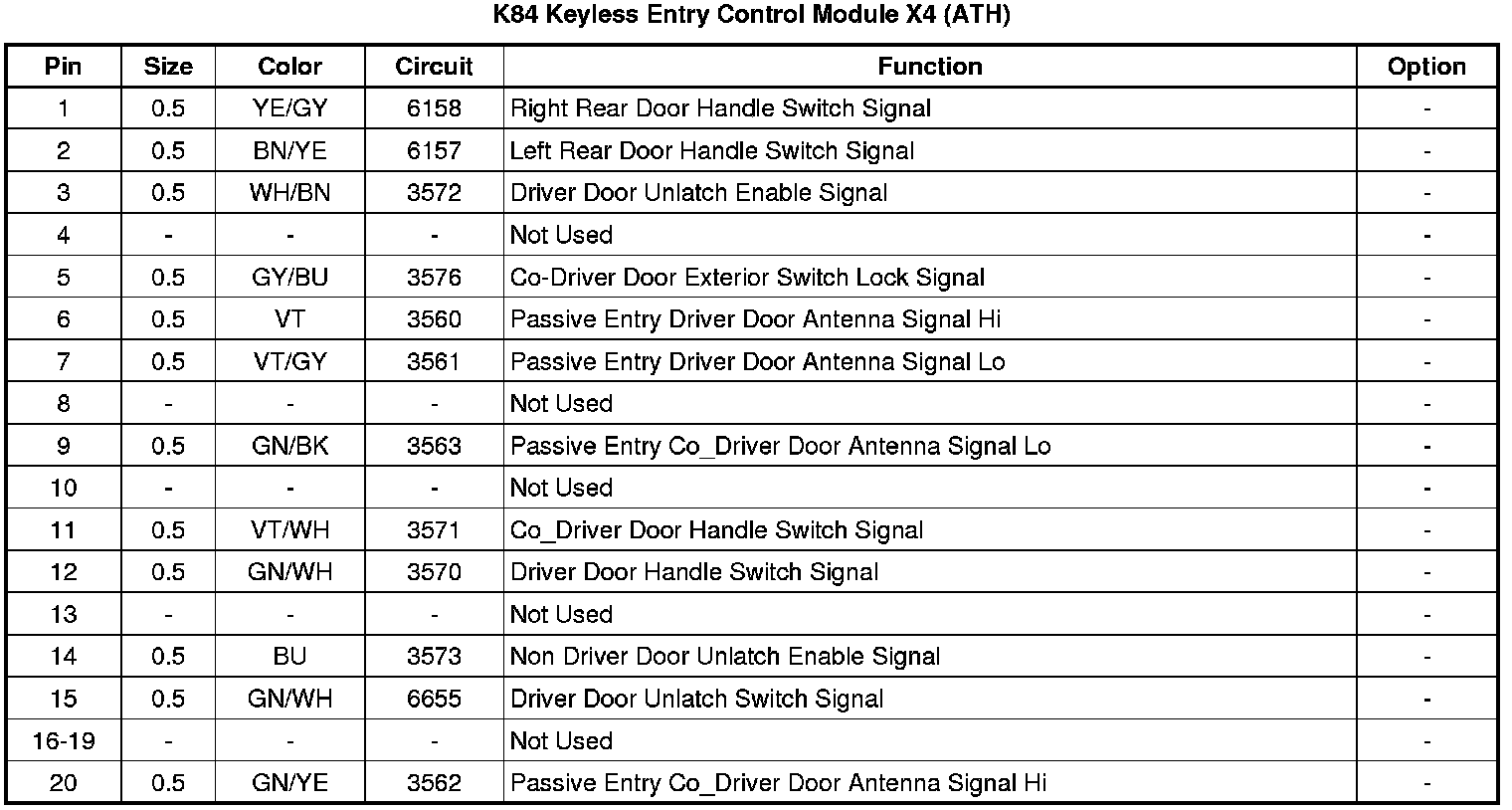

K84 Keyless Entry
Control Module
X4 (ATH)
