Parking Brake Control Module
Parking Brake Control Module

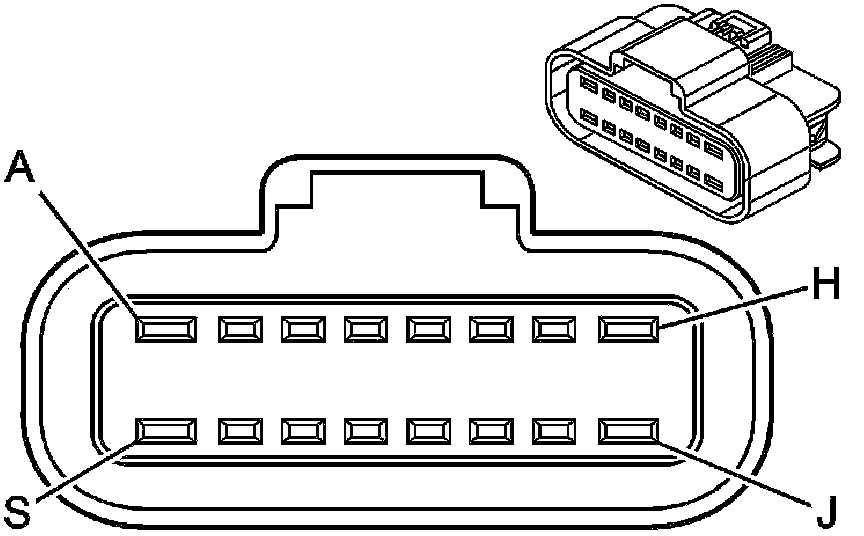

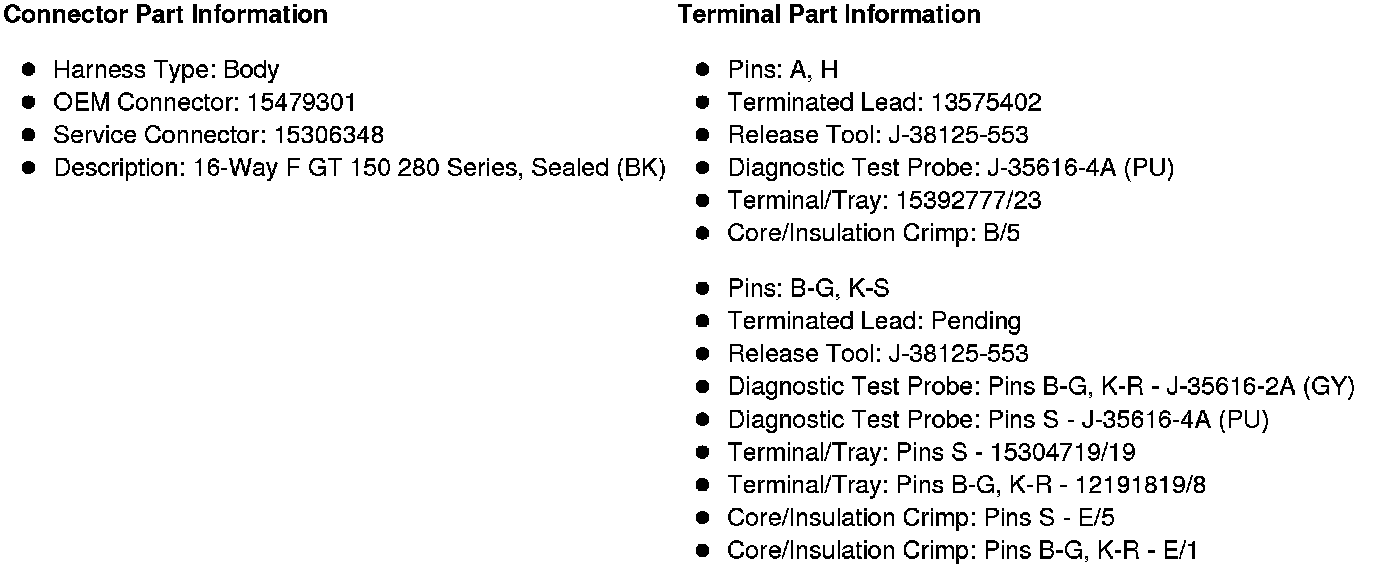

Component Connector End Views
K83

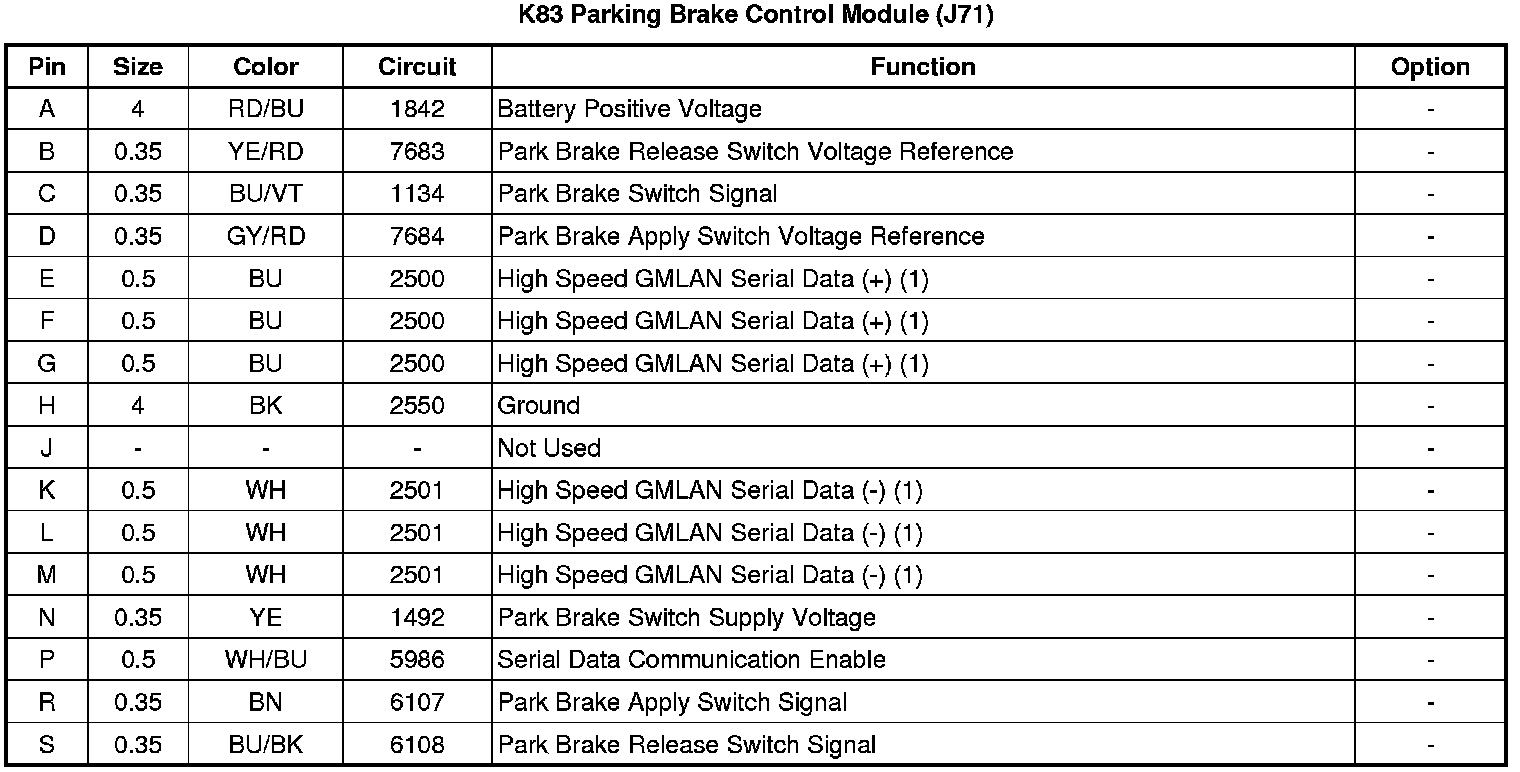

Parking Brake Control Module
(J71)
