Fogging Sensor, HVAC
Fogging Sensor, HVAC

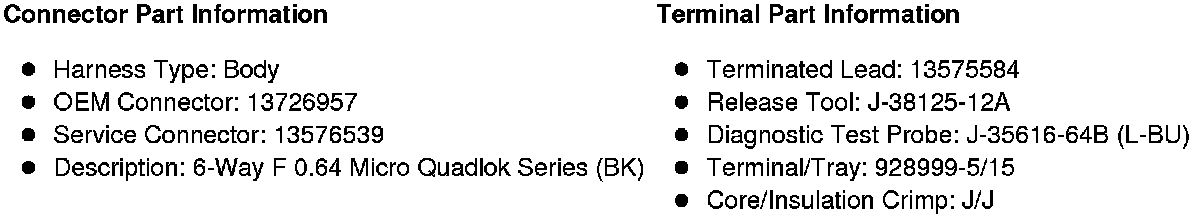

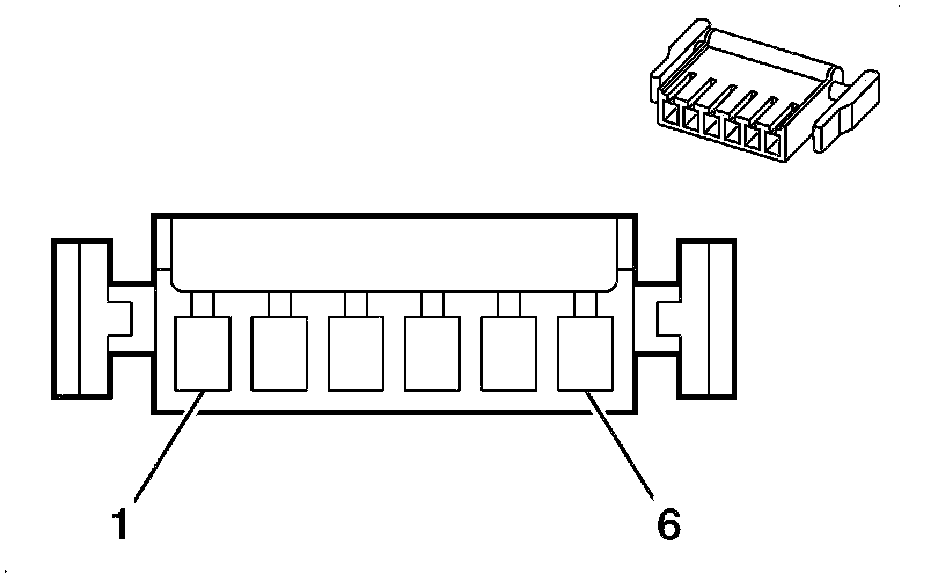

Component Connector End Views

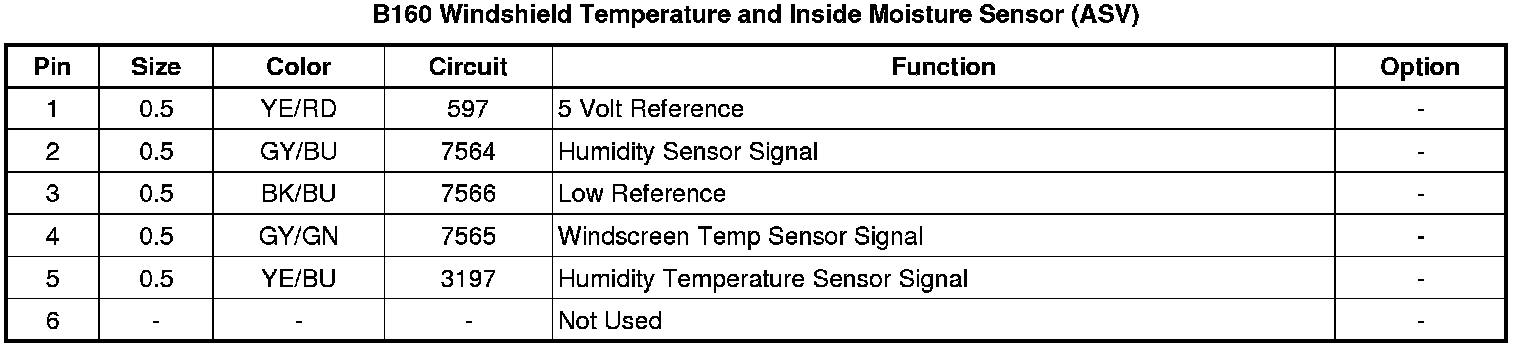

B160 Windshield Temperature and Inside Moisture Sensor (ASV)
