Home >> Buick >> 2012 >> Verano L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

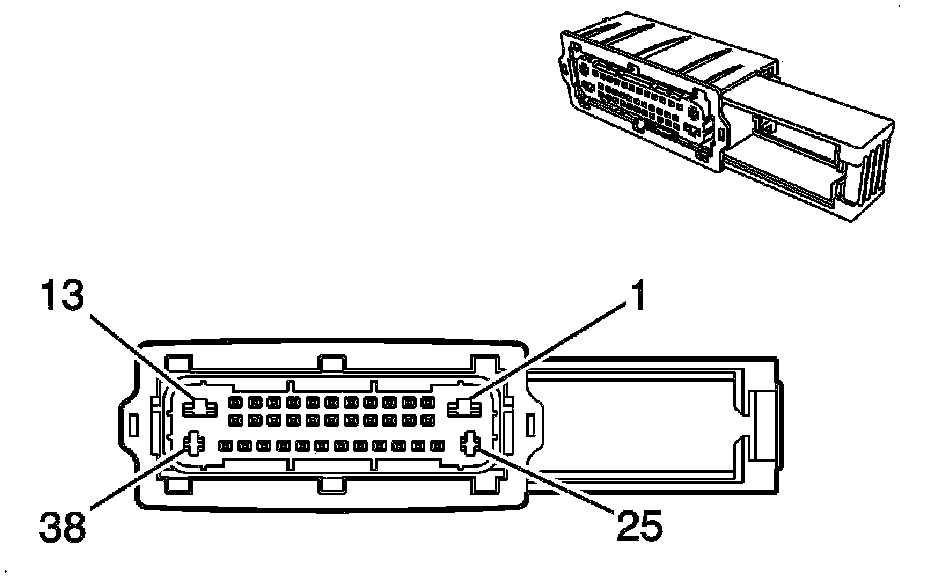

Component Connector End Views

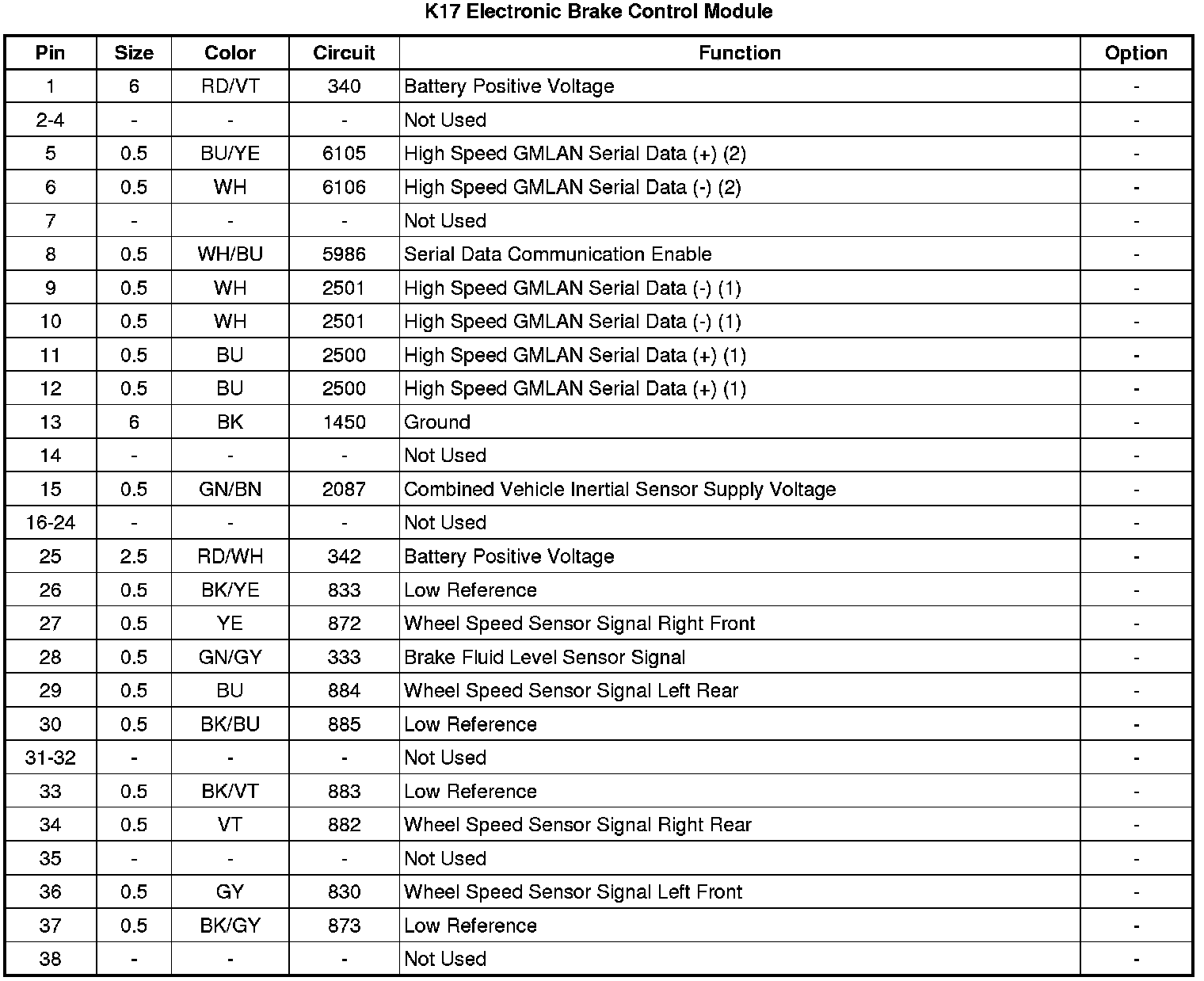

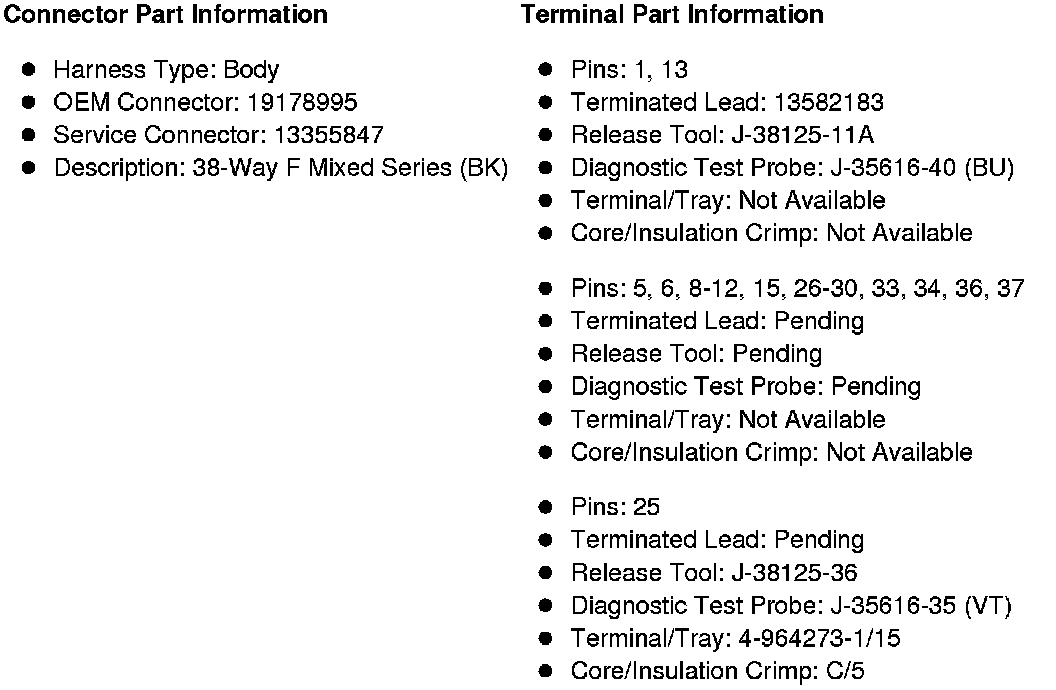

K17 Electronic Brake Control Module
