Buick
>>
2012
>>
Verano L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Console
Console

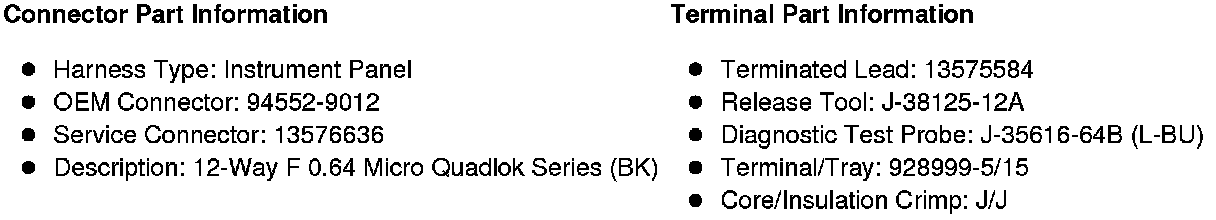

Component Connector End Views

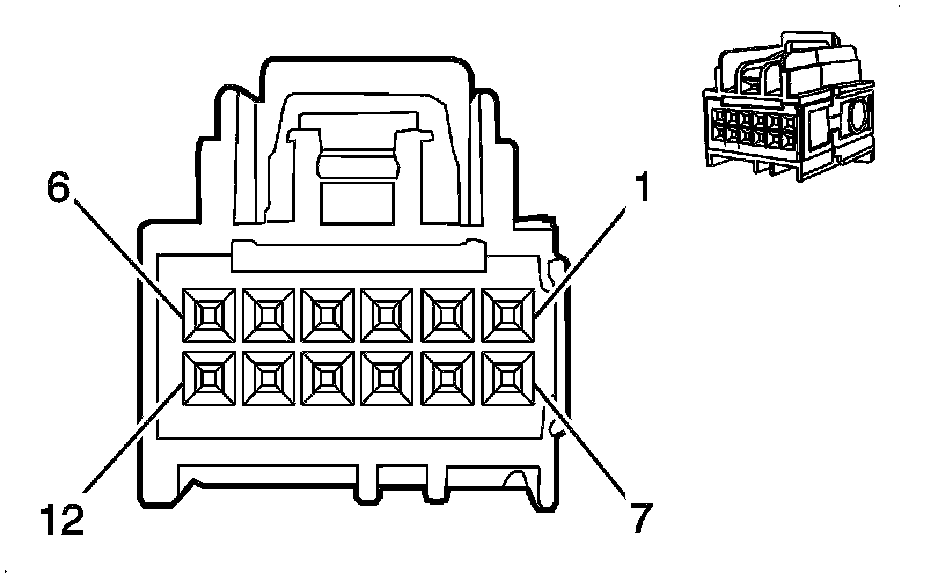

S48A Multifunction Switch - Instrument Panel
