Collision Avoidance Sensor
>>
Rear Object Sensor - Left Middle
Rear Object Sensor - Left Middle

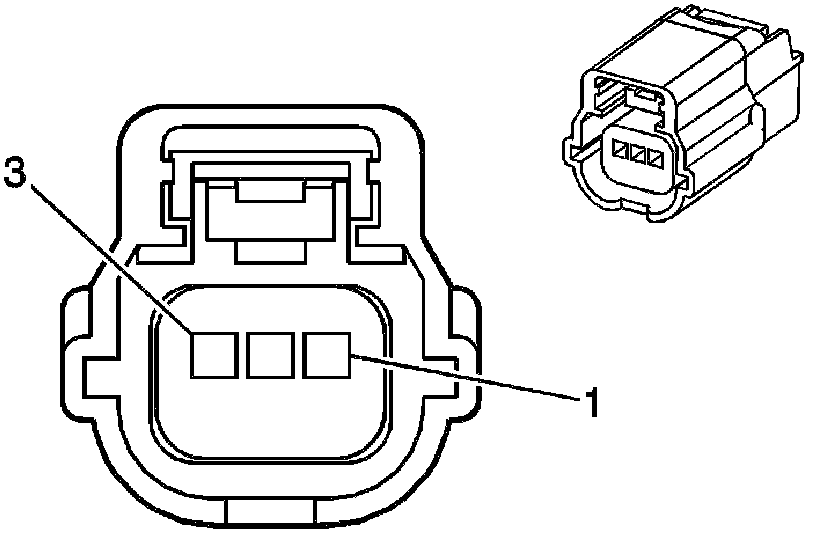

Component Connector End Views

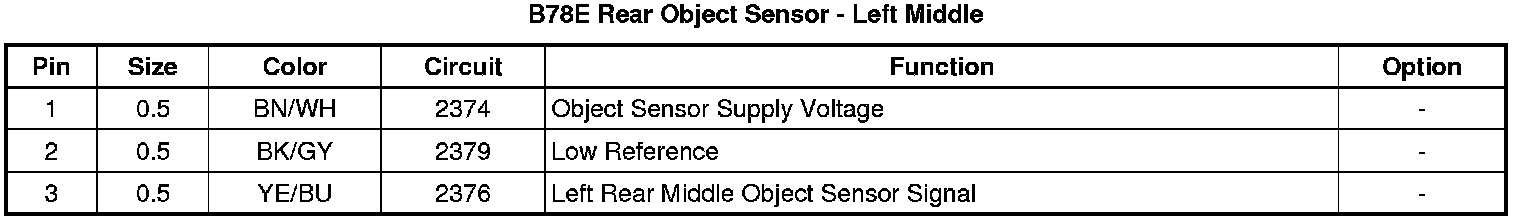

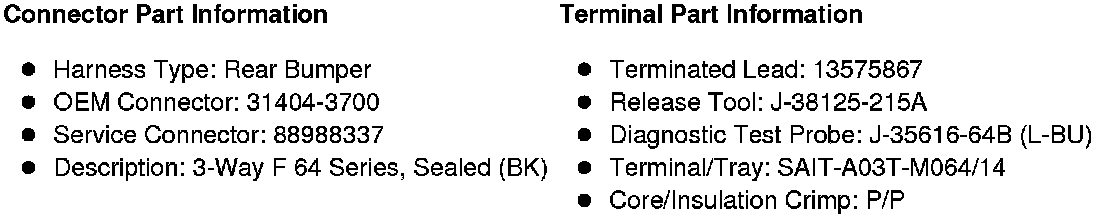

B78E Rear Object Sensor - Left Middle
