Home >> Buick >> 2012 >> Verano L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Central Control Module >> Telematics Communication Interface Control Module X2 (UE1)

Telematics Communication Interface Control Module X2 (UE1)

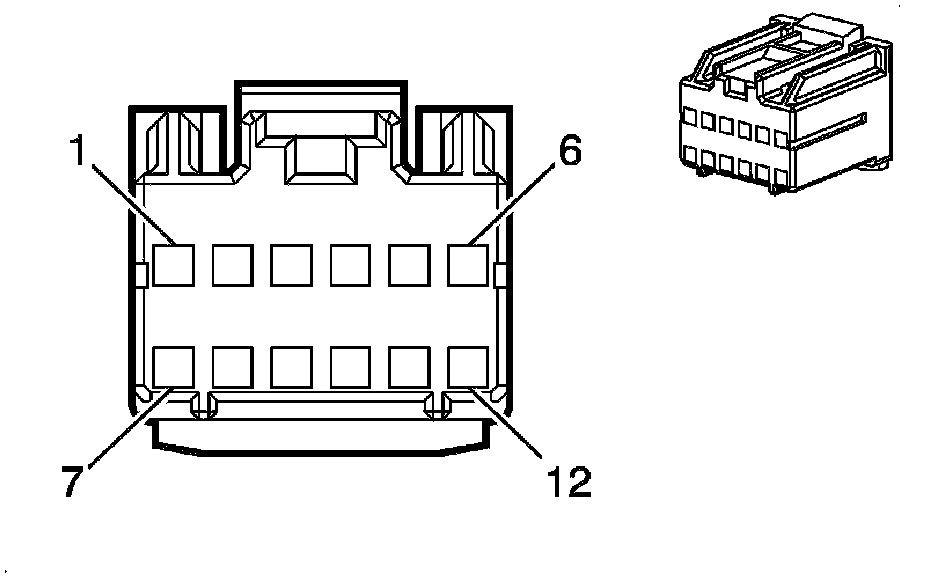

Component Connector End Views

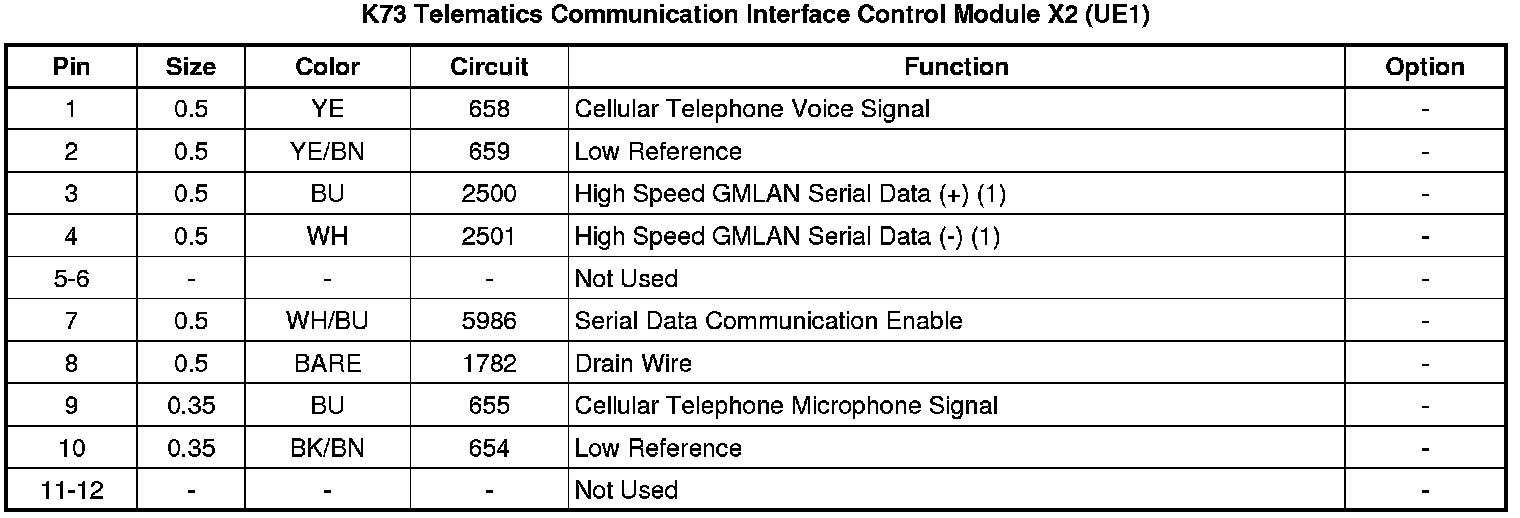

K73 Telematics Communication Interface Control Module X2 (UE1)
