Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

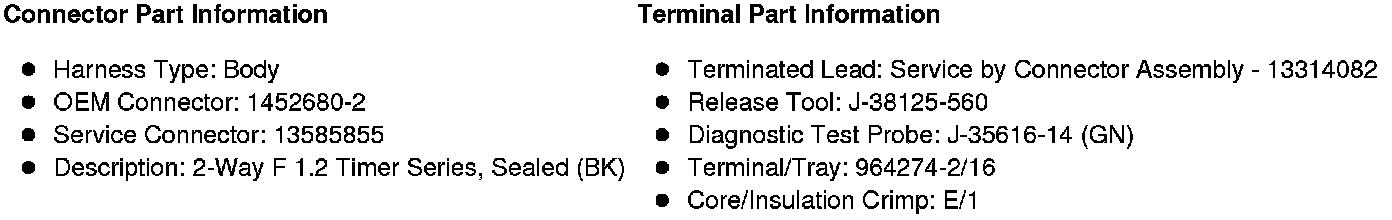

Component Connector End Views

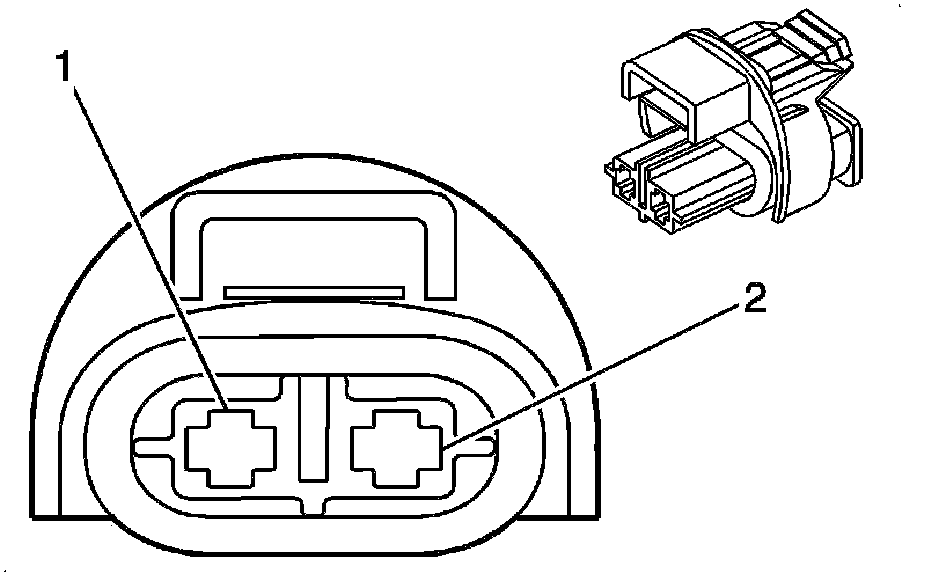

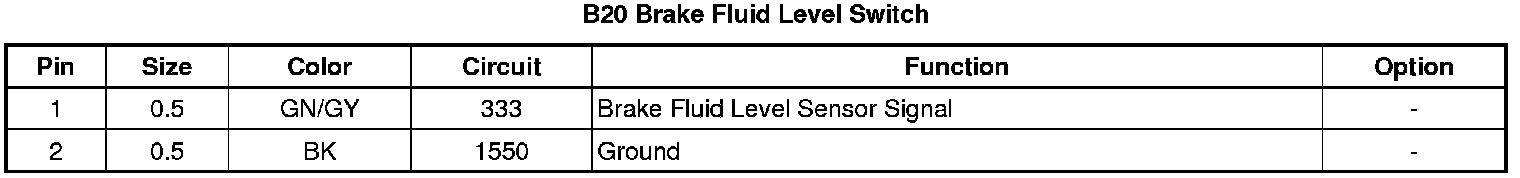

B20 Brake Fluid Level Switch
