Immobilizer Control Module (BTM)
Immobilizer Control Module (BTM)

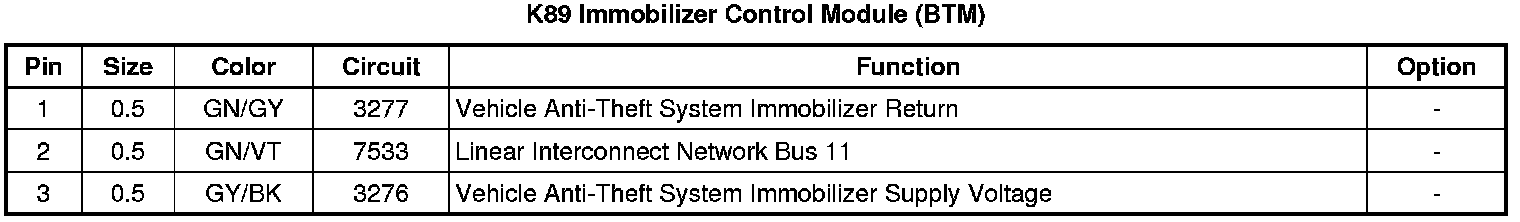

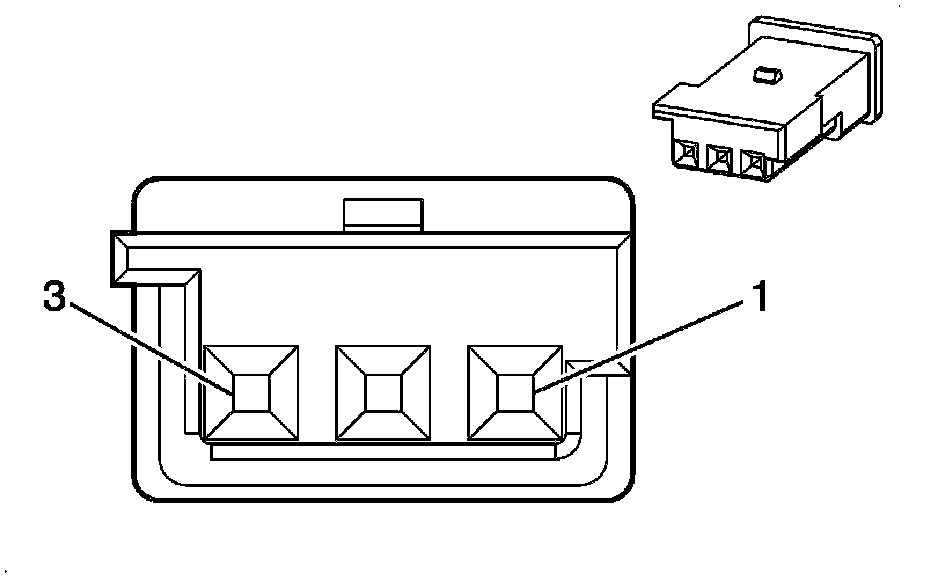

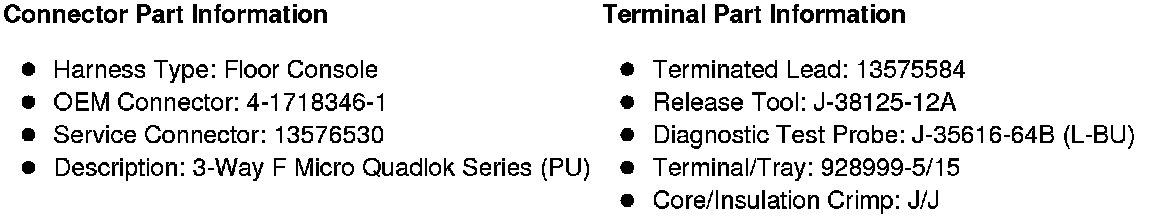

Component Connector End Views
K89 Immobilizer
Control Module
(BTM)
