Inflatable Restraint Sensing and Diagnostic Module X2
Inflatable Restraint Sensing and Diagnostic Module X2
Component Connector End Views

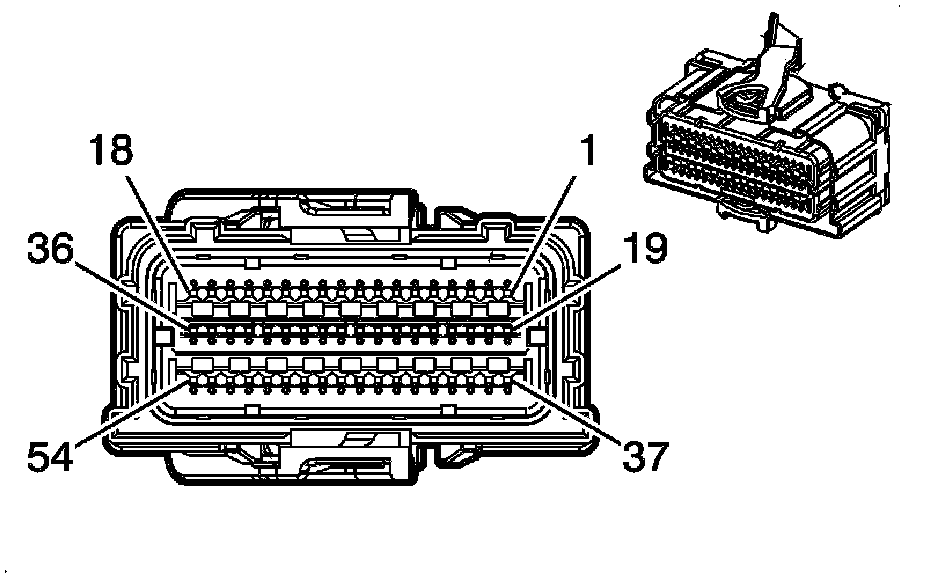

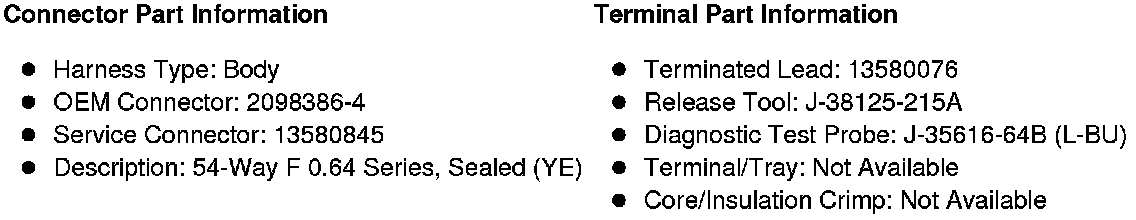

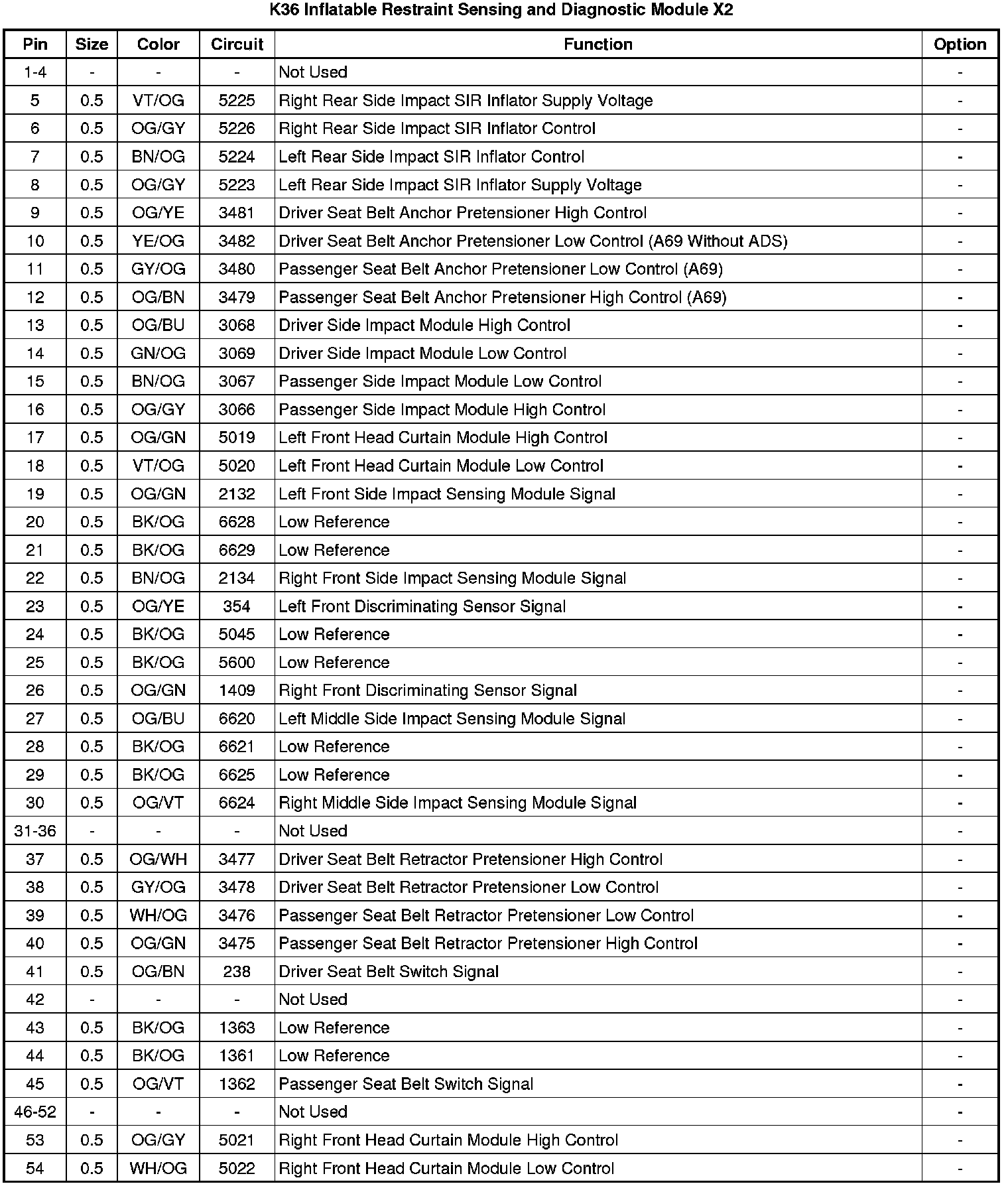

K36 Inflatable Restraint Sensing and Diagnostic Module X2
