Acceleration Sensor, Suspension Control

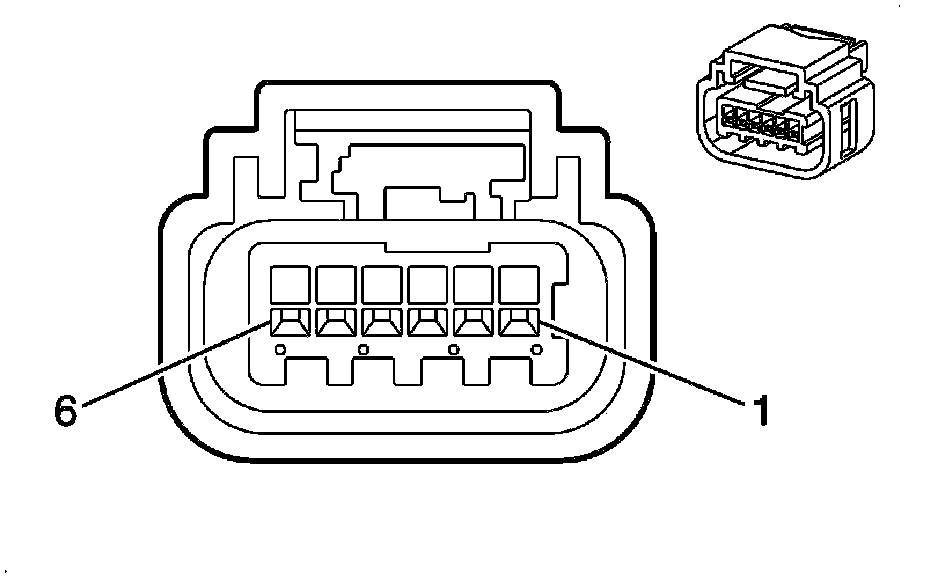

Component Connector End Views

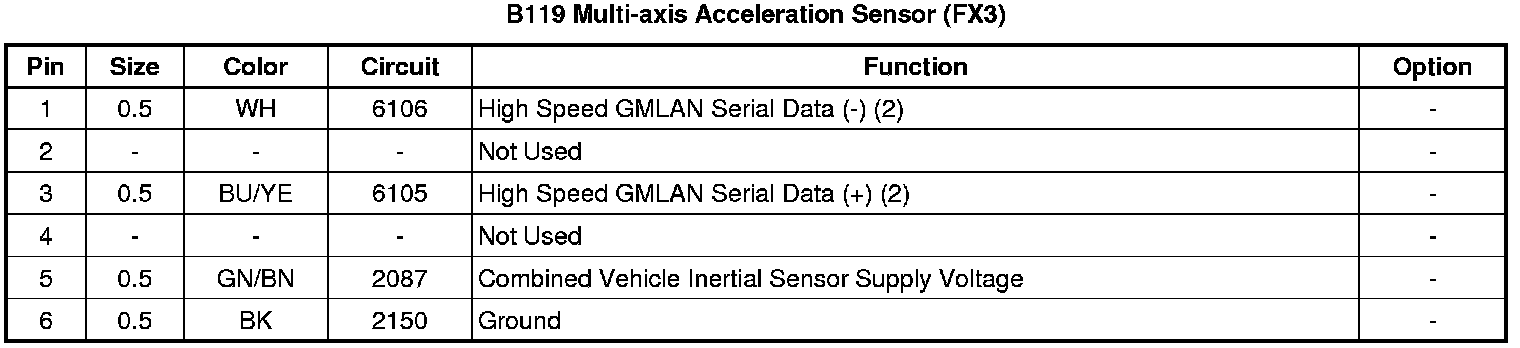

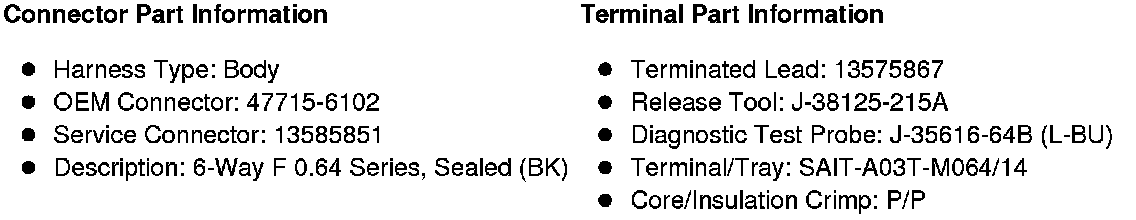

B119 Multi-axis
Acceleration Sensor
(FX3)
