Ignition Relay: Locations

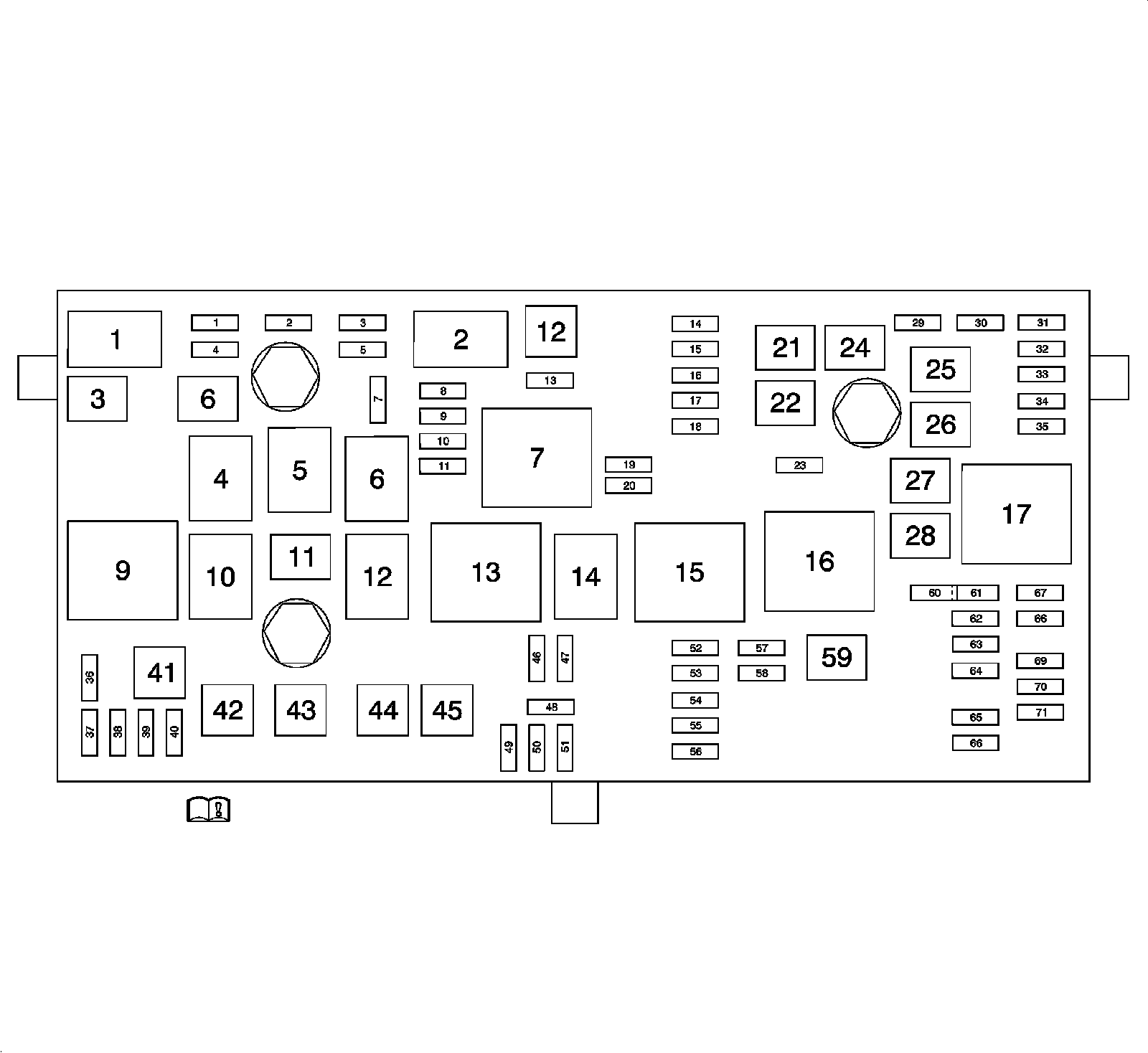

Electrical Center Identification Views

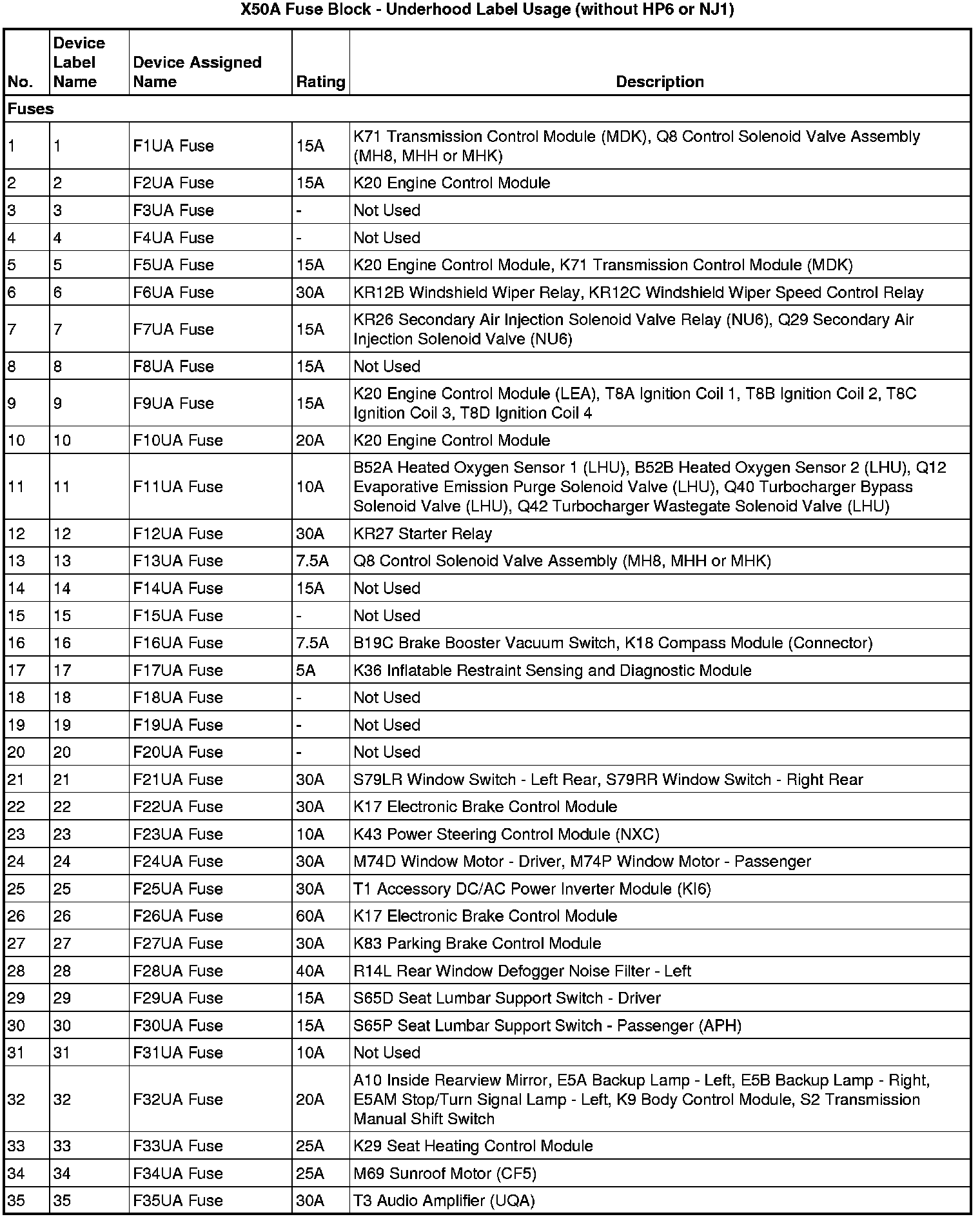

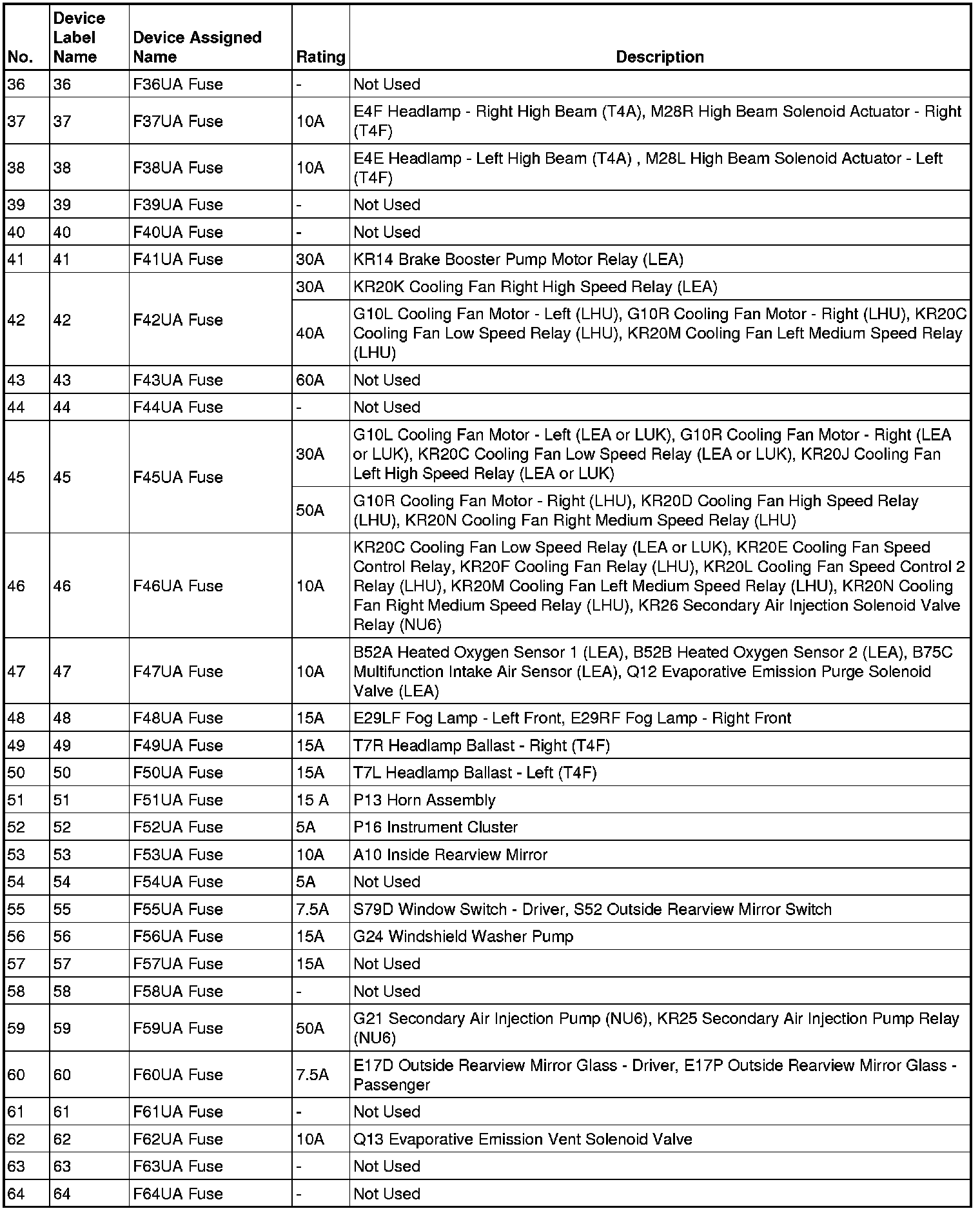

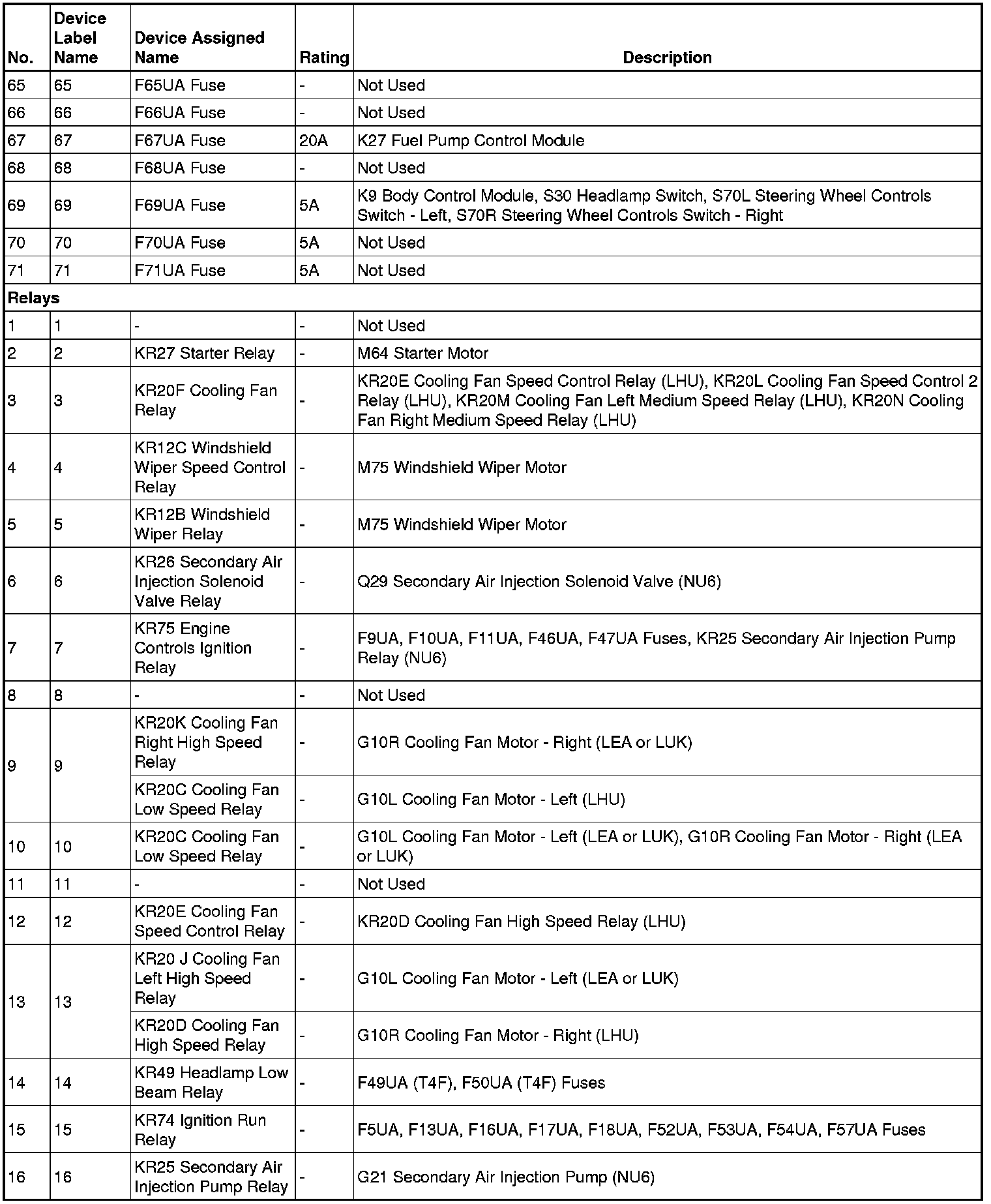

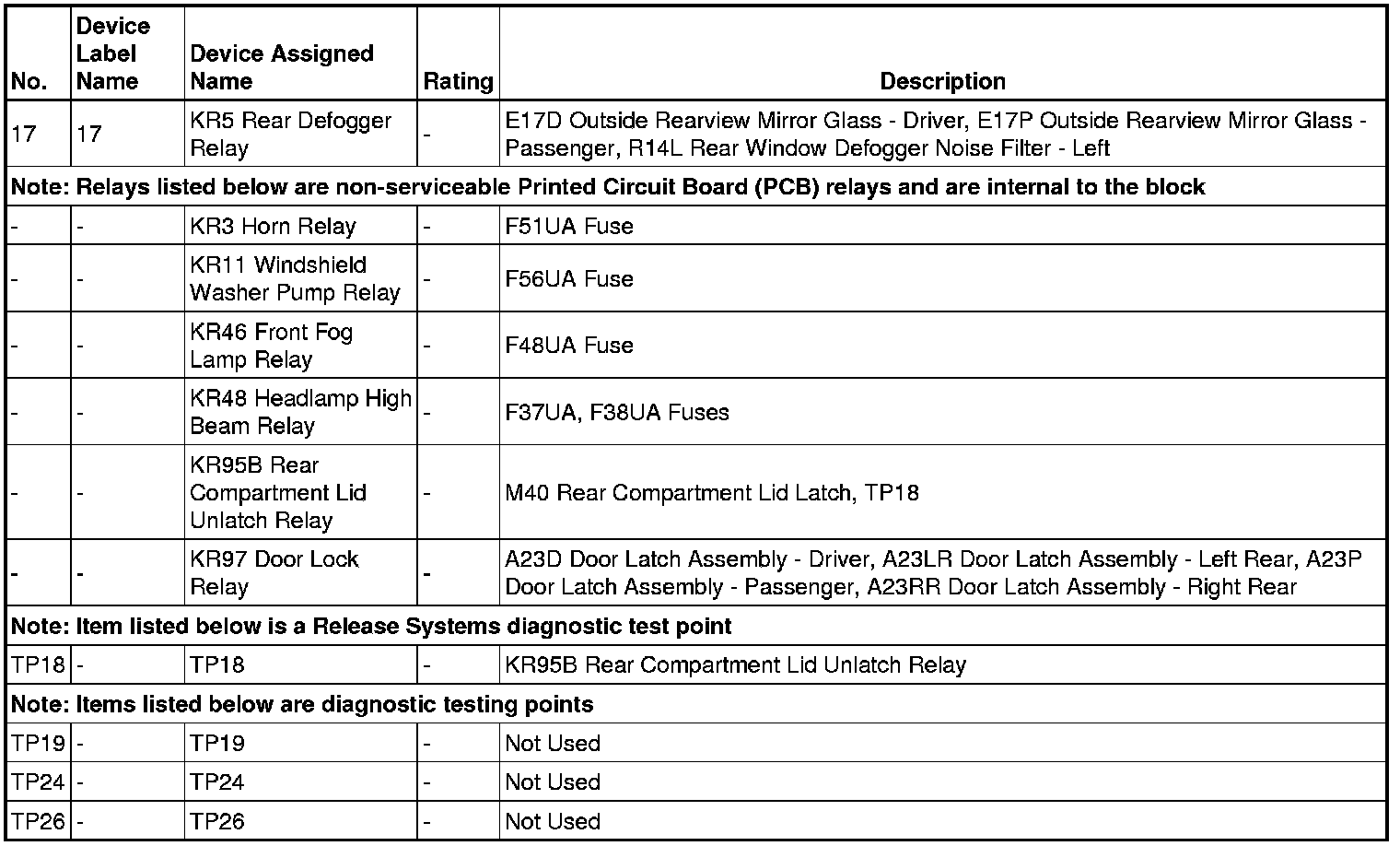

X50A Fuse Block - Underhood Label (without HP6 or NJ1)
