Air Flow Meter/Sensor: Locations

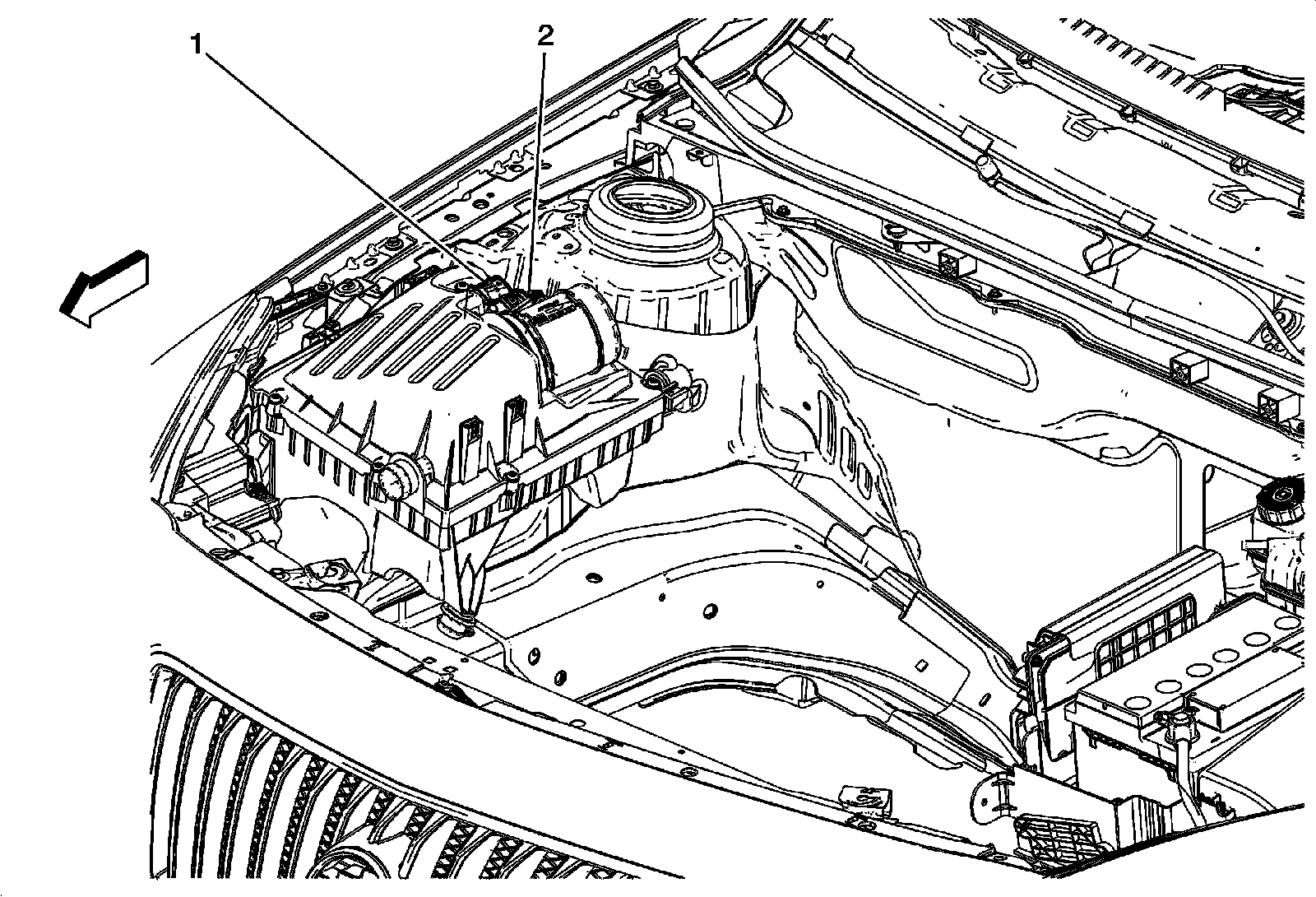

Front of Vehicle/Engine Compartment Component Views
Right Side of Engine Compartment Components
1 - B17 Barometric Pressure Sensor
2 - B75B Mass Air Flow/Intake Air Temperature Sensor
Front of Vehicle/Engine Compartment Component Views
Right Side of Engine Compartment Components
1 - B17 Barometric Pressure Sensor
2 - B75B Mass Air Flow/Intake Air Temperature Sensor
