Home >> Buick >> 2012 >> Regal L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module >> Power Steering Control Module X2 (NJ1)

Power Steering Control Module X2 (NJ1)

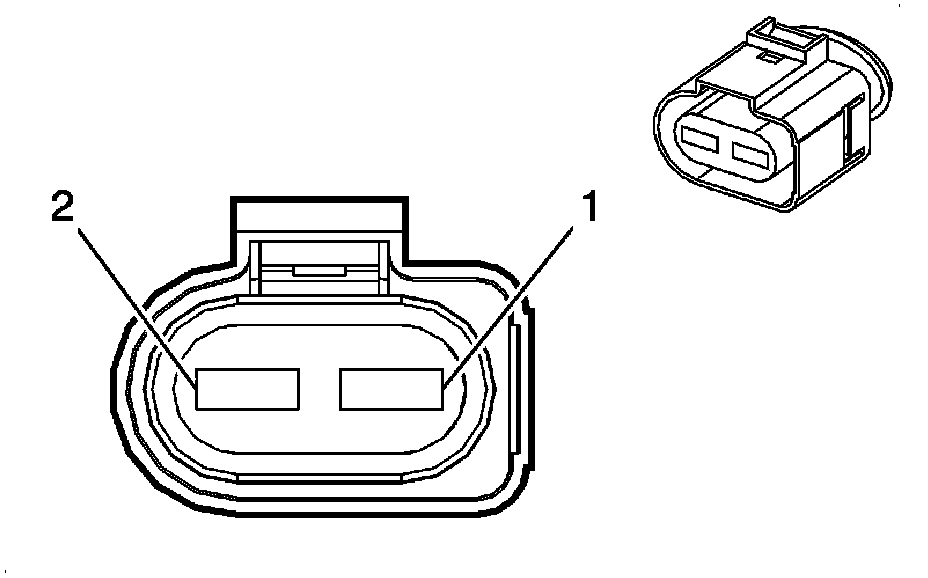

Component Connector End Views

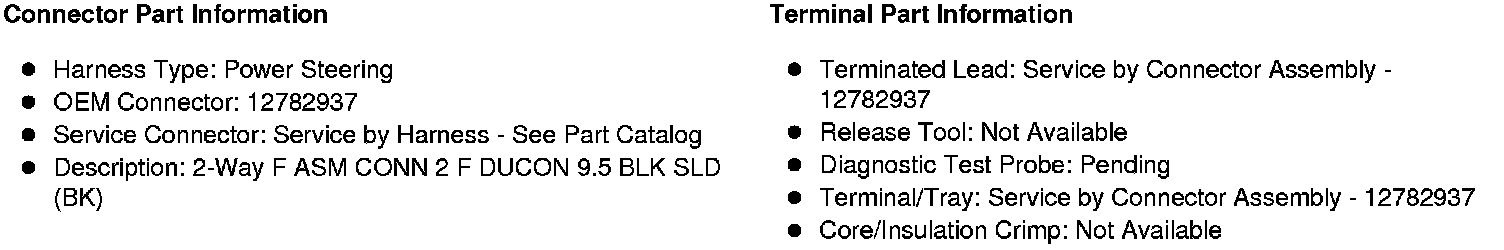

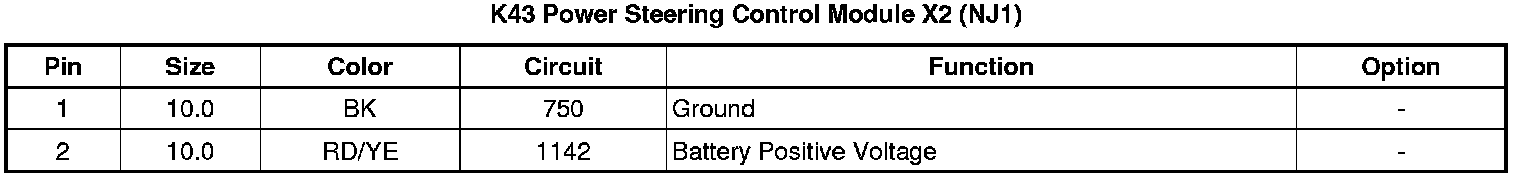

K43 Power Steering Control Module X2 (NJ1)
