Keyless Entry Control Module X1 (ATH)

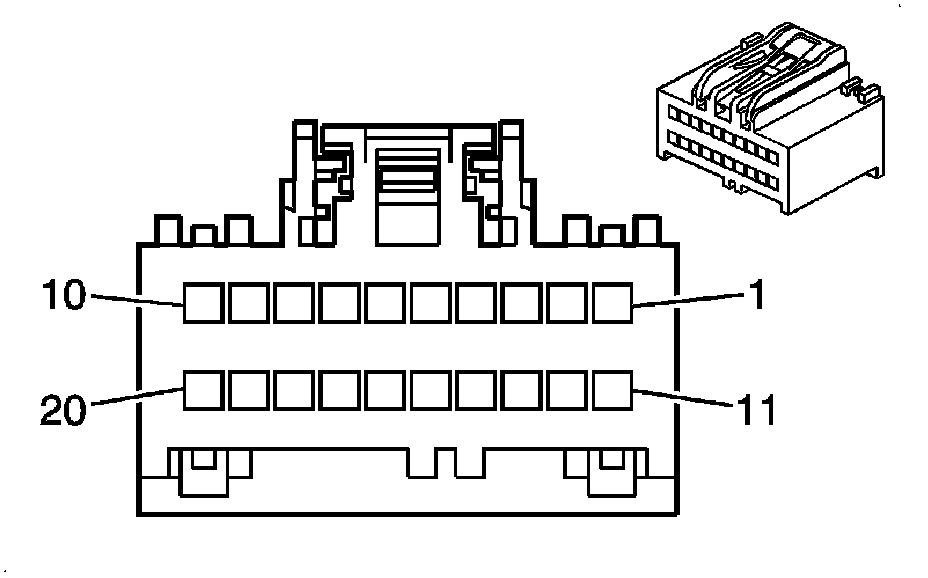

Component Connector End Views

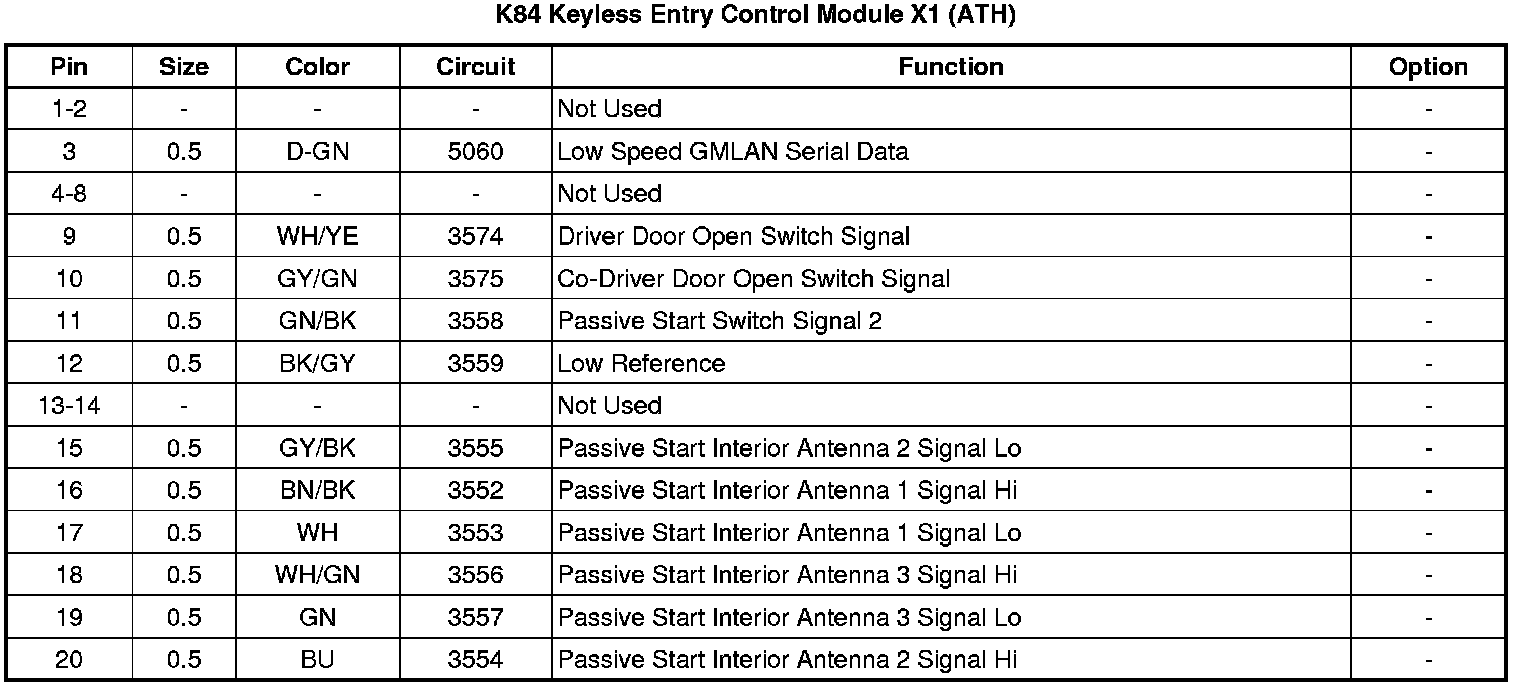

K84 Keyless Entry Control Module X1 (ATH)
