Buick
>>
2012
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
>>
Transmission Control Module X2 (MDK)
Transmission Control Module X2 (MDK)

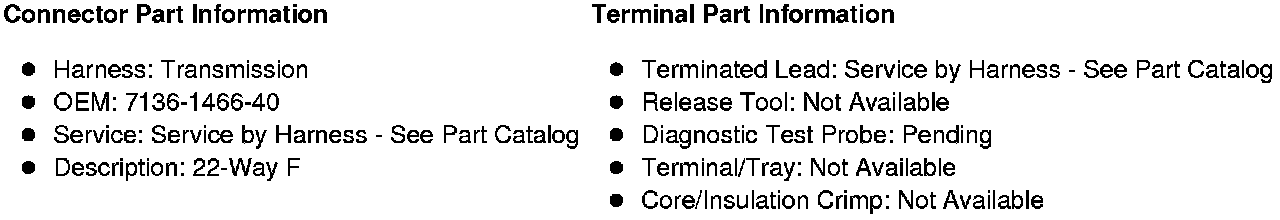

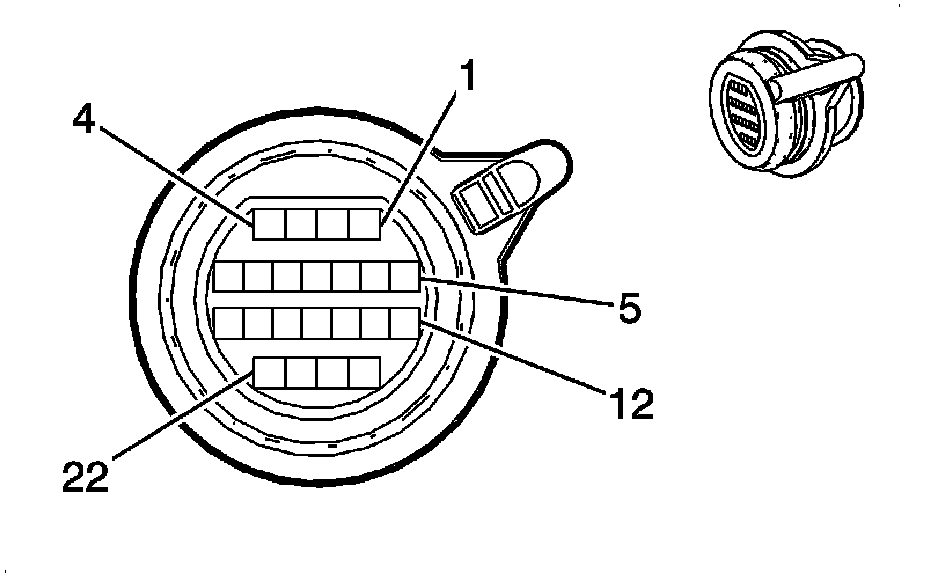

Component Connector End Views

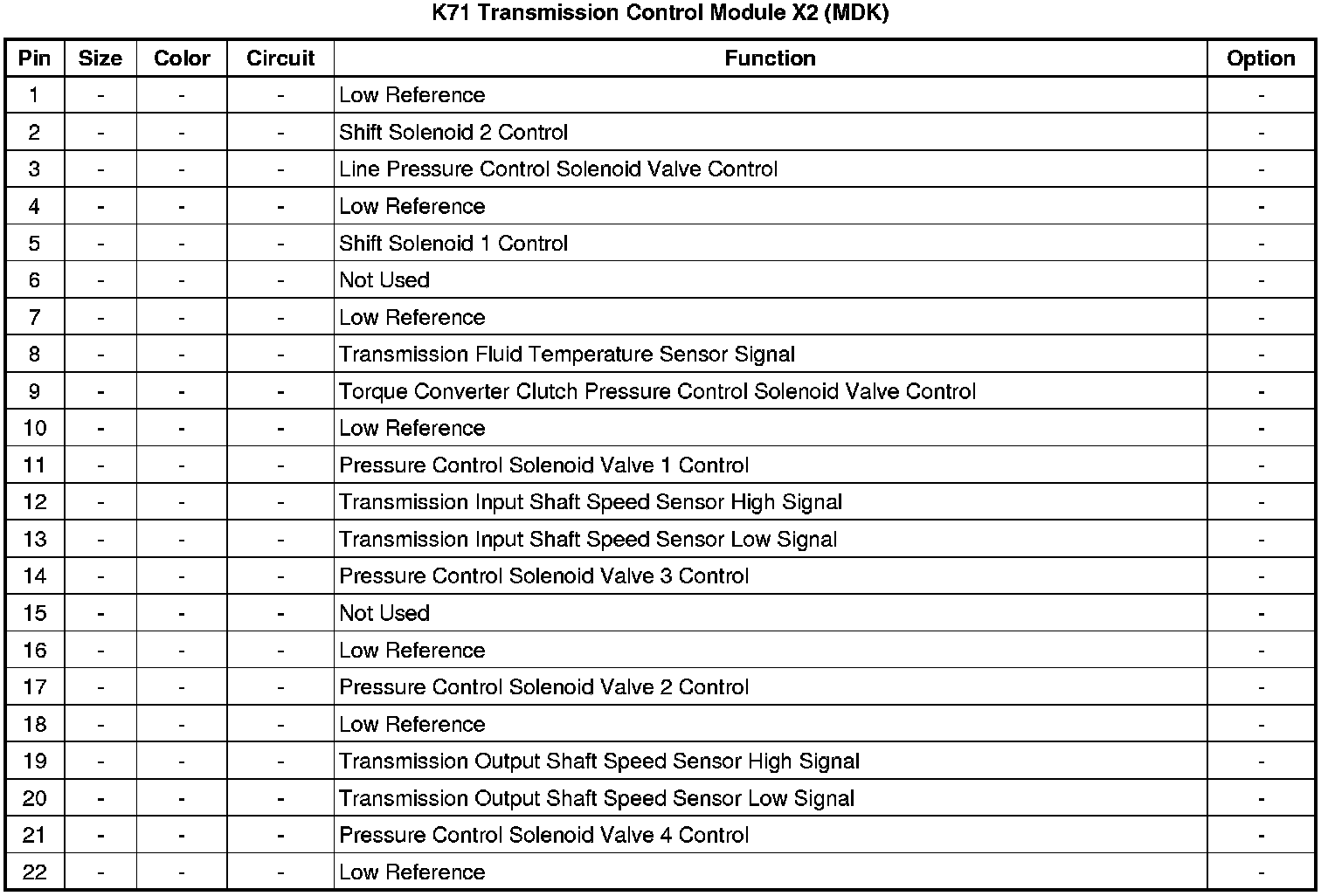

K71 Transmission Control Module X2 (MDK)
