Starter/Generator Control Module X2 (HP6)




Component Connector End Views

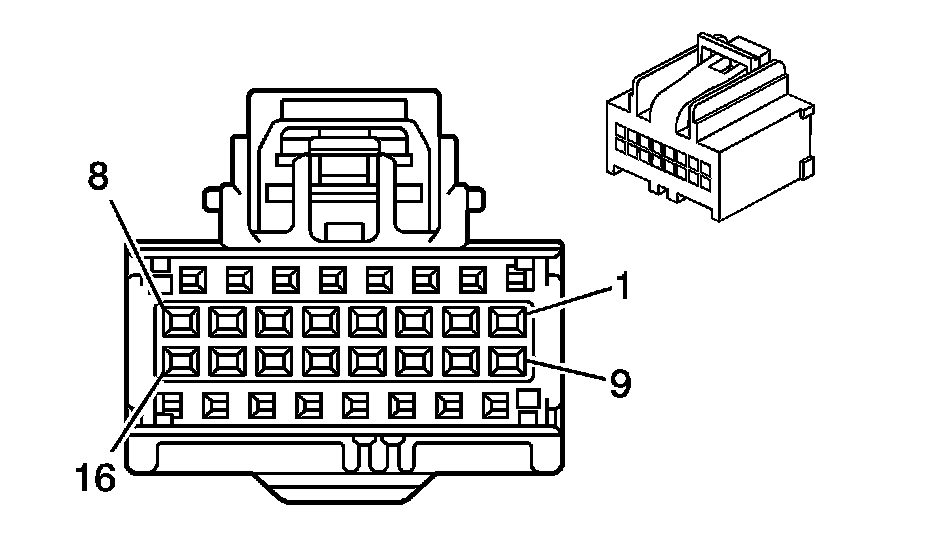

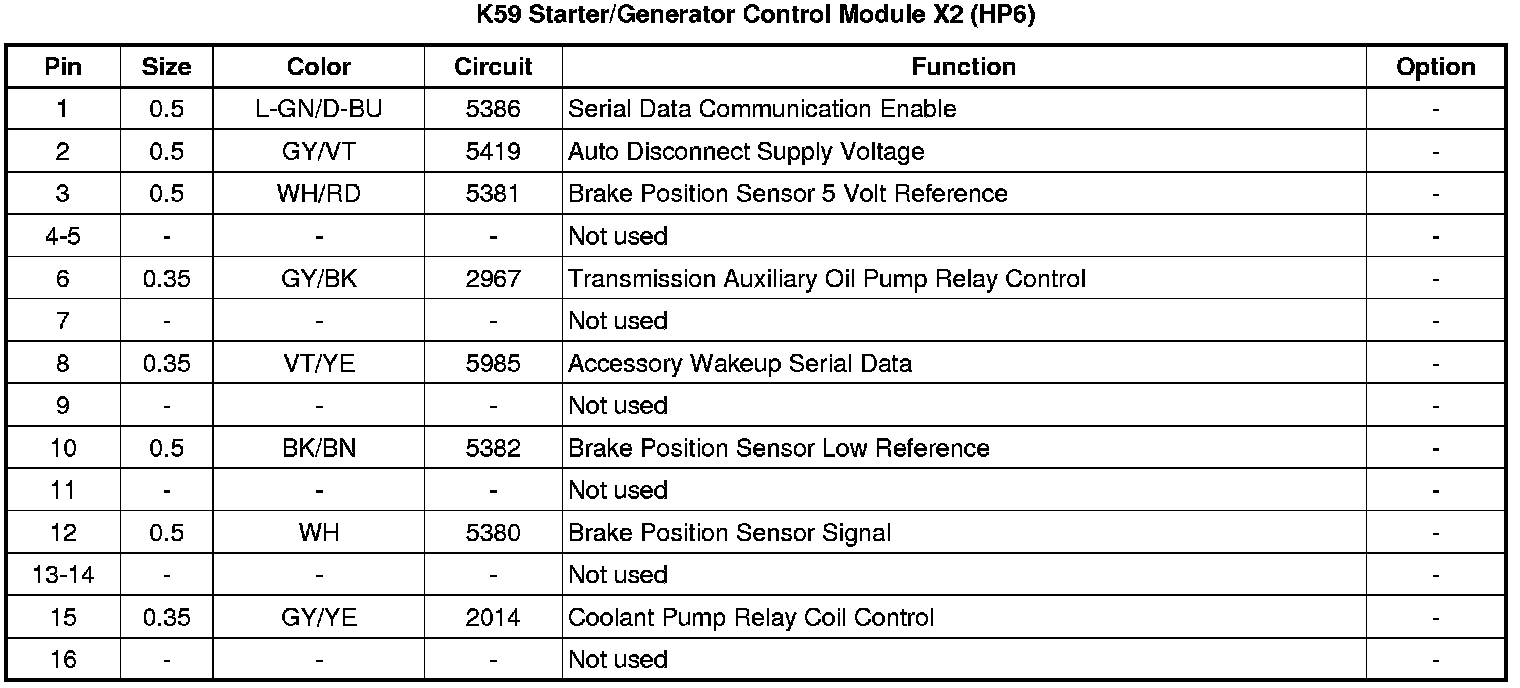

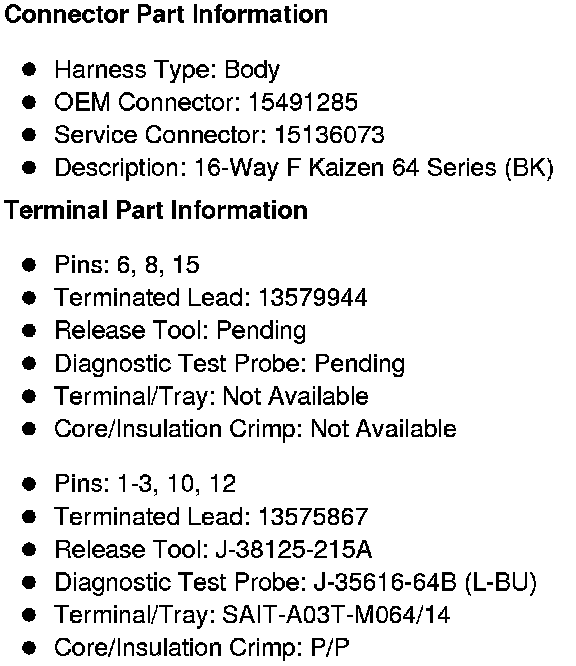

K59 Starter/Generator Control Module X2 (HP6)
