Starter/Generator Control Module Coolant Pump (HP6)

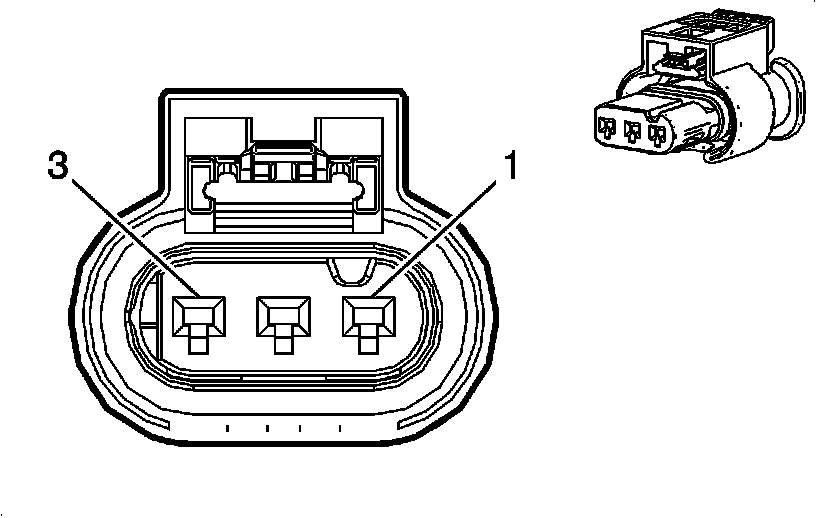

Component Connector End Views

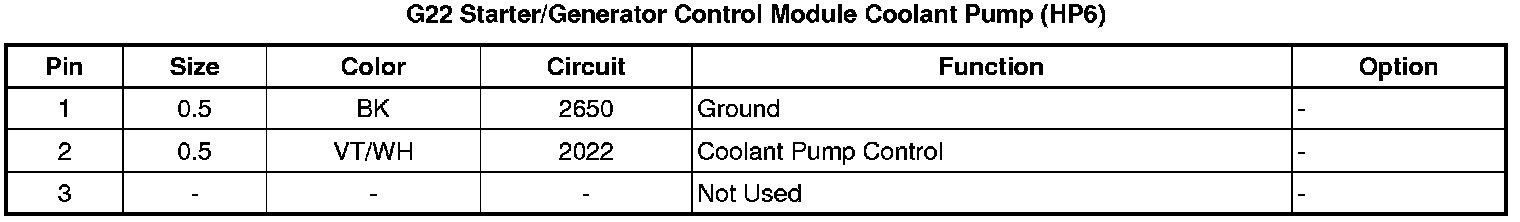

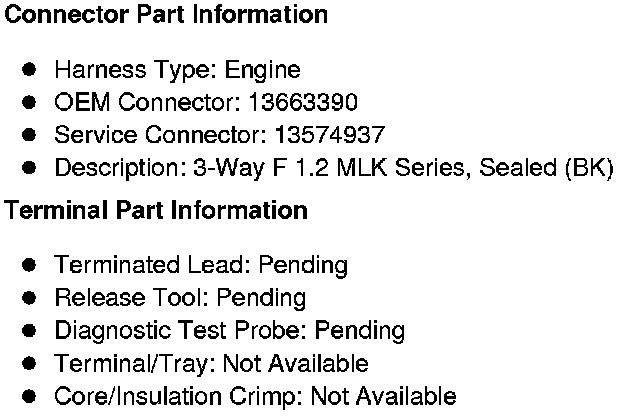

G22 Starter/Generator Control Module Coolant Pump (HP6)
