Telematics Communication Interface Control Module X2

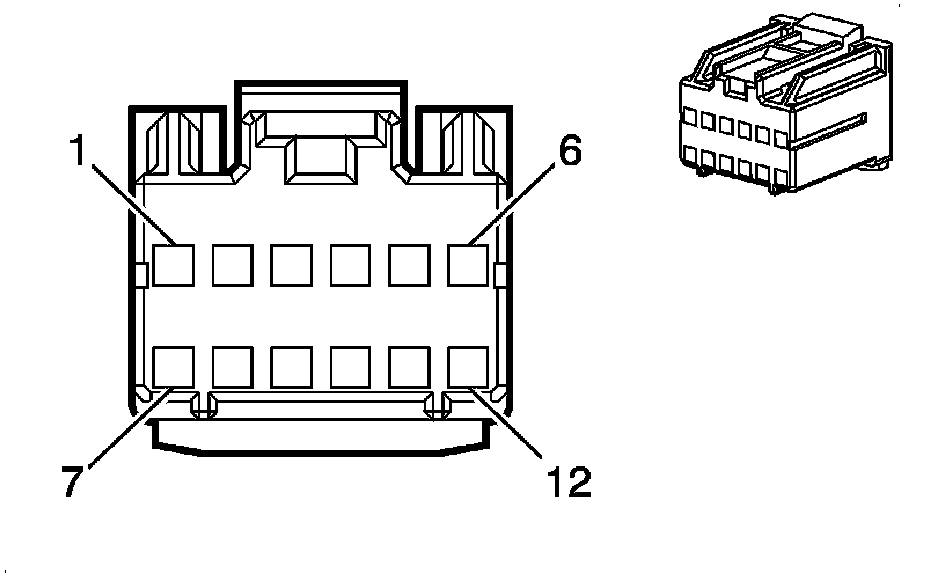

Component Connector End Views

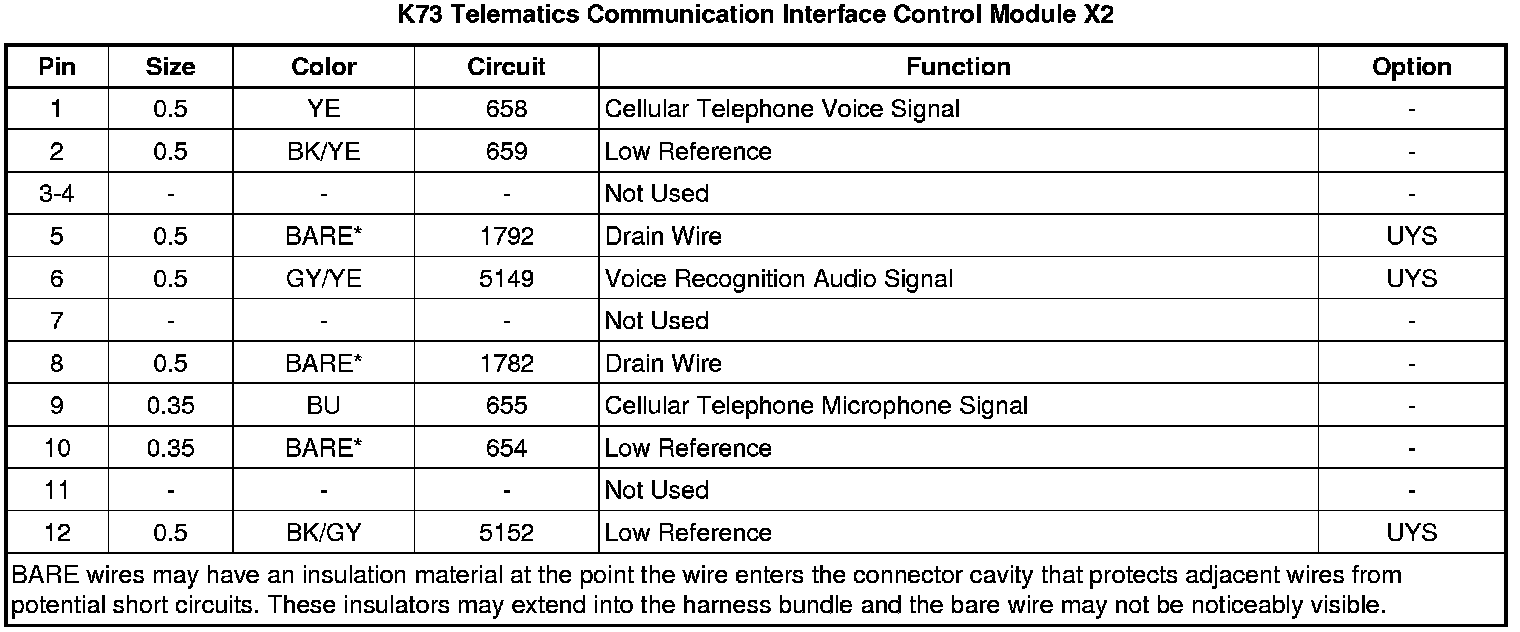

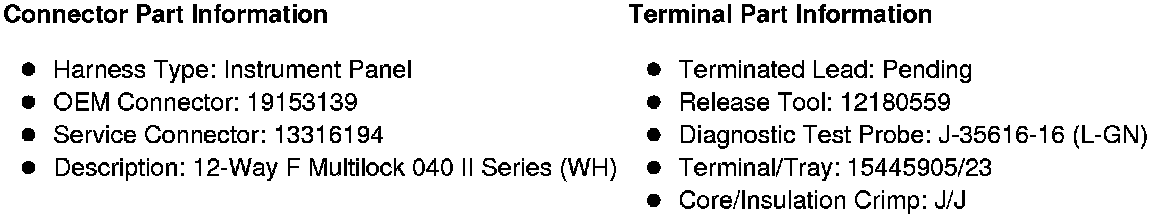

K73 Telematics Communication Interface Control Module X2
