Central Control Module
>>
Telematics Communication Interface Control Module Battery
Telematics Communication Interface Control Module Battery

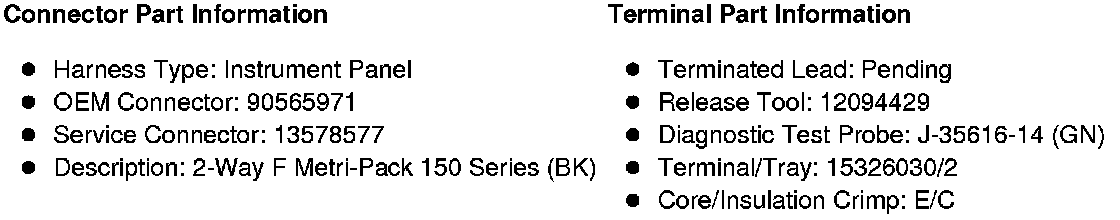

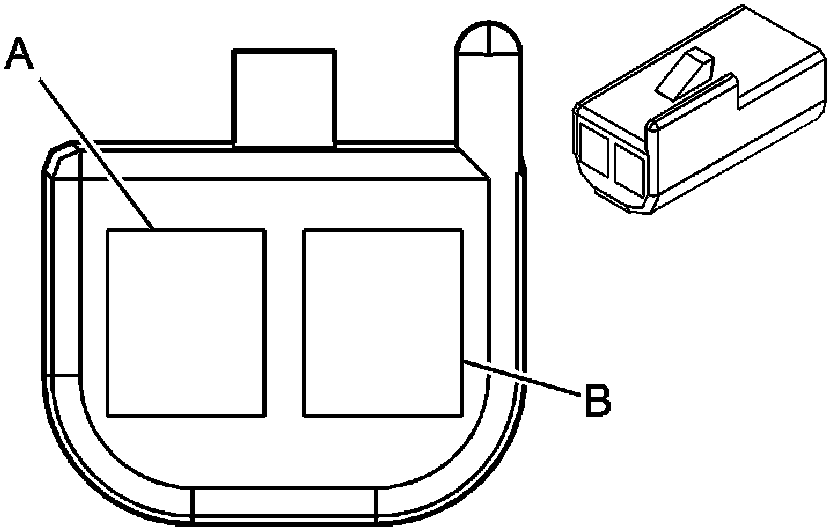

Component Connector End Views

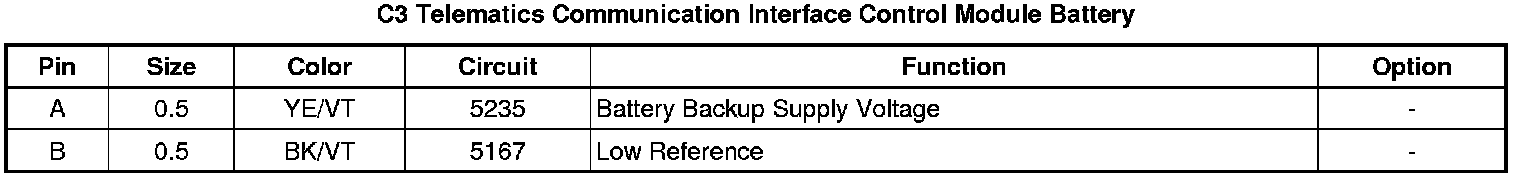

C3 Telematics Communication Interface
Control Module
Battery
