Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

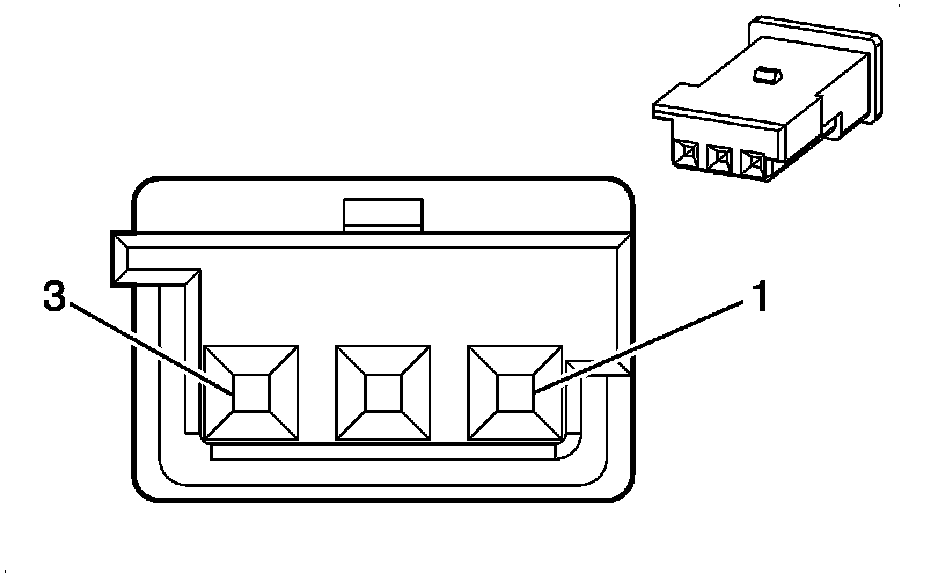

Component Connector End Views

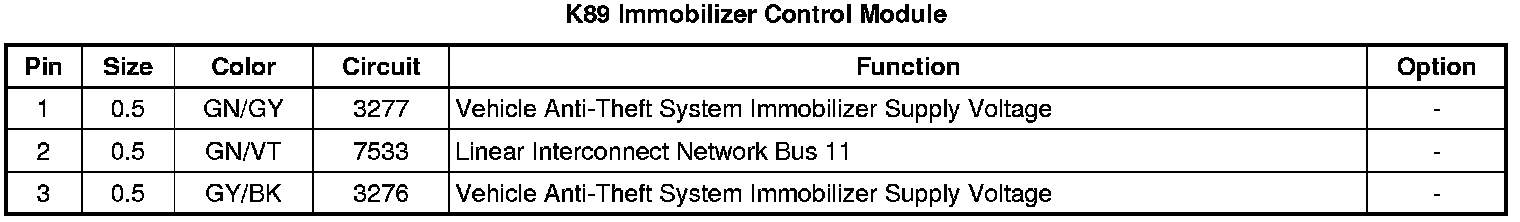

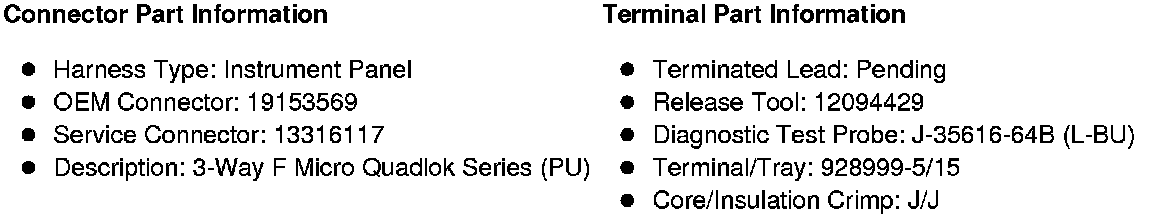

K89 Immobilizer
Control Module
