Turbo Boost Sensor
Turbo Boost Sensor

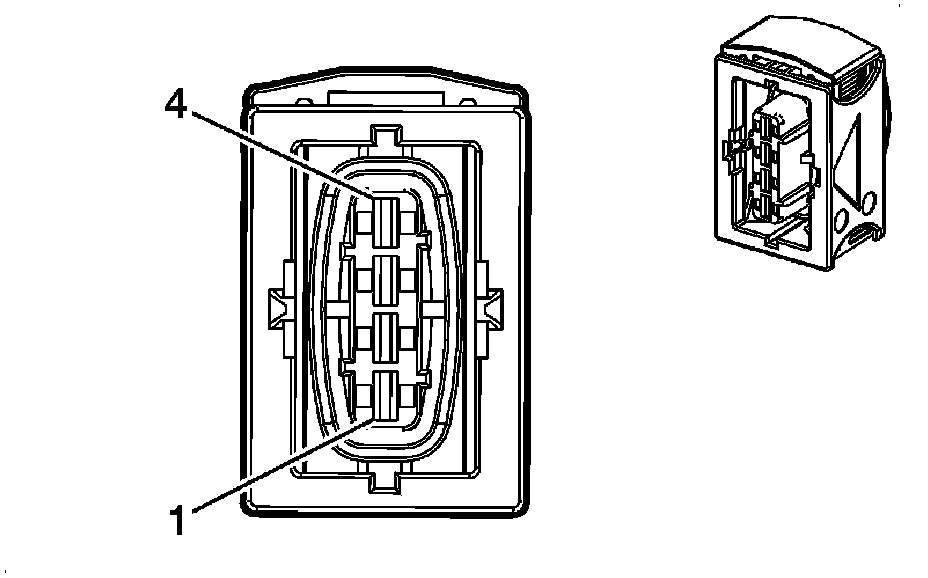

Component Connector End Views

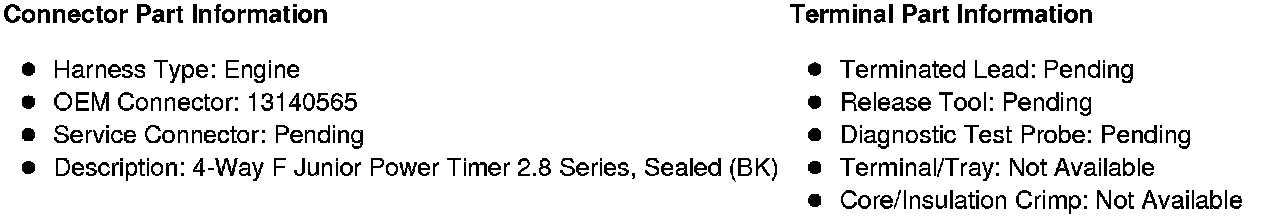

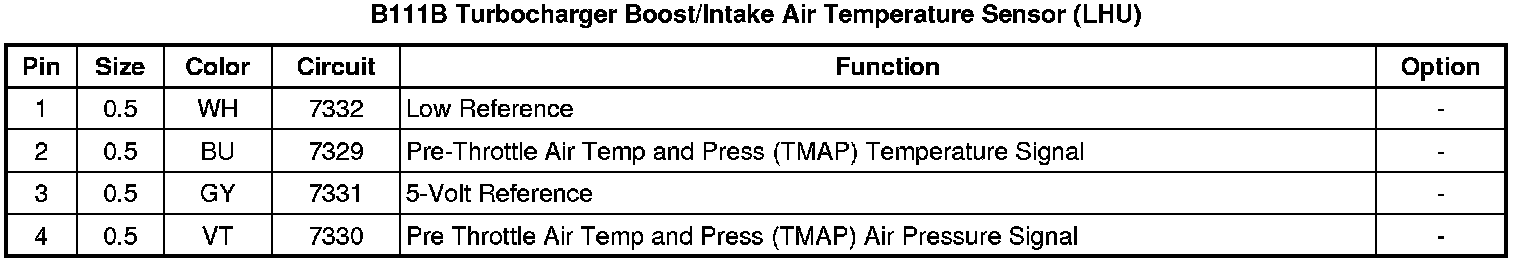

B111B Turbocharger Boost/Intake Air Temperature Sensor (LHU)
