Left Front of Engine Components

Powertrain Component Views

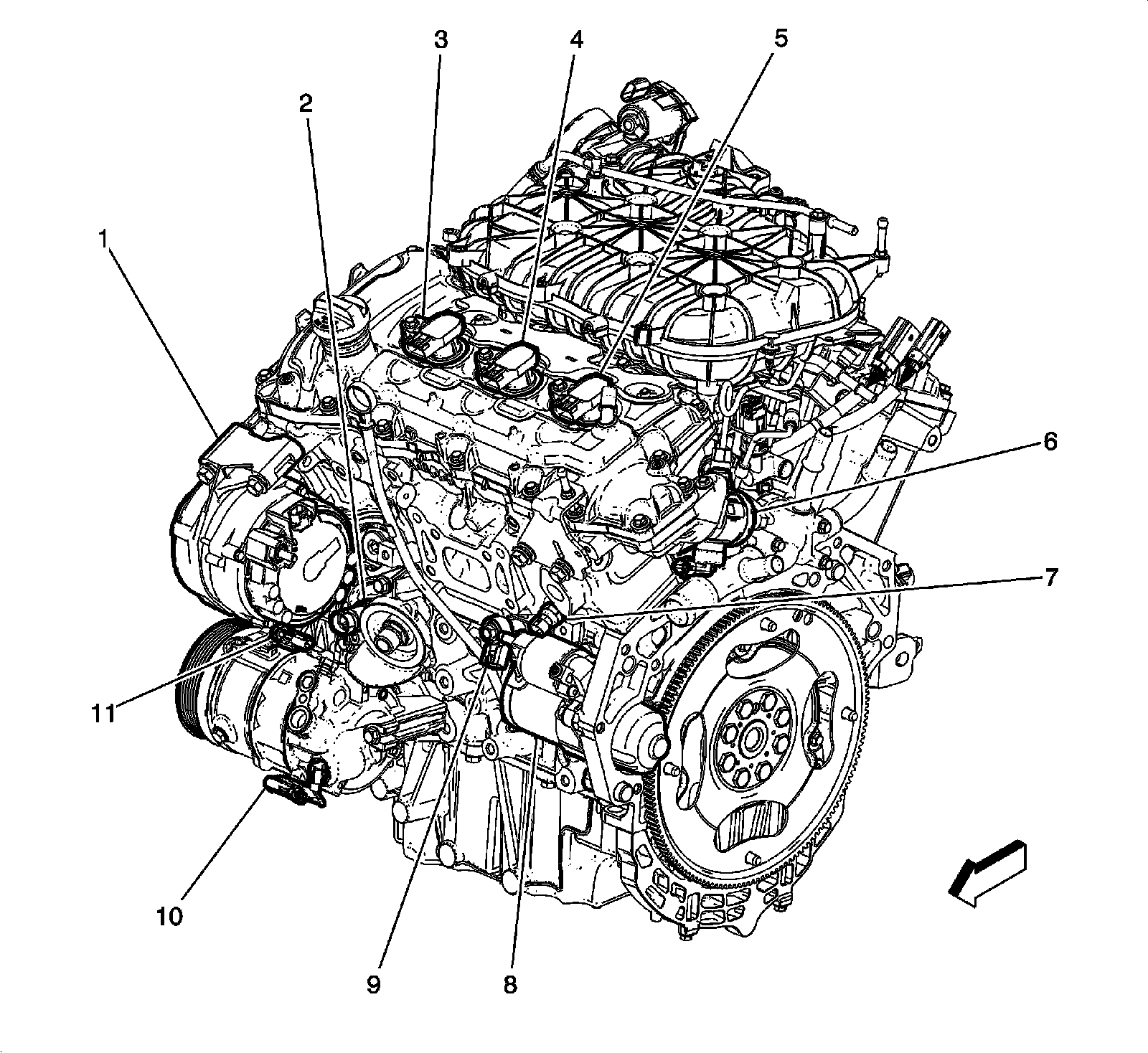

Left Front of Engine Components (LFX )




1 - G13 Generator
2 - B37 Engine Oil Pressure Switch
3 - T8B Ignition Coil 2
4 - T8D Ignition Coil 4
5 - T8F Ignition Coil 6
6 - G18 High Pressure Fuel Pump
7 - B34 Engine Coolant Temperature Sensor
8 - M64 Starter Motor
9 - B68B Knock Sensor 2
10 - Q46 Air Conditioning Compressor Valve
11 - Q2 A/C Compressor Clutch
