lemon-mirror
:
Home
>>
Buick
>>
2012
>>
LaCrosse FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Control Module
>>
Power Steering Control Module (NV7)
Power Steering Control Module (NV7)

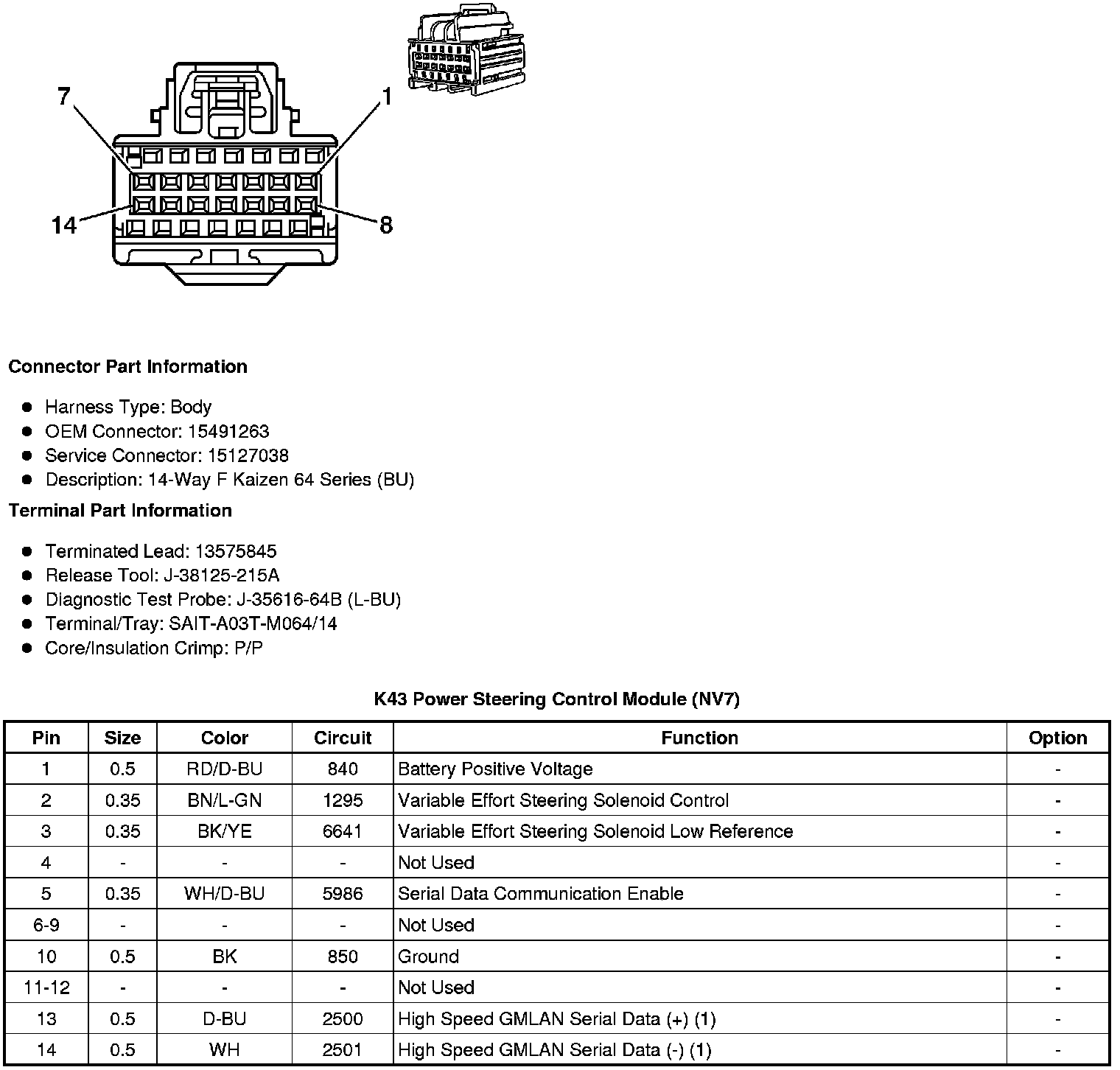

Component Connector End Views
K43 Power Steering
Control Module
(NV7)
