Seat Temperature Control Module: Locations

Passenger Compartment/Roof Component Views

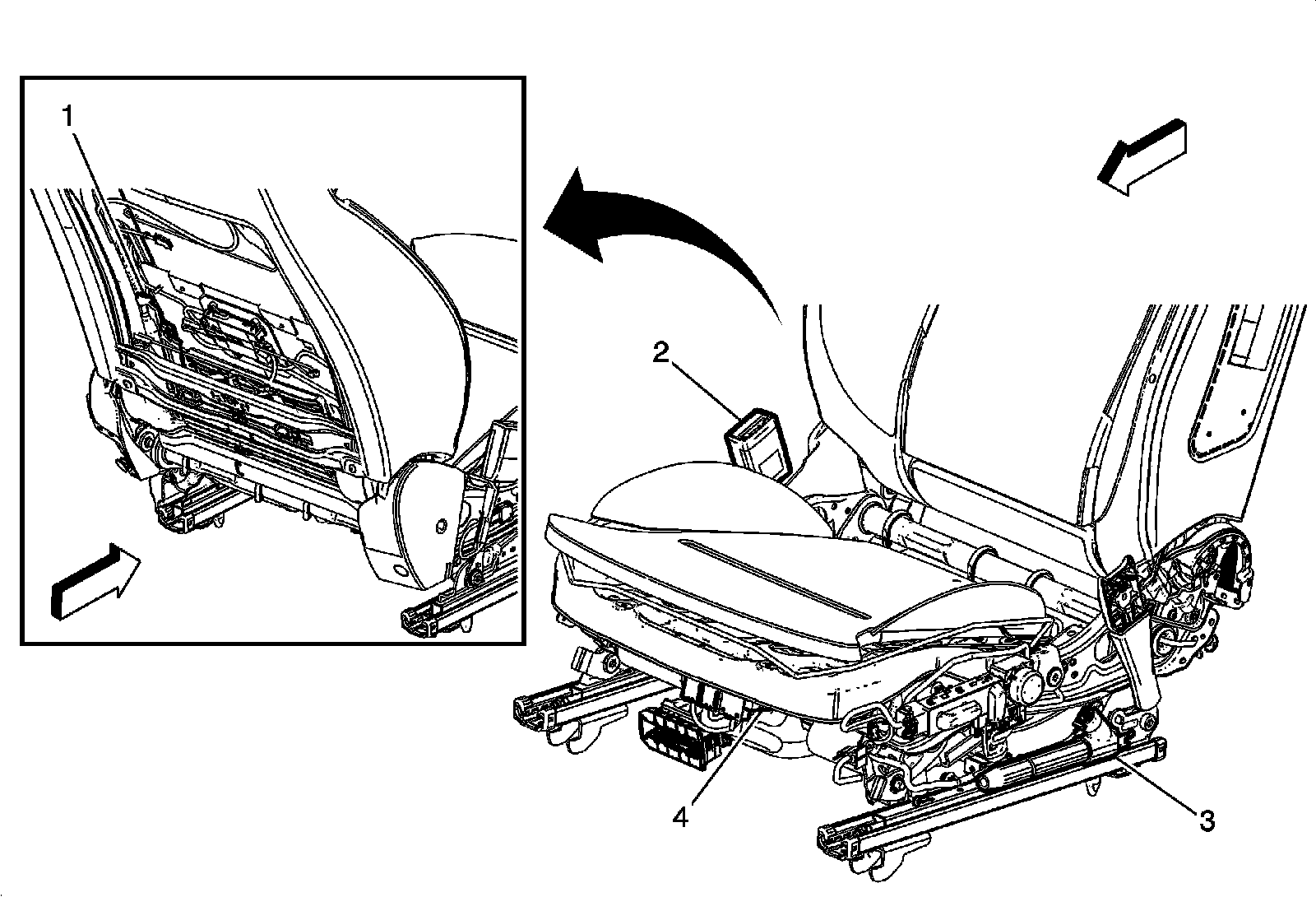

Driver Seat Left Front Lower




1 - A14D Seat Lumbar Support Pump - Driver (APG)
2 - B88D Seat Belt Switch - Driver
3 - F113D Seat Belt Anchor Pretensioner - Driver
4 - K29 Seat Heating Control Module (KA1 without A45)
