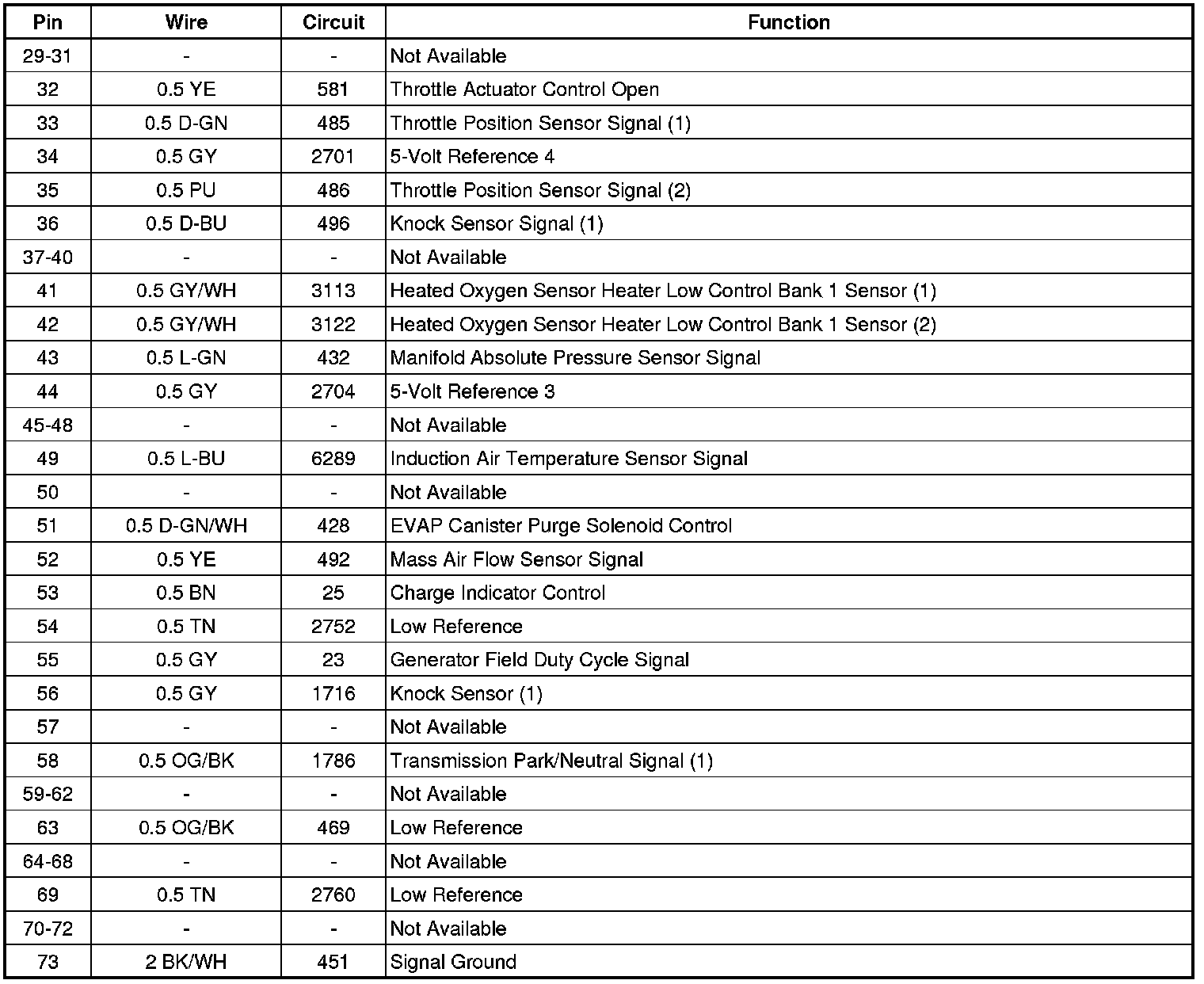

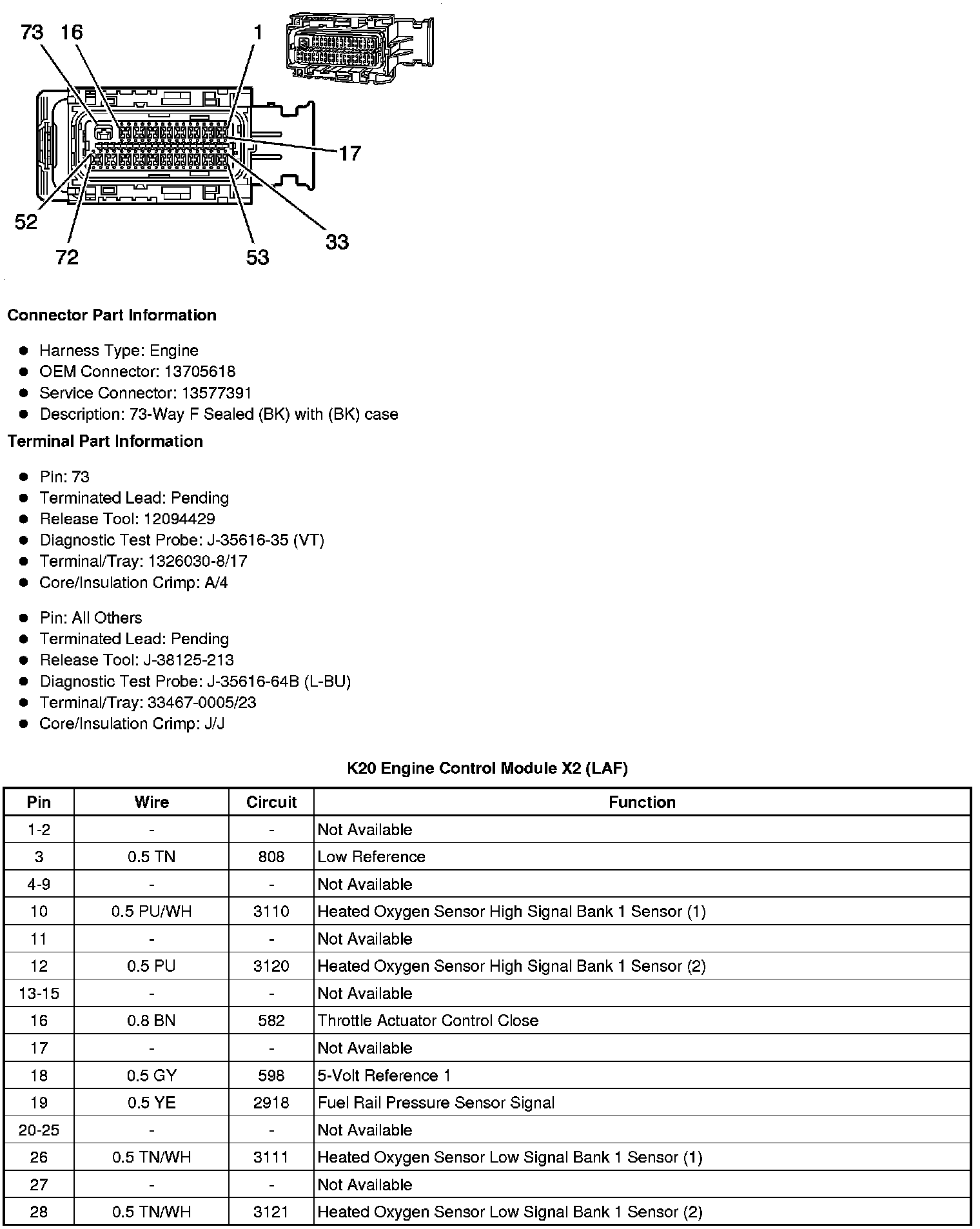

Home >> Buick >> 2011 >> Regal L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> K20 Engine Control Module X2
