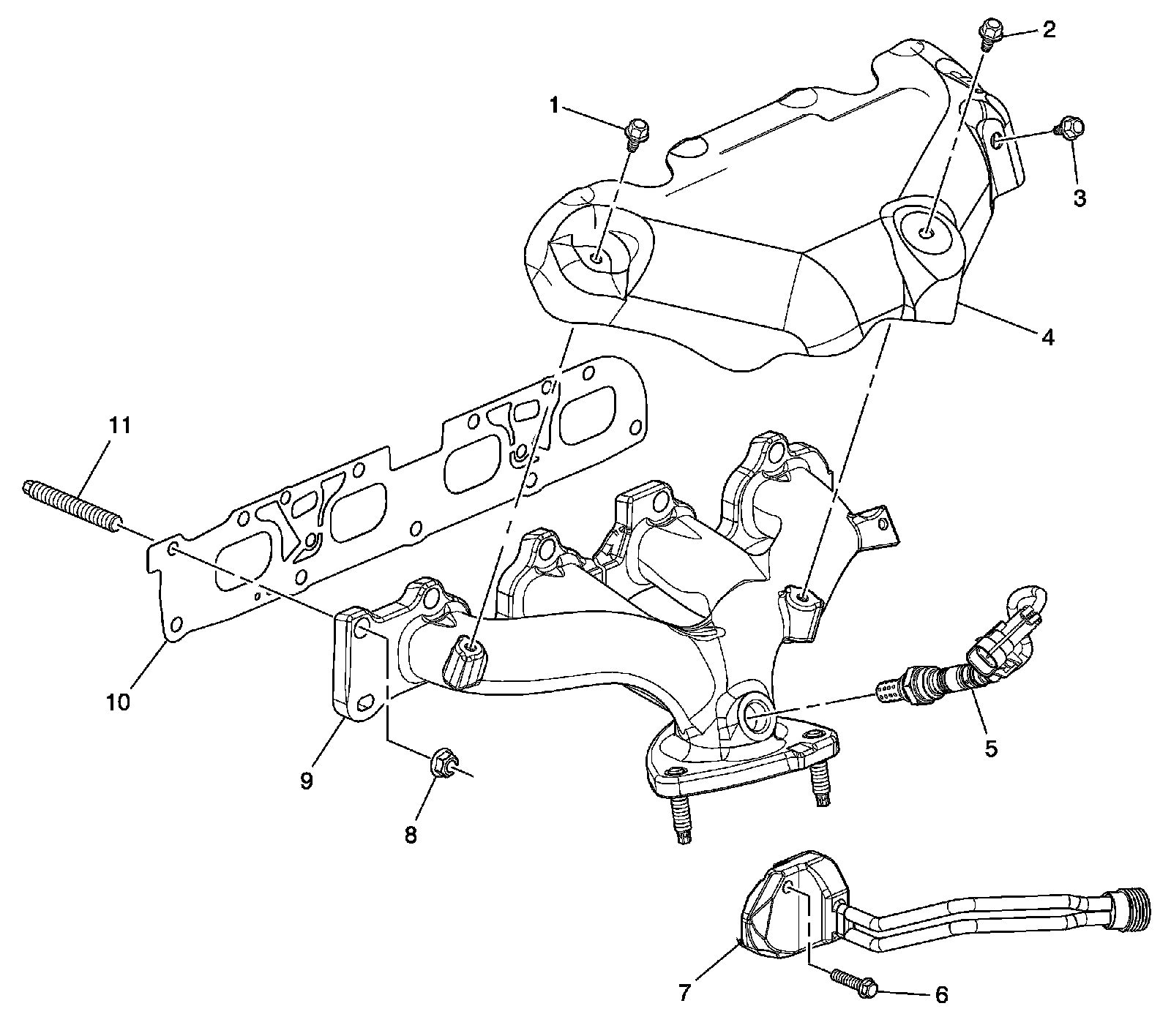

Exhaust Manifold and Components




1 - Exhaust Manifold Heat Shield Bolt
2 - Exhaust Manifold Heat Shield Bolt
3 - Exhaust Manifold Heat Shield Bolt
4 - Exhaust Manifold Heat Shield
5 - Oxygen Sensor
6 - Block Heater Bolt
7 - Block Heater
8 - Exhaust Manifold Nut
9 - Exhaust Manifold
10 - Exhaust Manifold Gasket
11 - Exhaust Manifold Stud
