Communications Control Module
>>

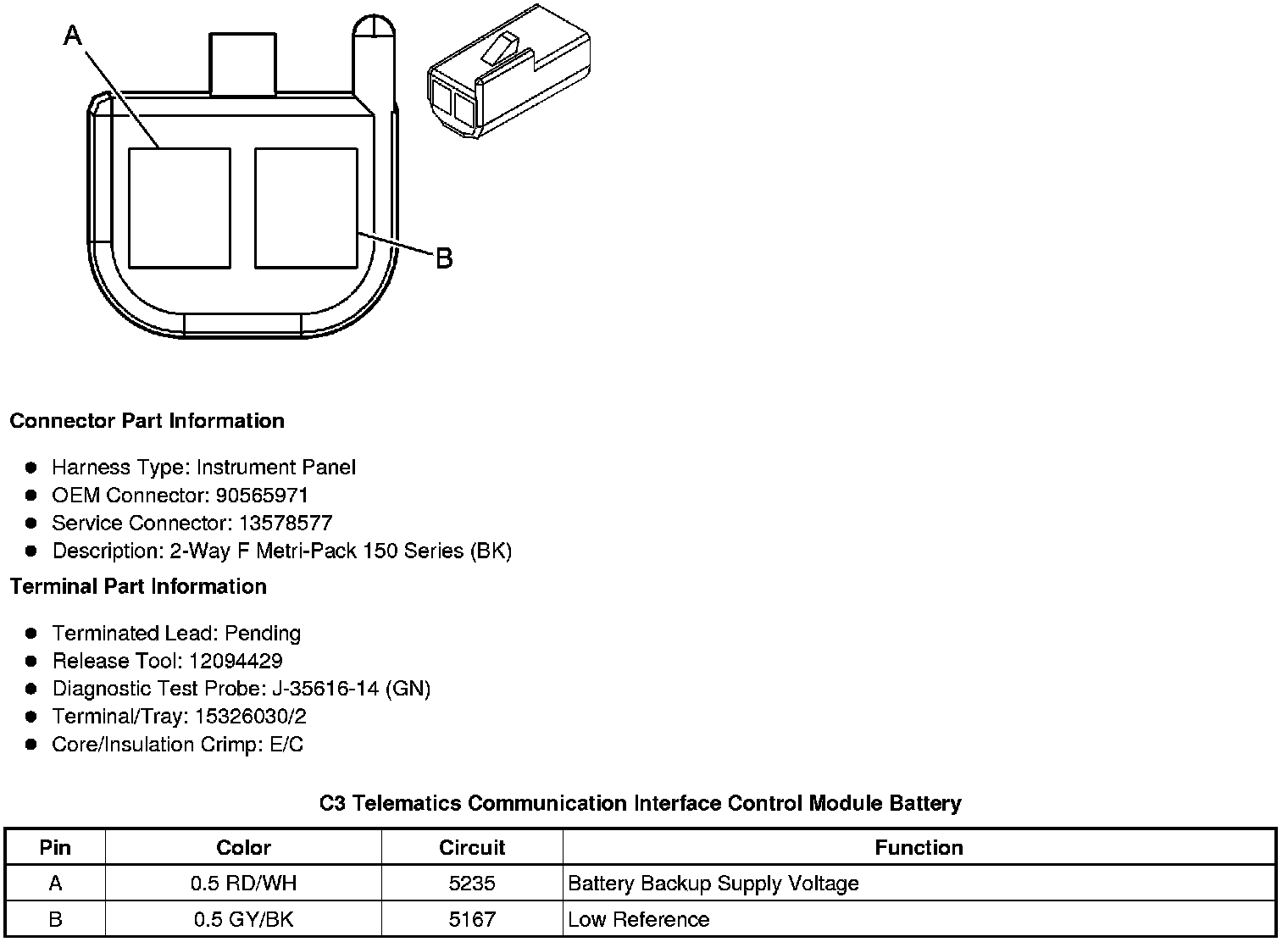

C3 Telematics Communication Interface Control Module Battery
C3 Telematics Communication Interface Control Module Battery
Component Connector End Views
C3 Telematics Communication Interface Control Module Battery
