Acceleration/Deceleration Sensor
Acceleration/Deceleration Sensor

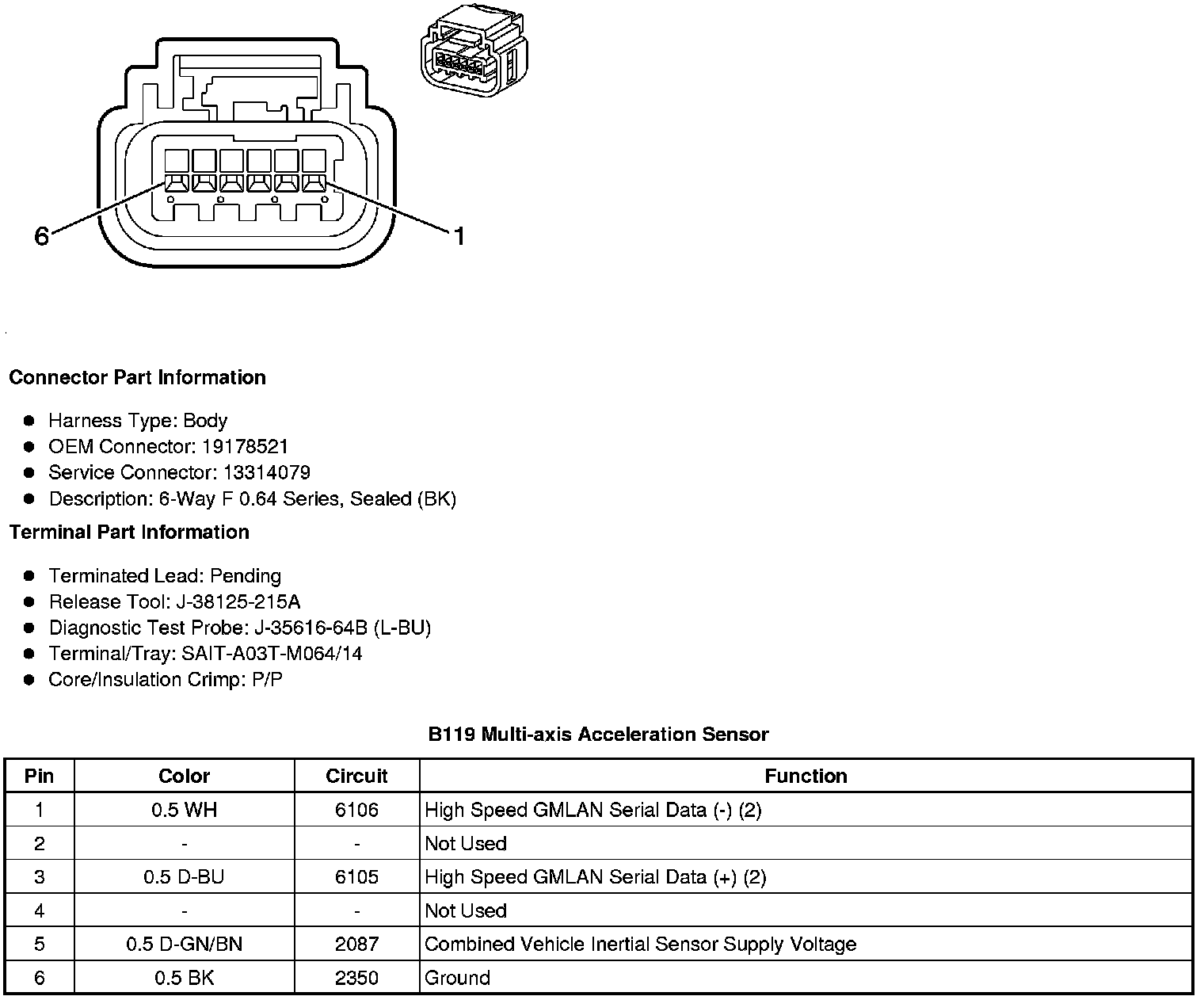

Component Connector End Views
B119 Multi-axis
Acceleration Sensor
