Home >> Buick >> 2011 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Absolute Pressure Sensor >> Diagrams

Absolute Pressure Sensor: Diagrams

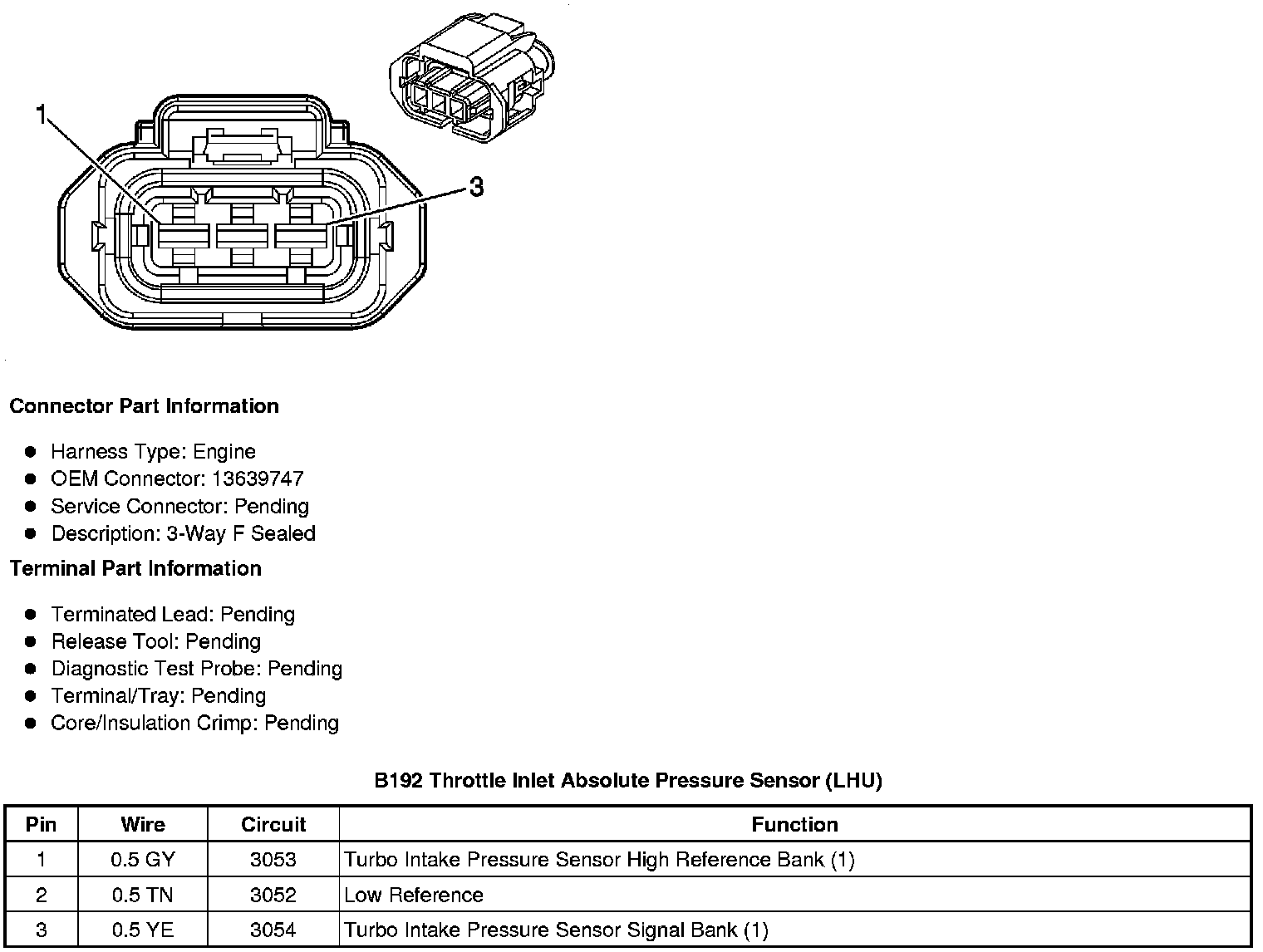

Component Connector End Views

B192 Throttle Inlet Absolute Pressure Sensor (LHU)
