Engine Control Module




Component Connector End Views

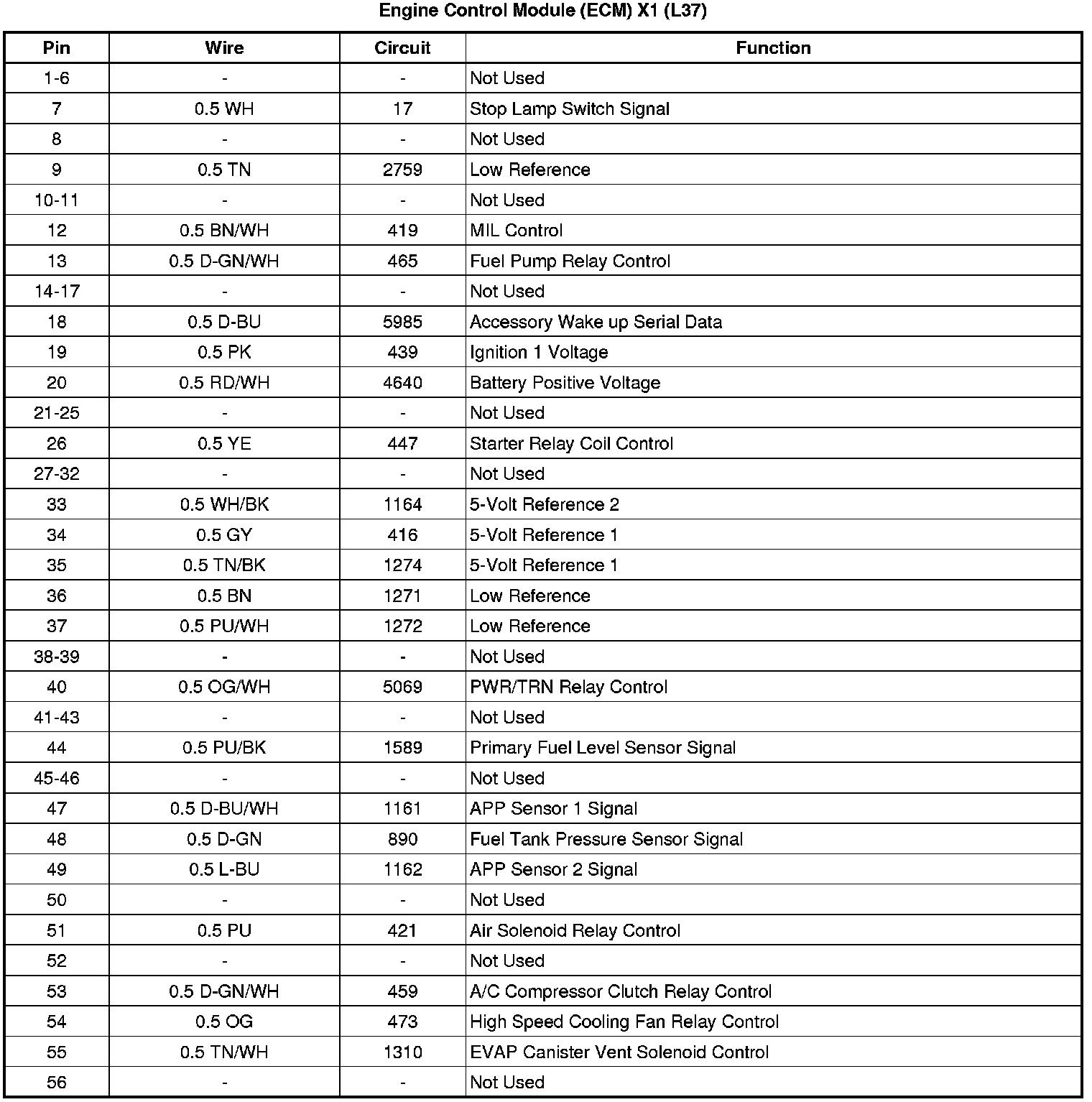

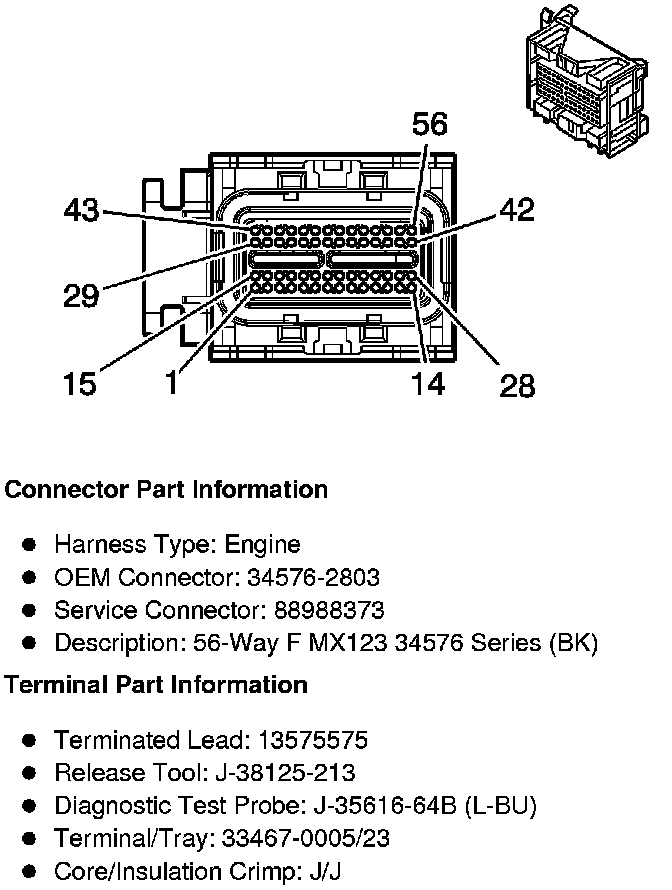

Engine Control Module (ECM) X1 (L37)

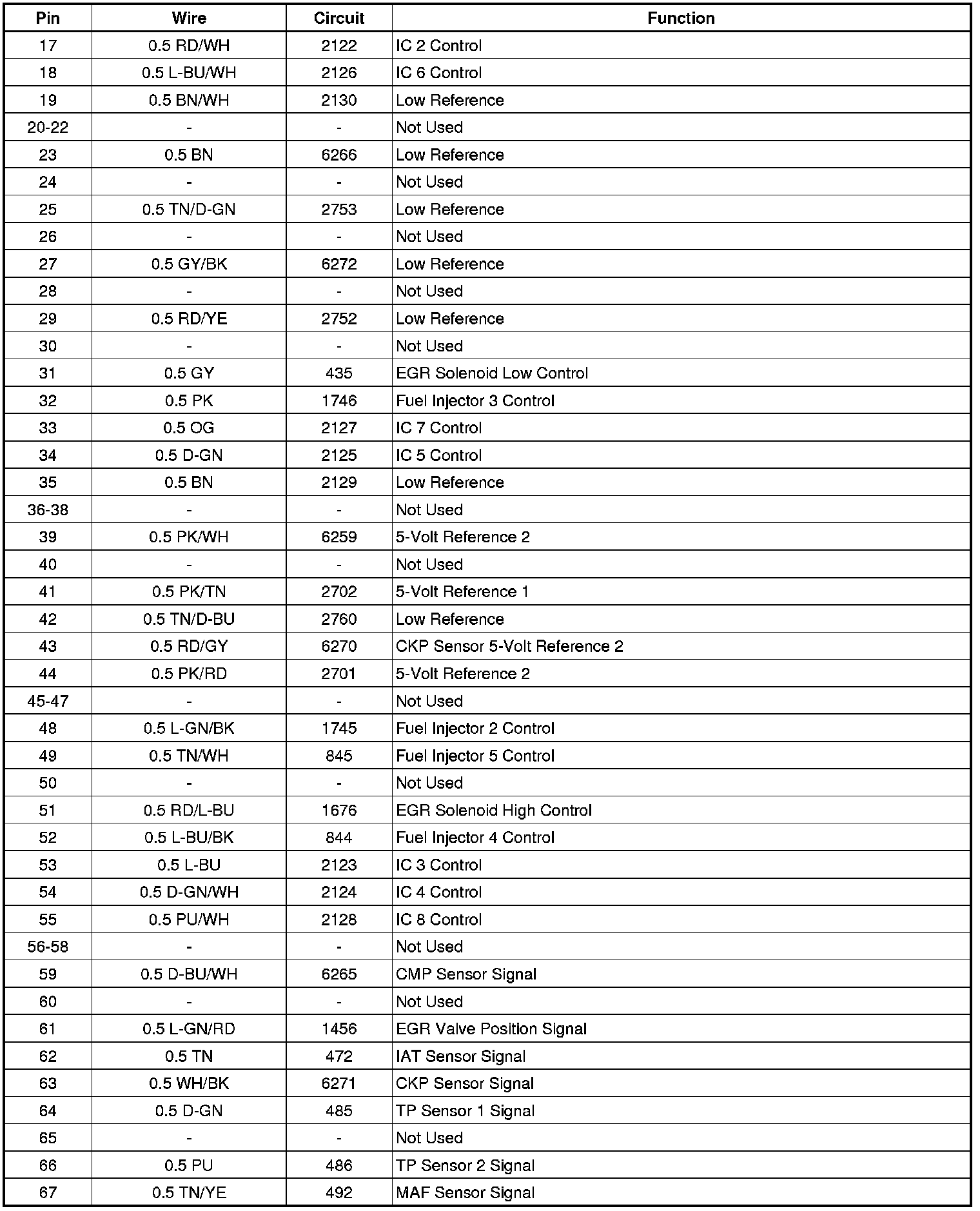

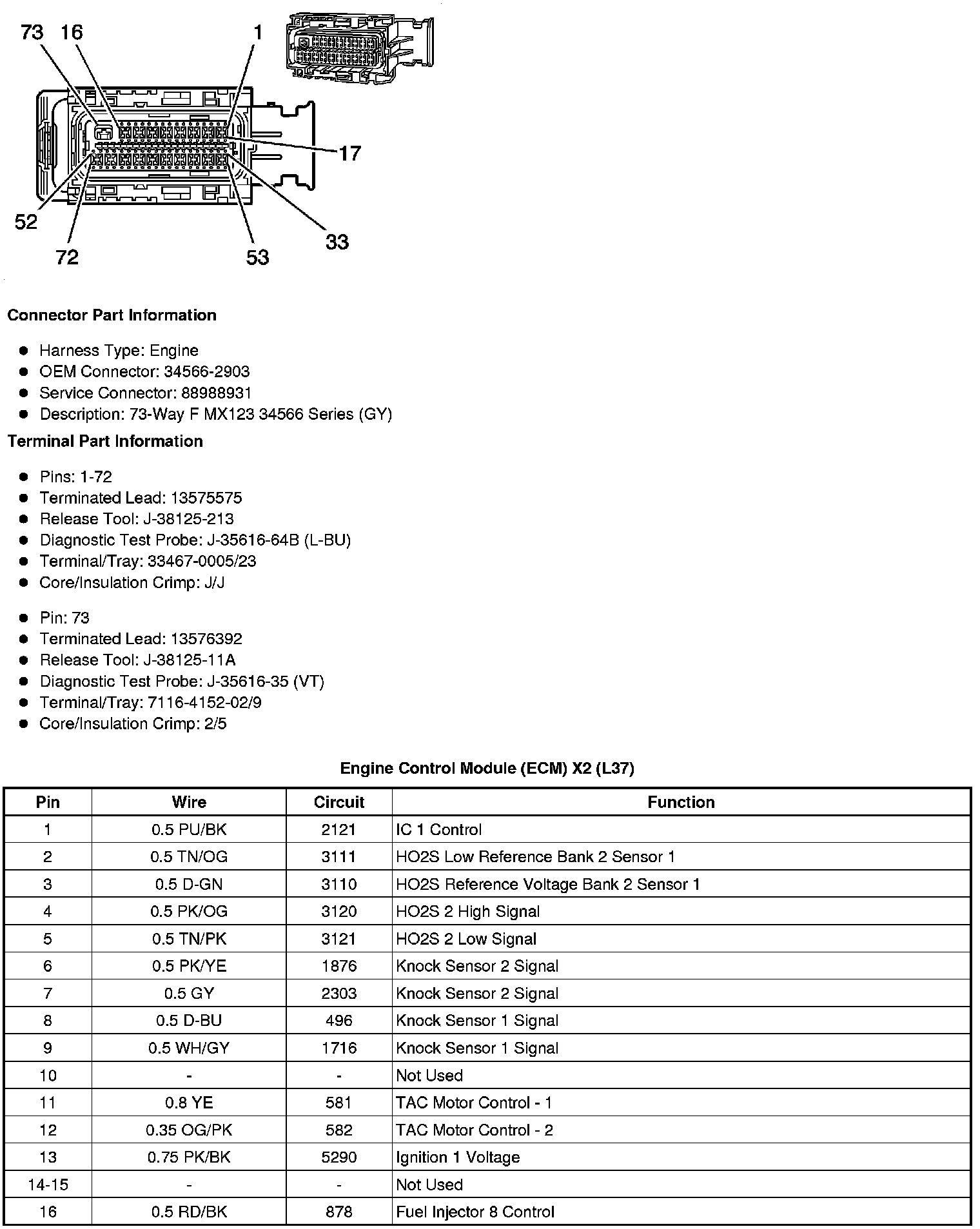

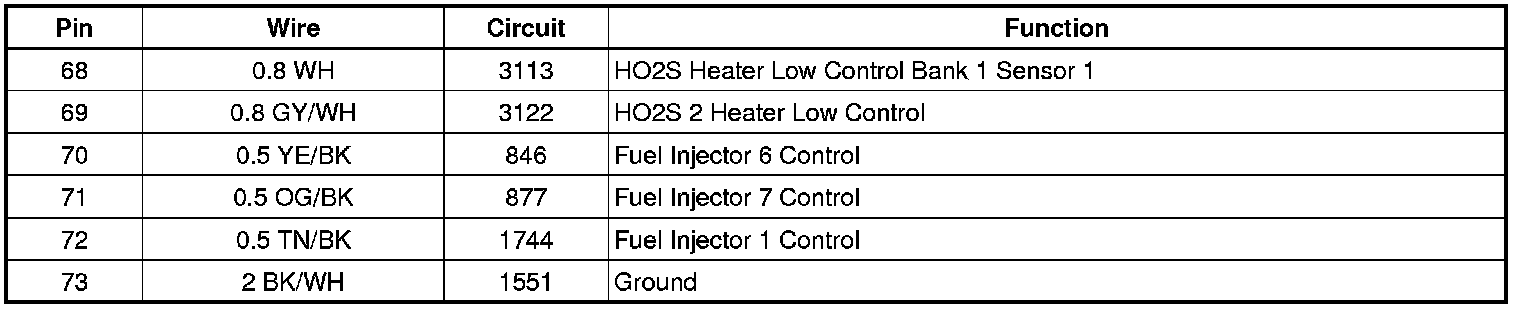

Engine Control Module (ECM) X2 (L37)

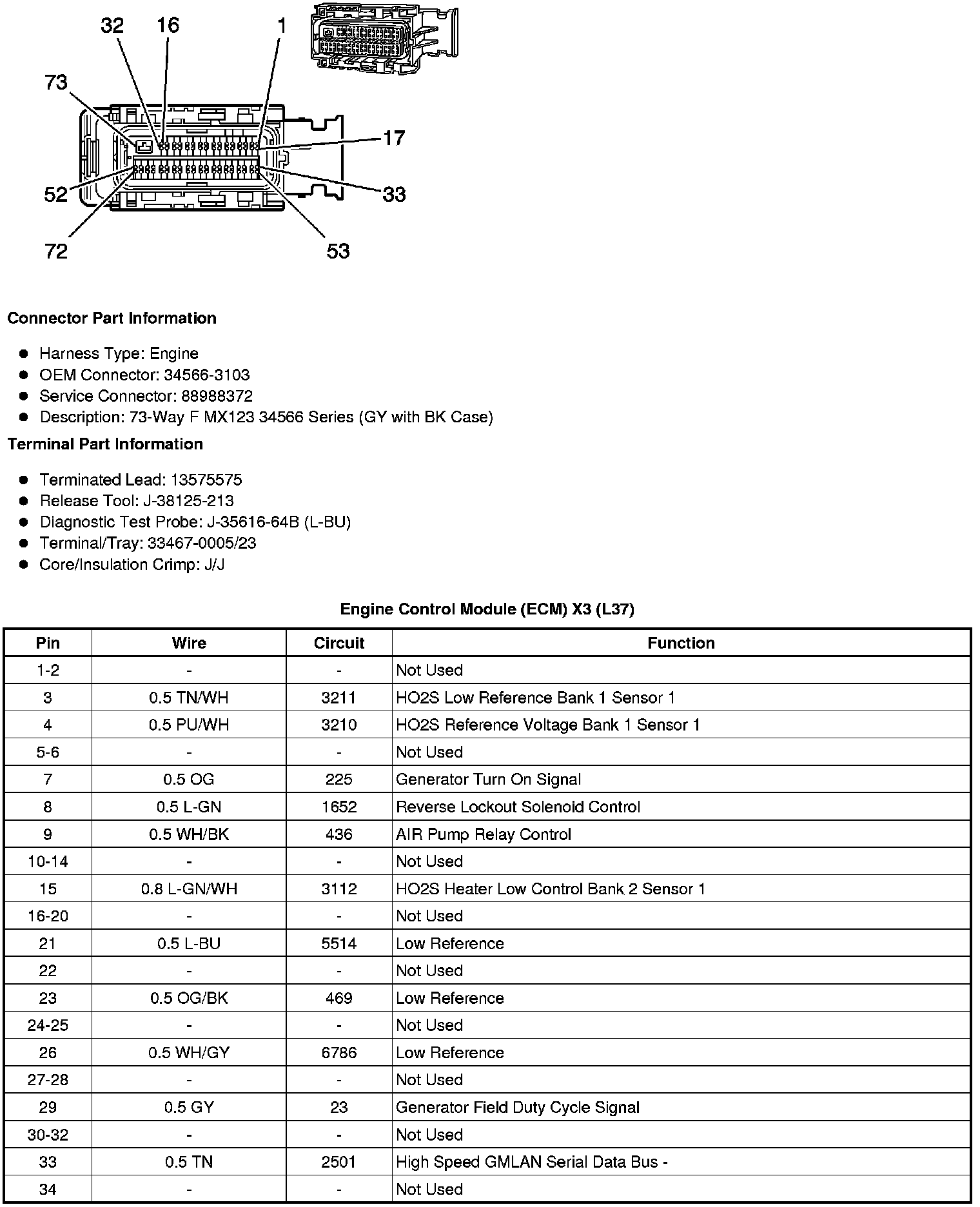

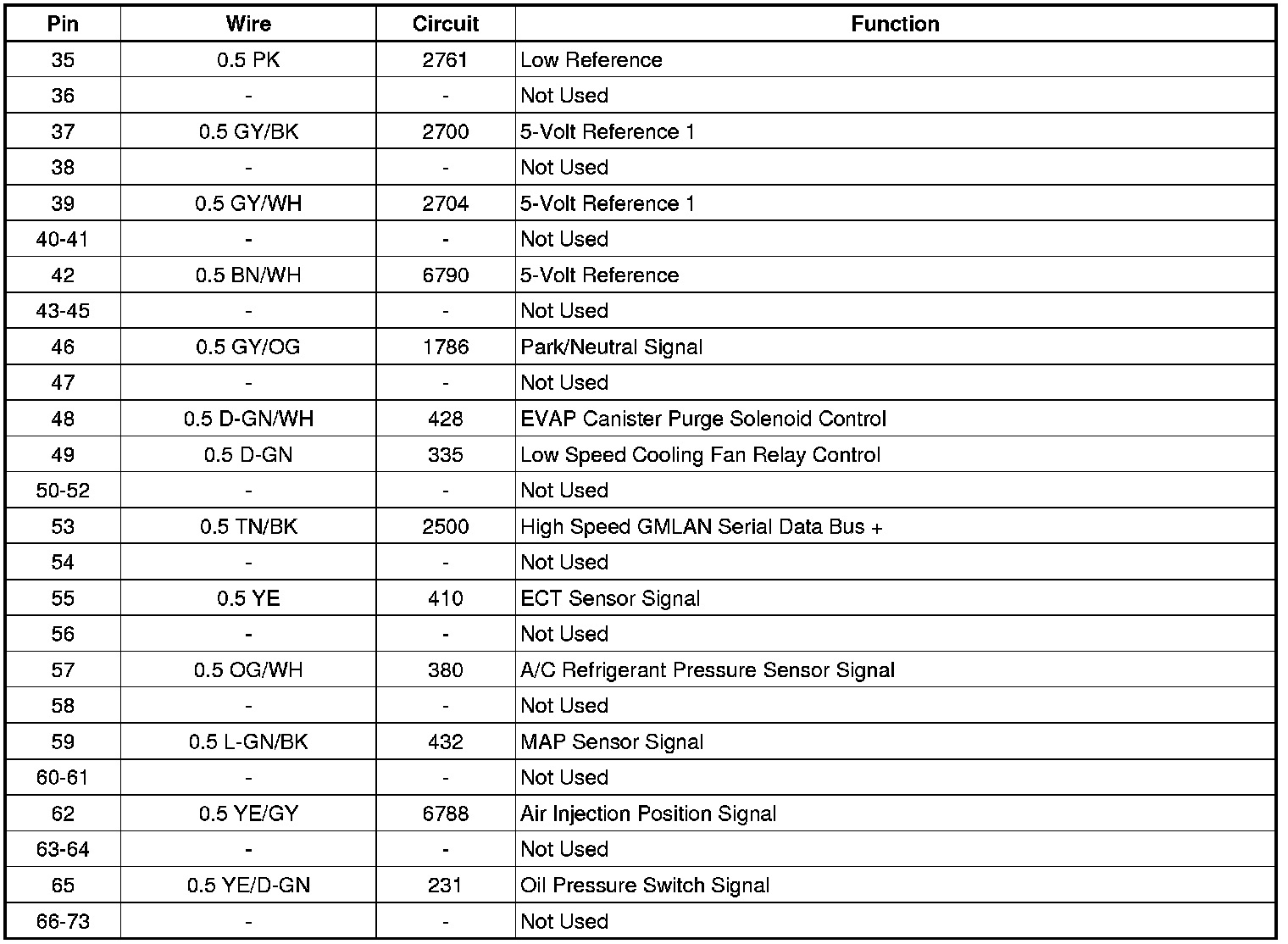

Engine Control Module (ECM) X3 (L37)
