Transmission Position Sensor/Switch: Diagrams




Component Connector End Views

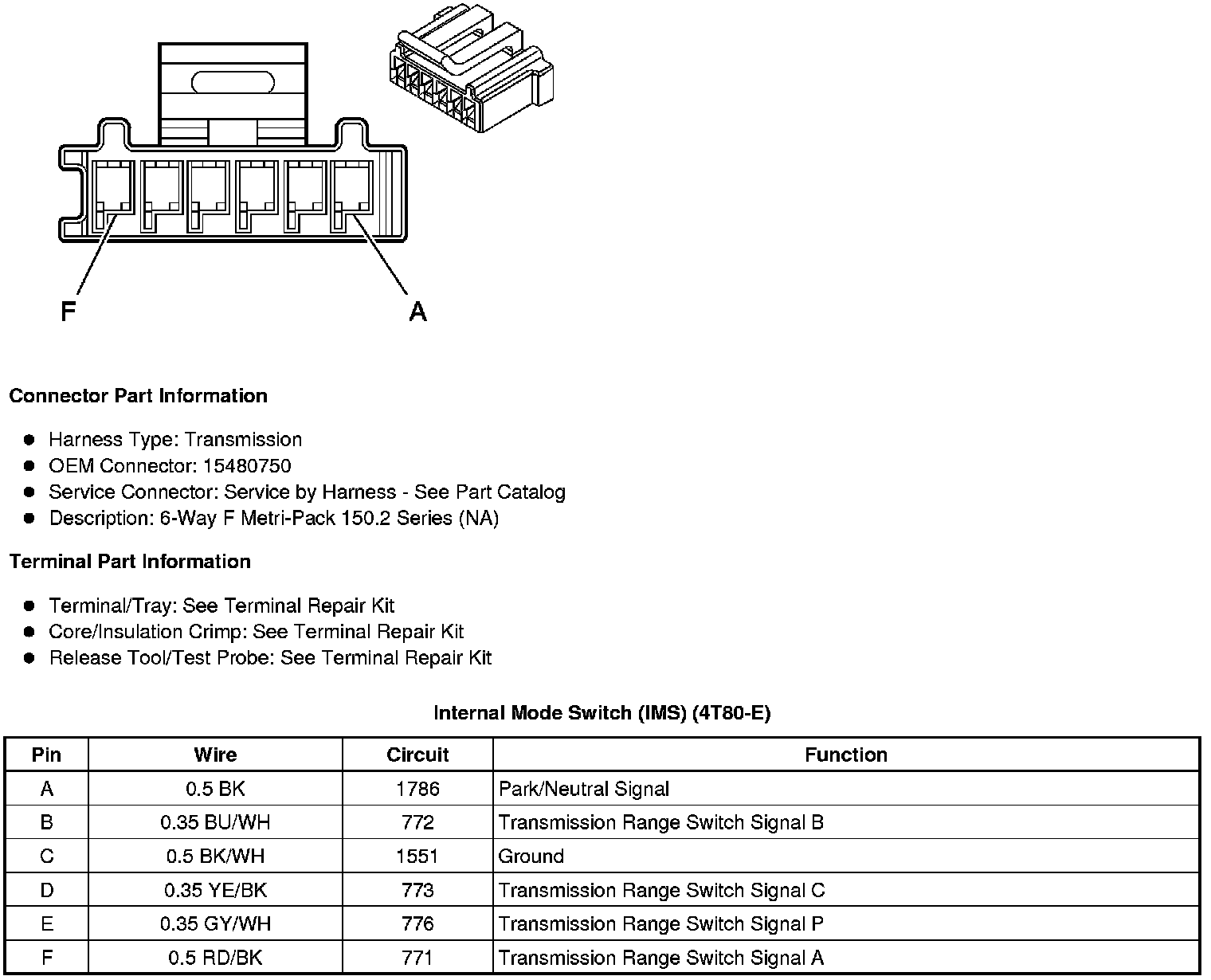

Internal Mode Switch (IMS) (4T80-E)

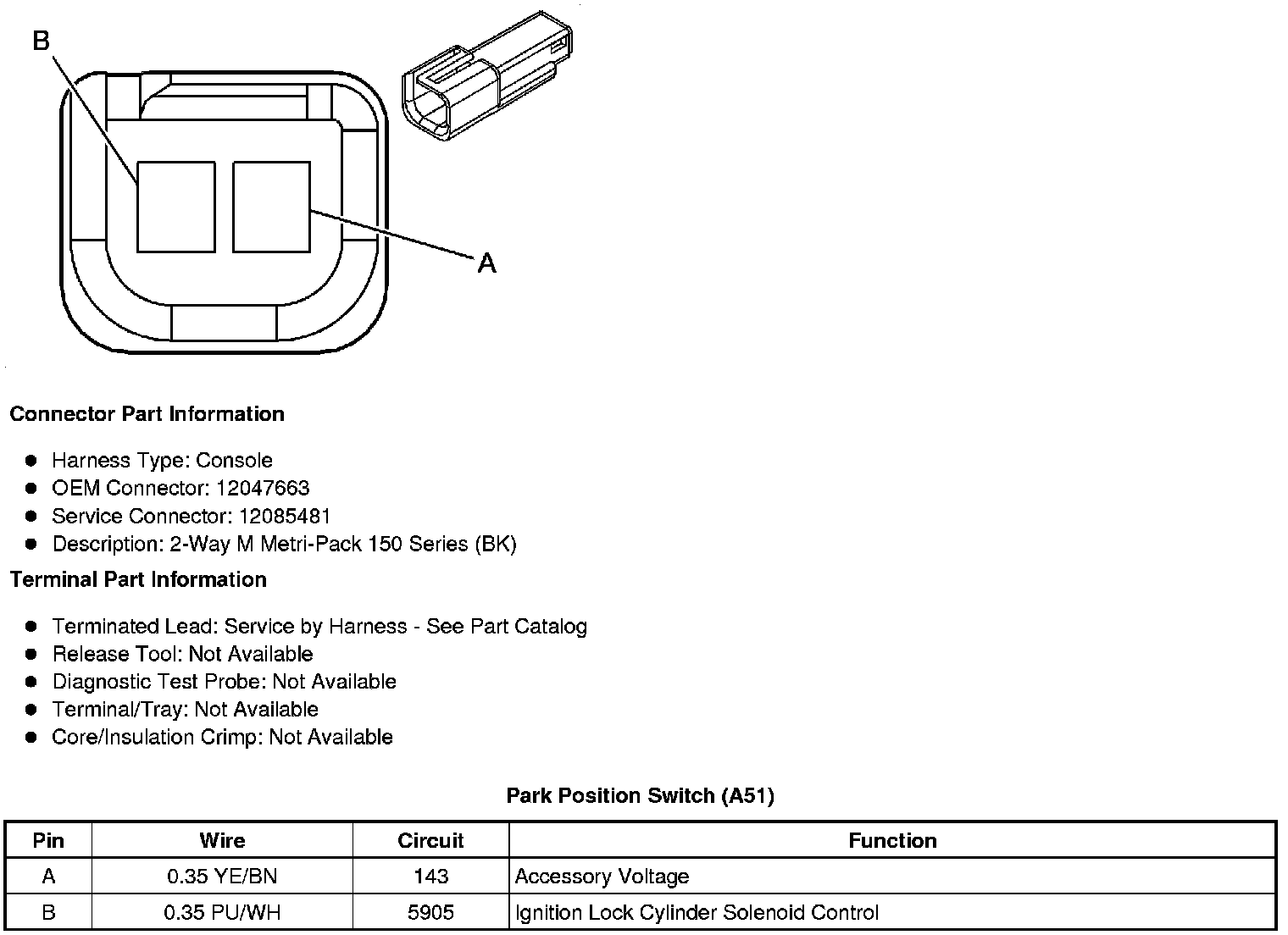

Park Position Switch (A51)
