Home >> Buick >> 2011 >> Lucerne V6-3.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Traction Control Switch

Traction Control Switch




Component Connector End Views

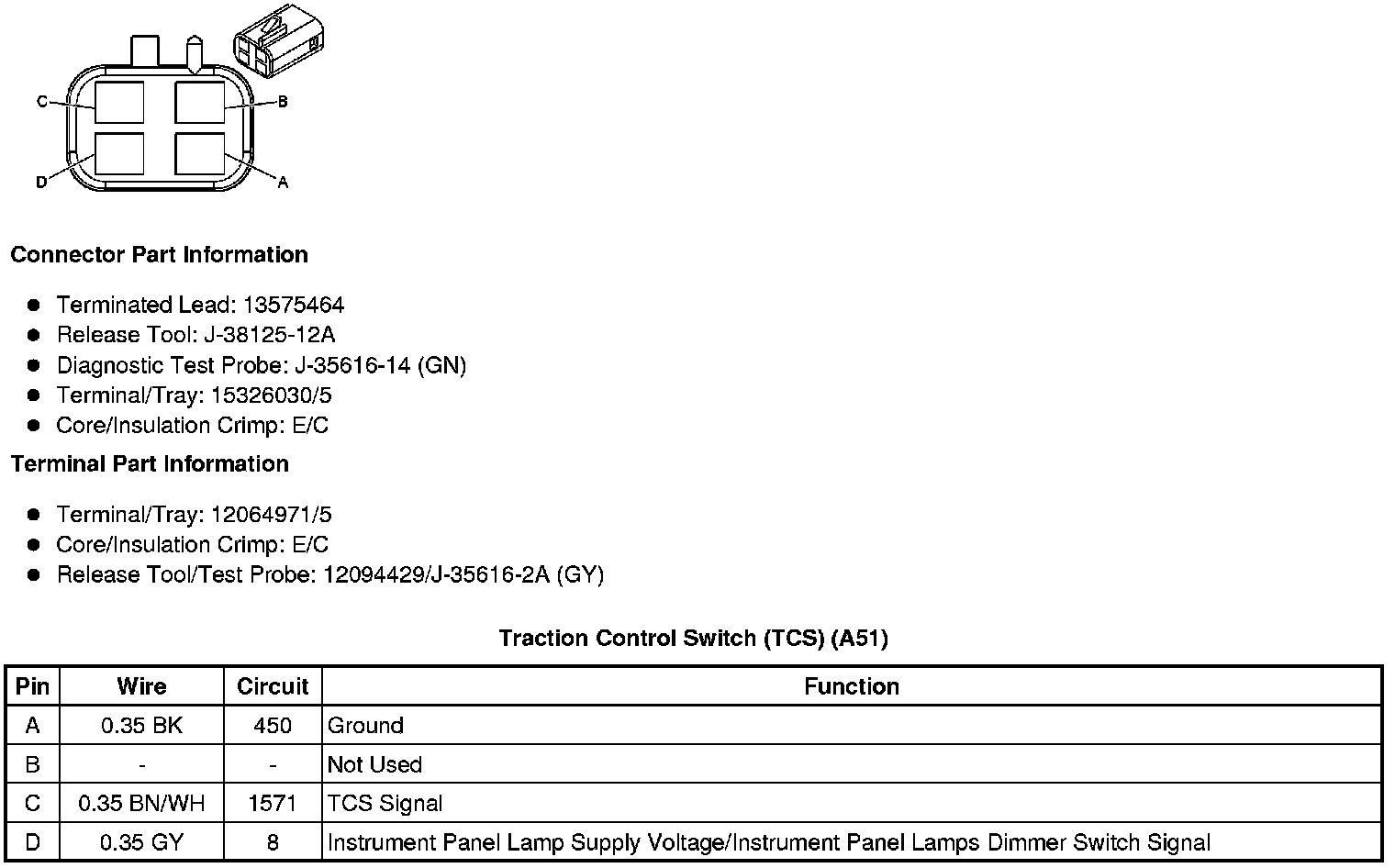

Traction Control Switch (TCS) (A51)

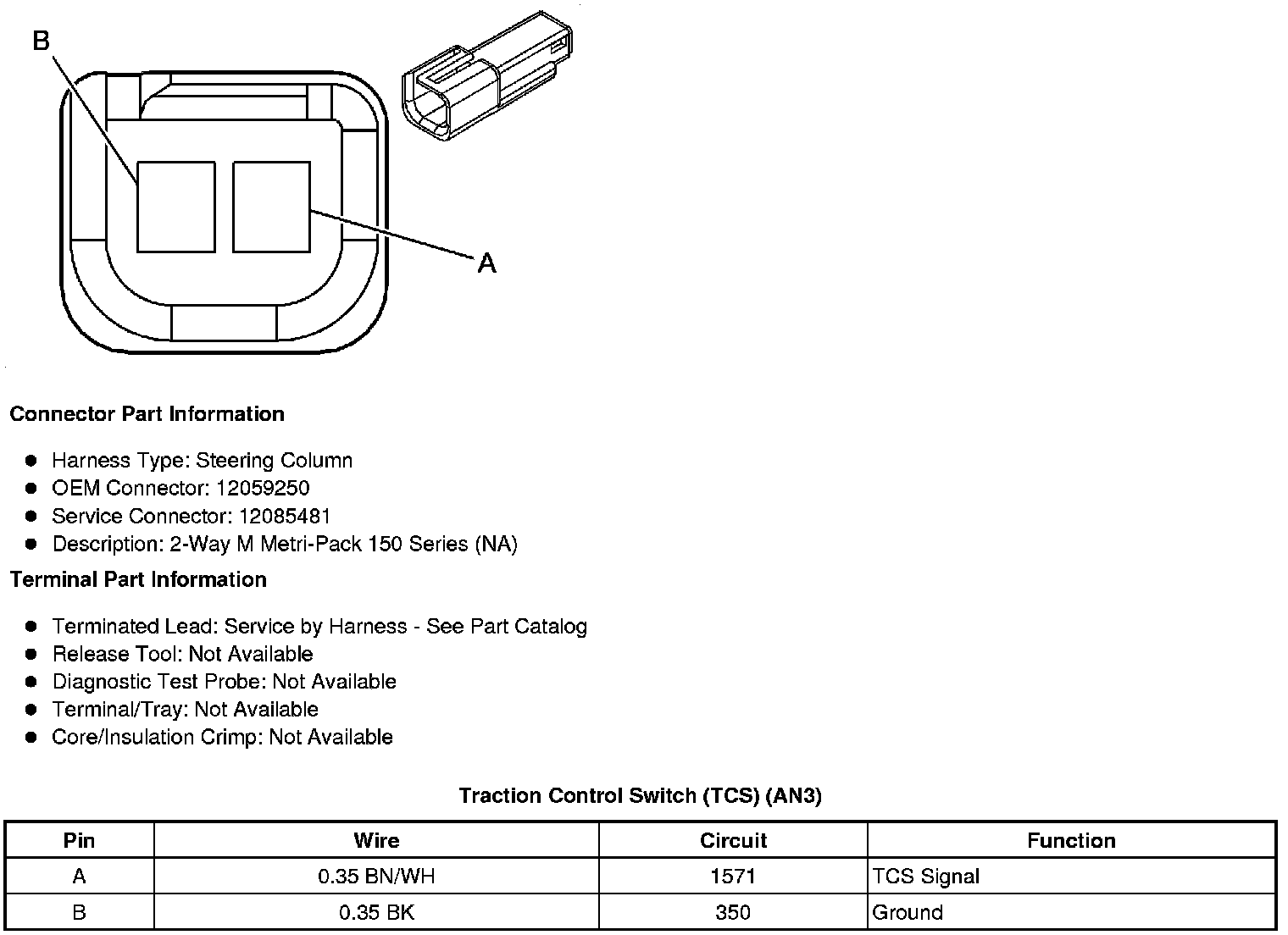

Traction Control Switch (TCS) (AN3)
