Home >> Buick >> 2011 >> Lucerne V6-3.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lateral Accelerometer

Lateral Accelerometer

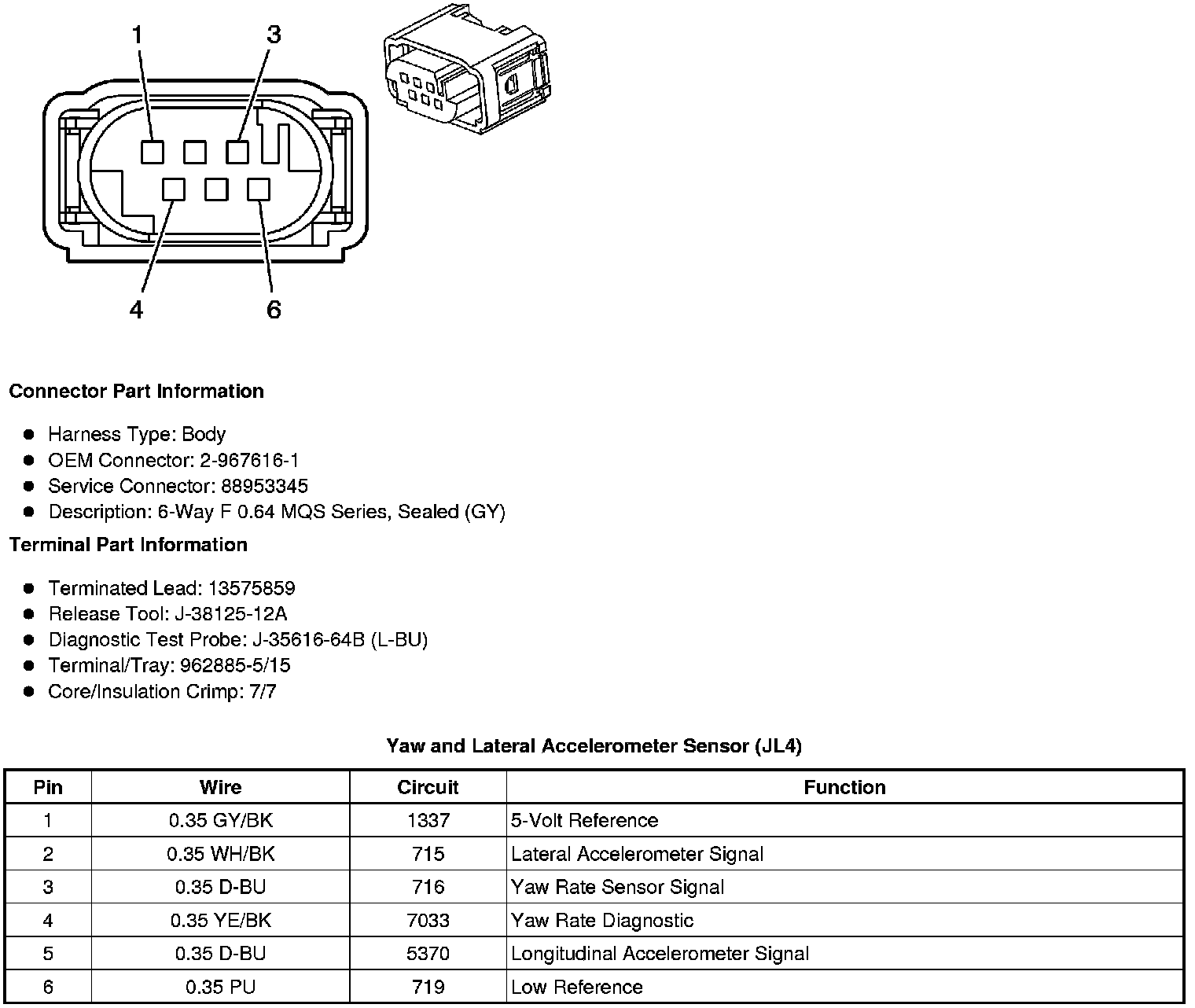

Component Connector End Views

Yaw and Lateral Accelerometer Sensor (JL4)
