Engine Control Module
Engine Control Module
Component Connector End Views

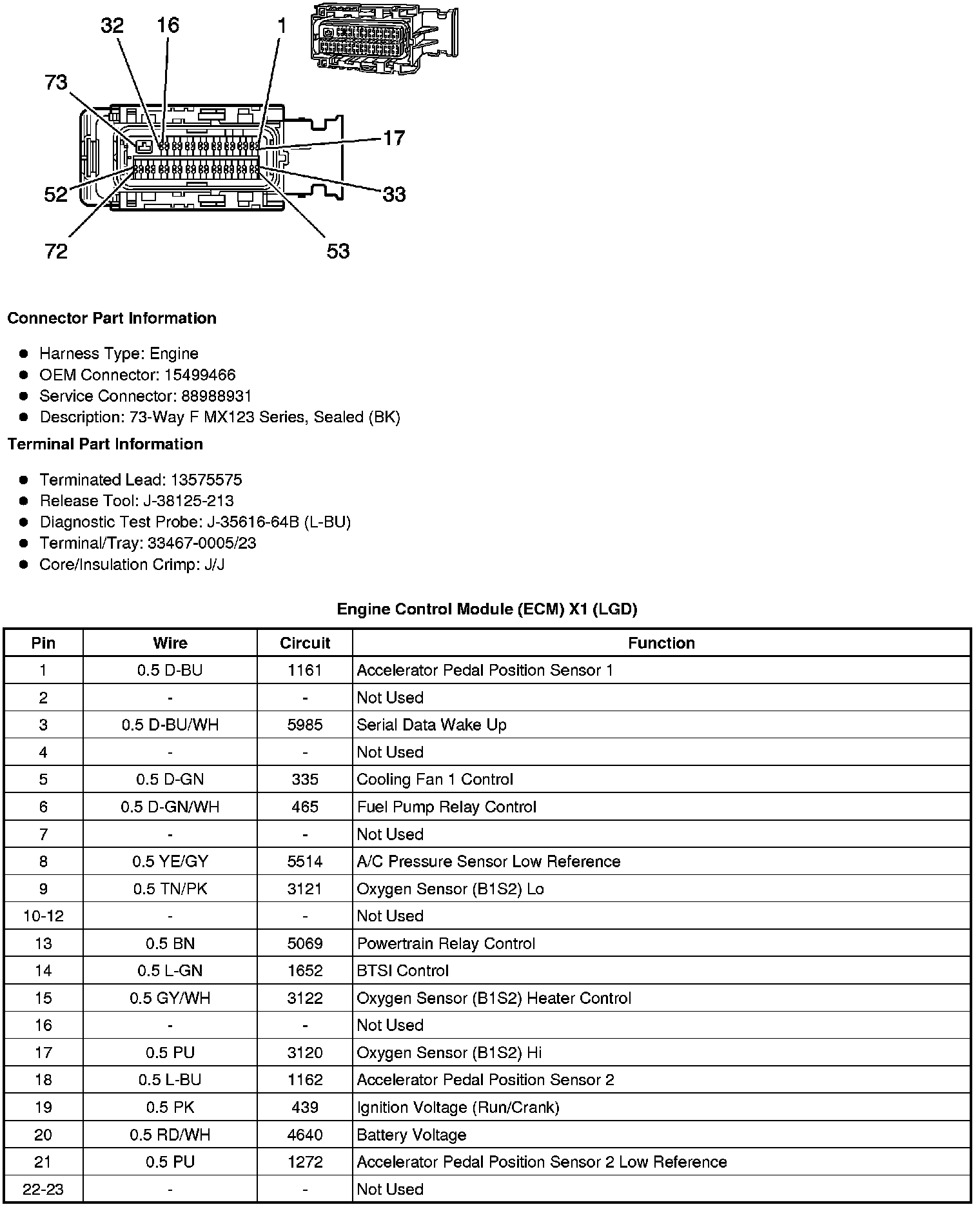

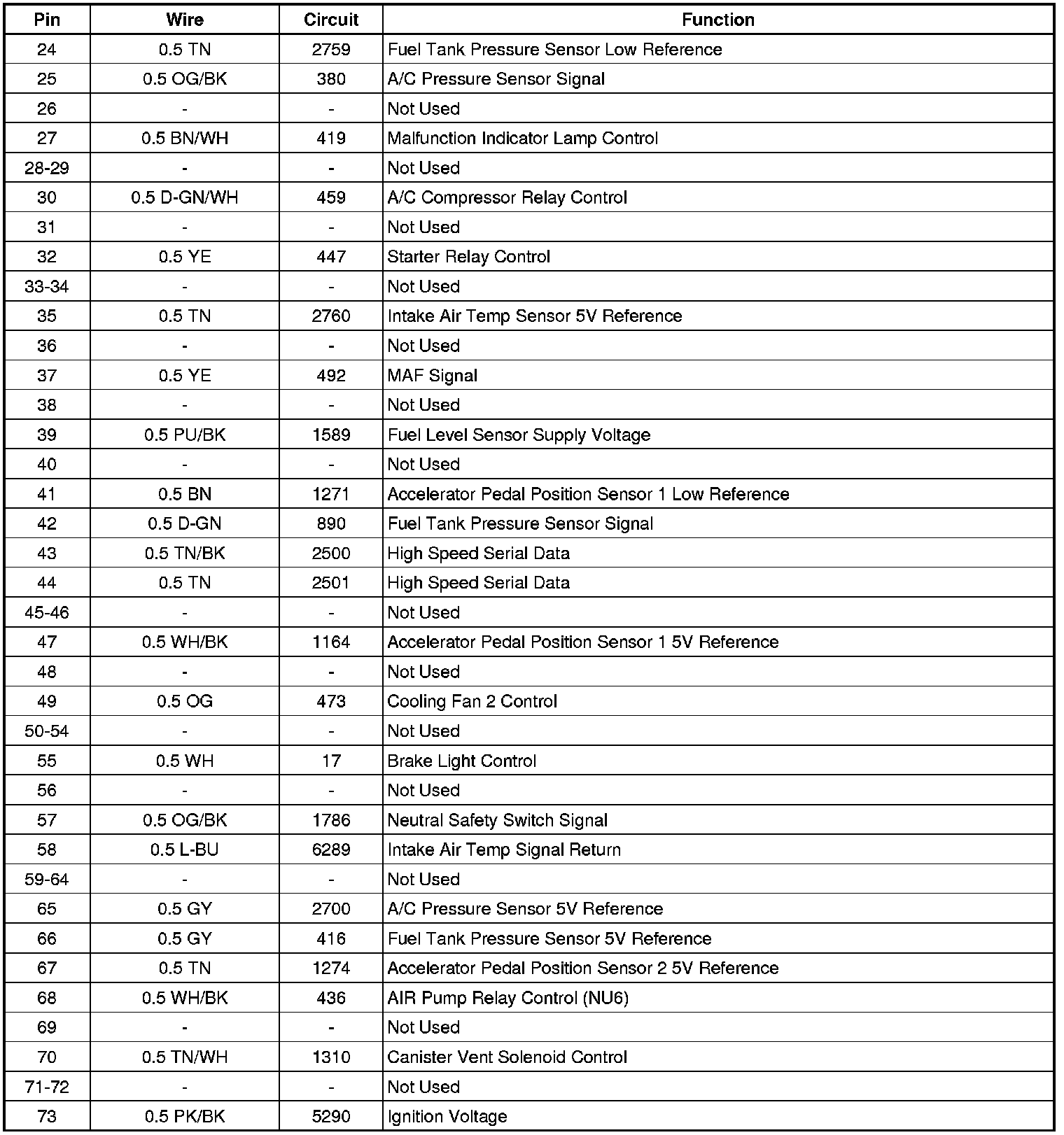

Engine Control Module (ECM) X1 (LGD)

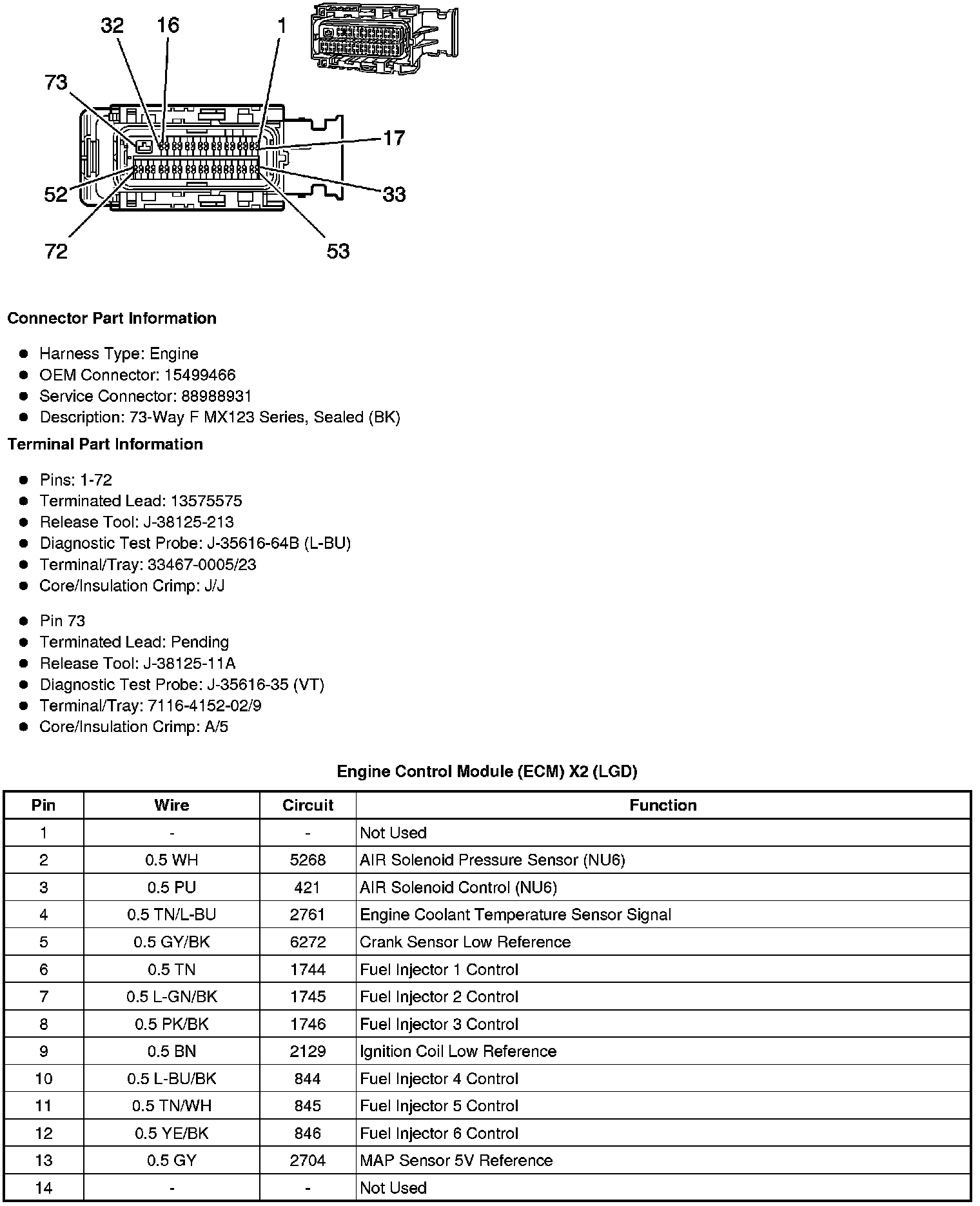

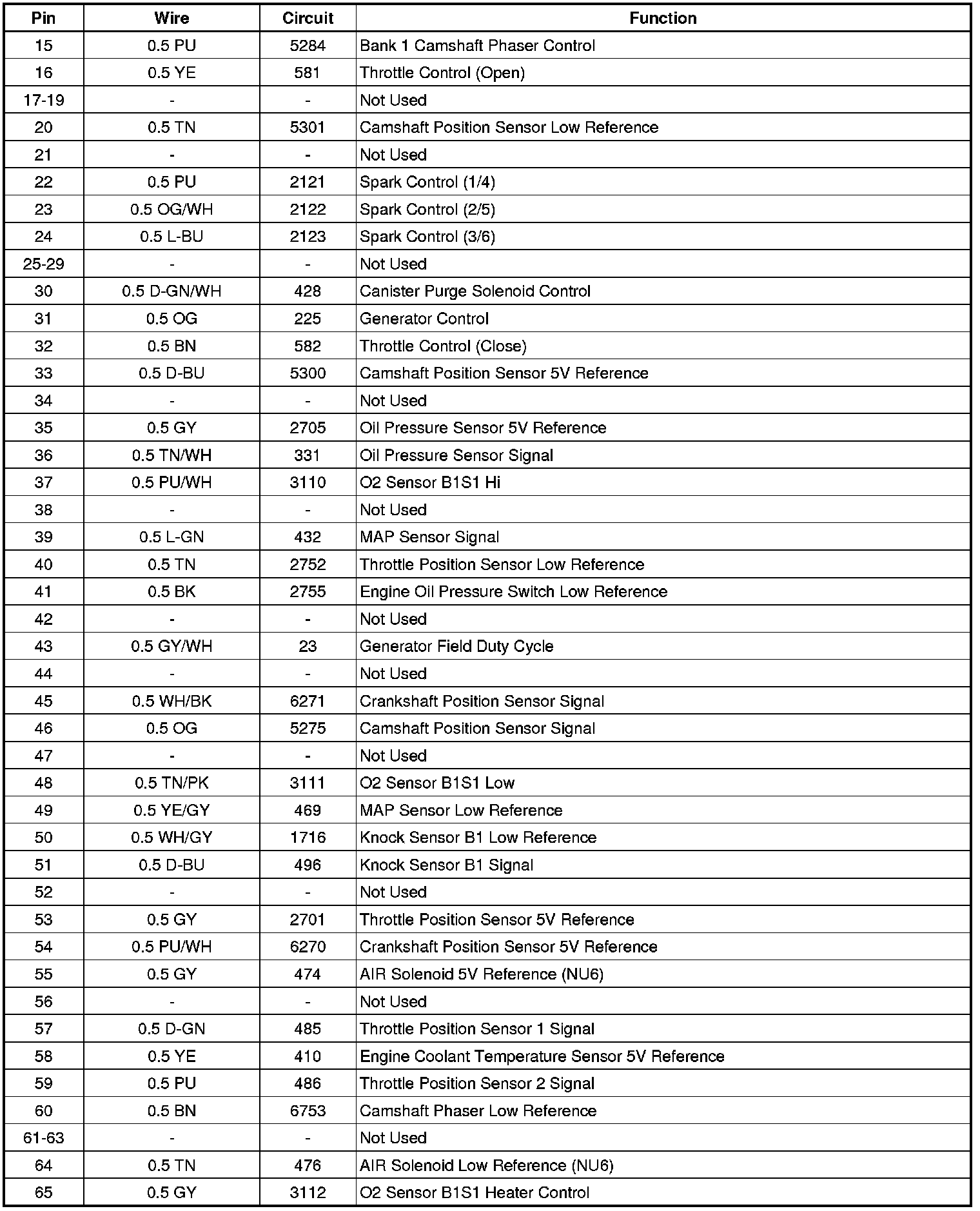

Engine Control Module (ECM) X2 (LGD)
