lemon-mirror
:
Home
>>
Buick
>>
2011
>>
Lucerne V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
Electronic Brake Control Module

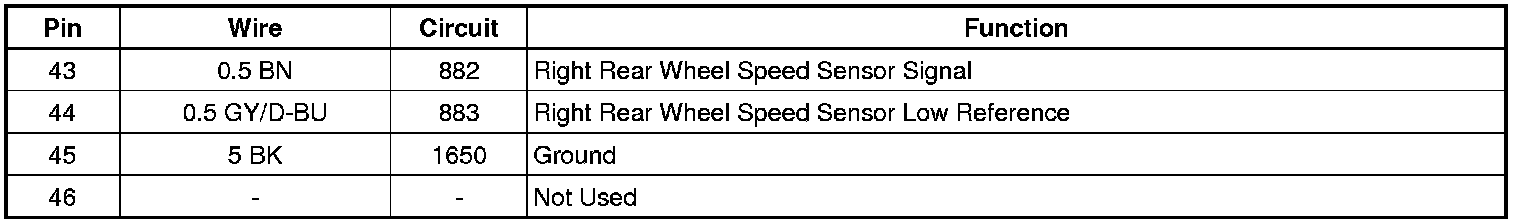

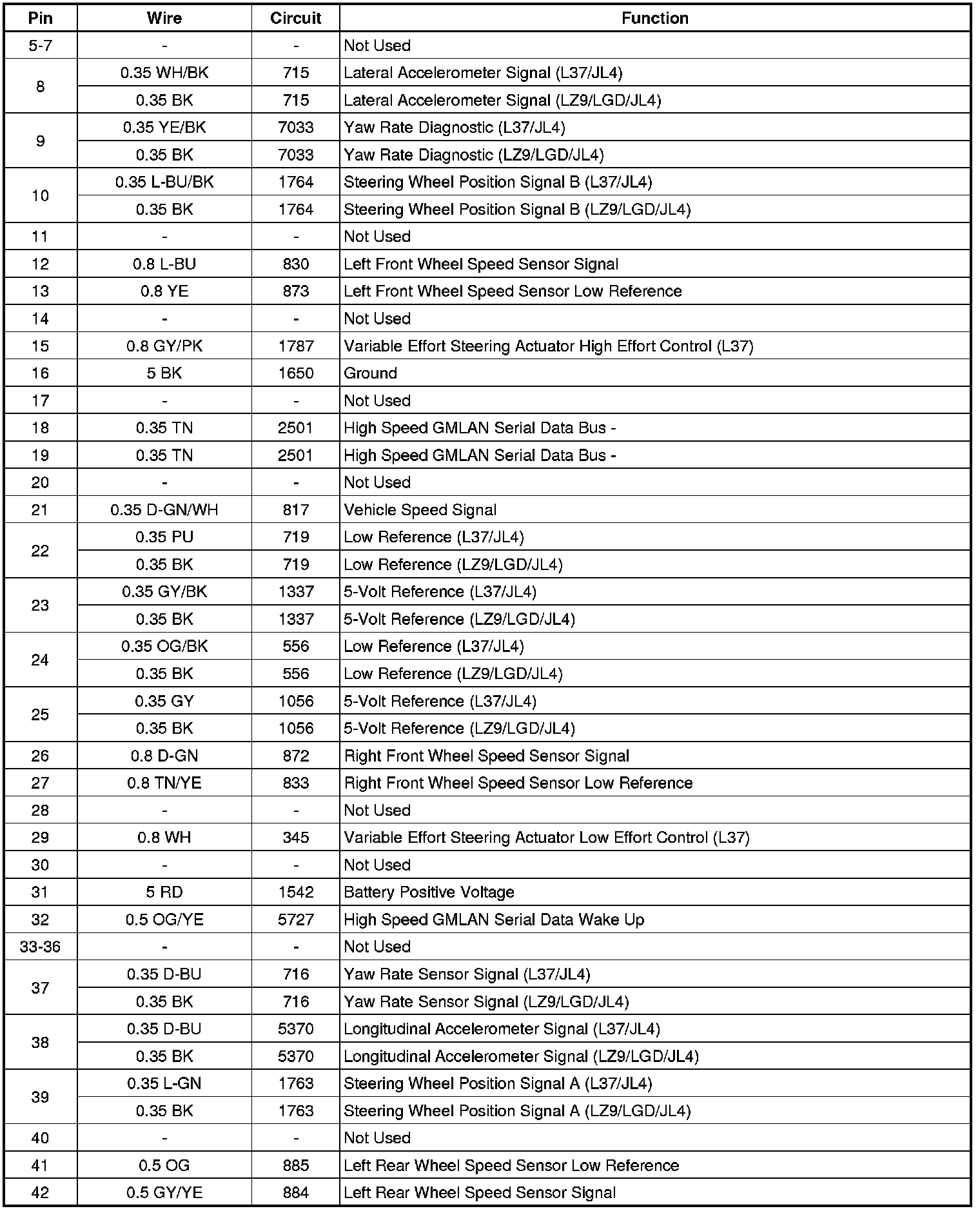

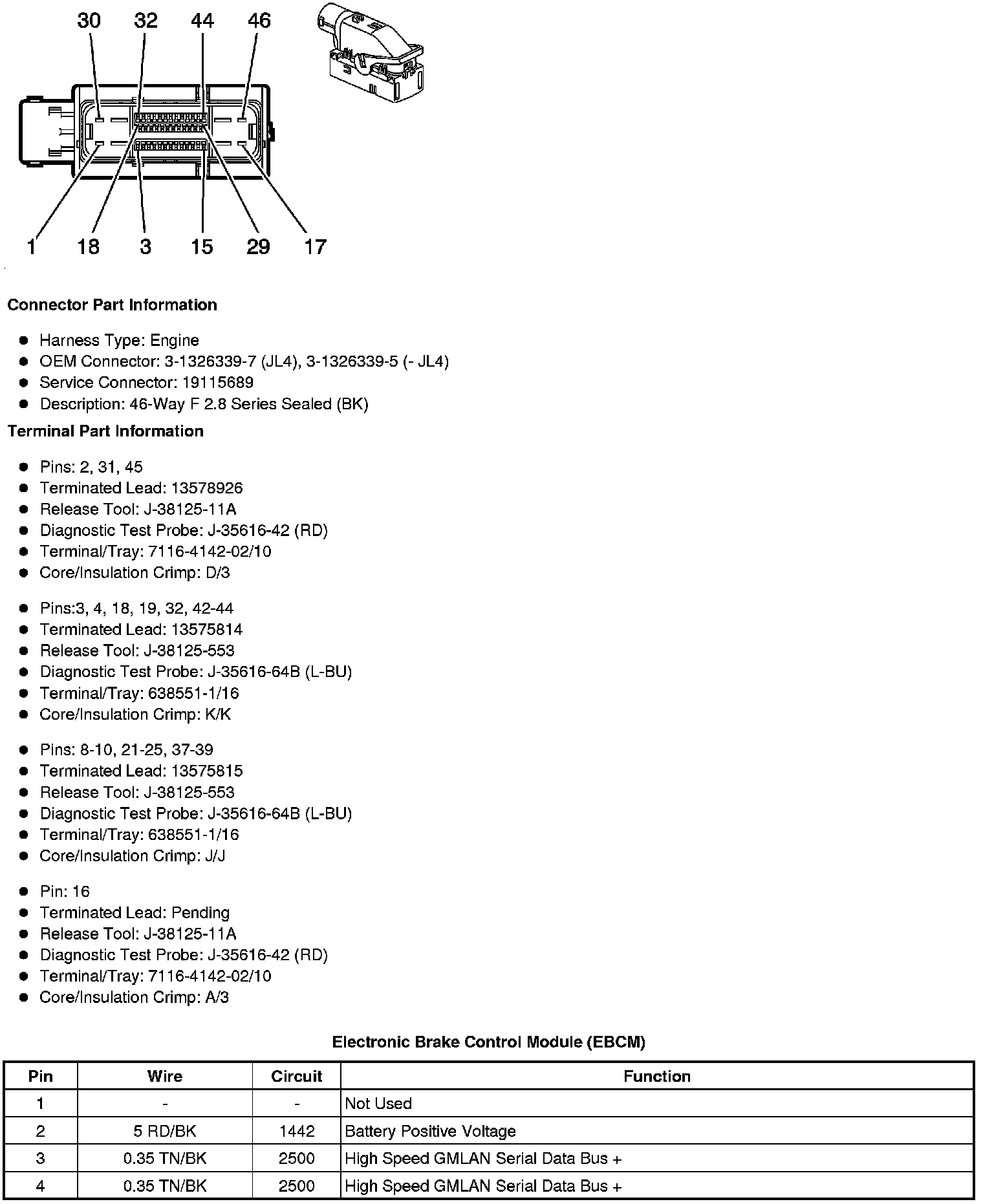

Component Connector End Views
Electronic Brake Control Module
(EBCM)
