Control Module HVAC




Component Connector End Views

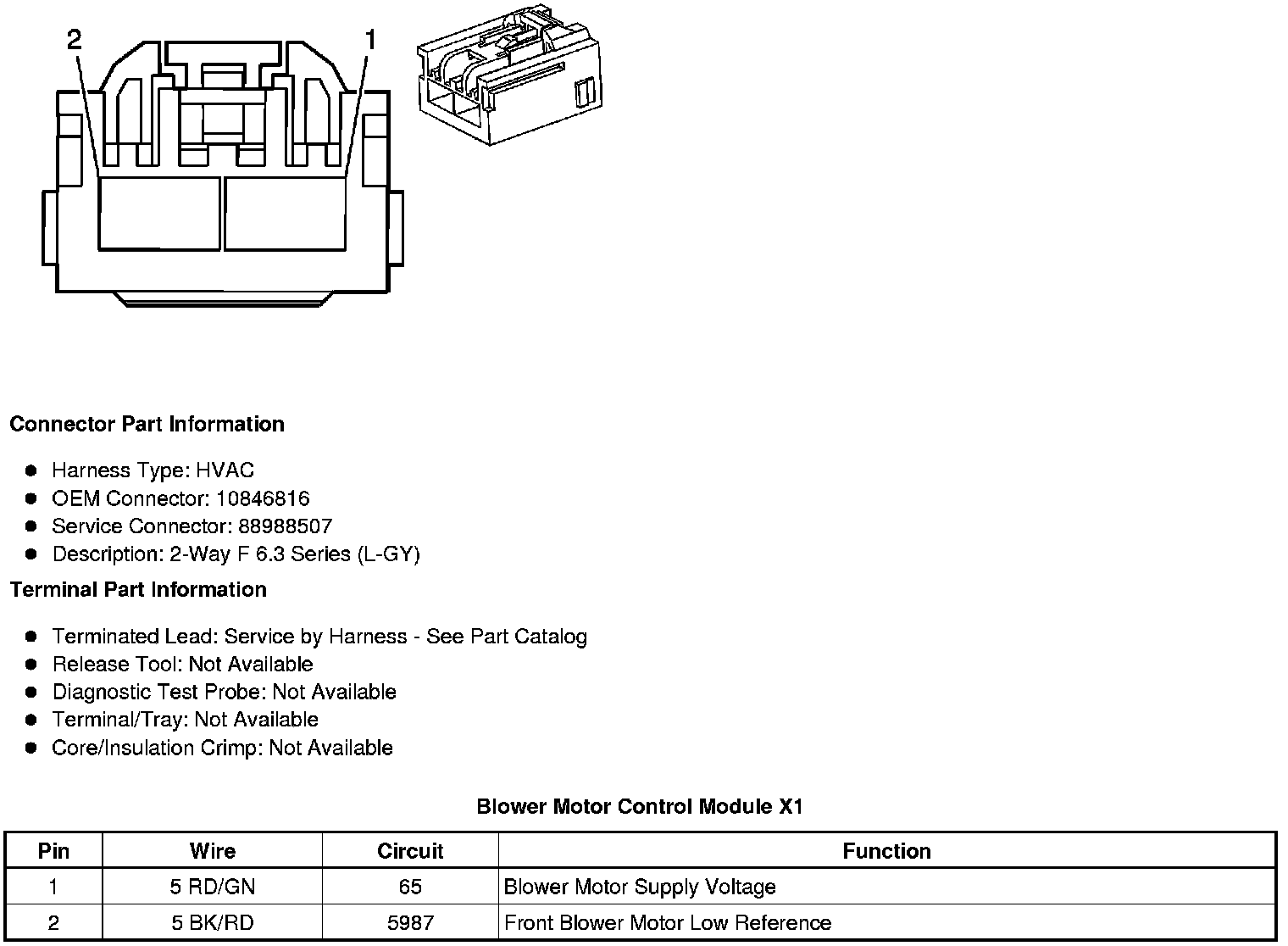

Blower Motor Control Module X1






Blower Motor Control Module X2 (C67)

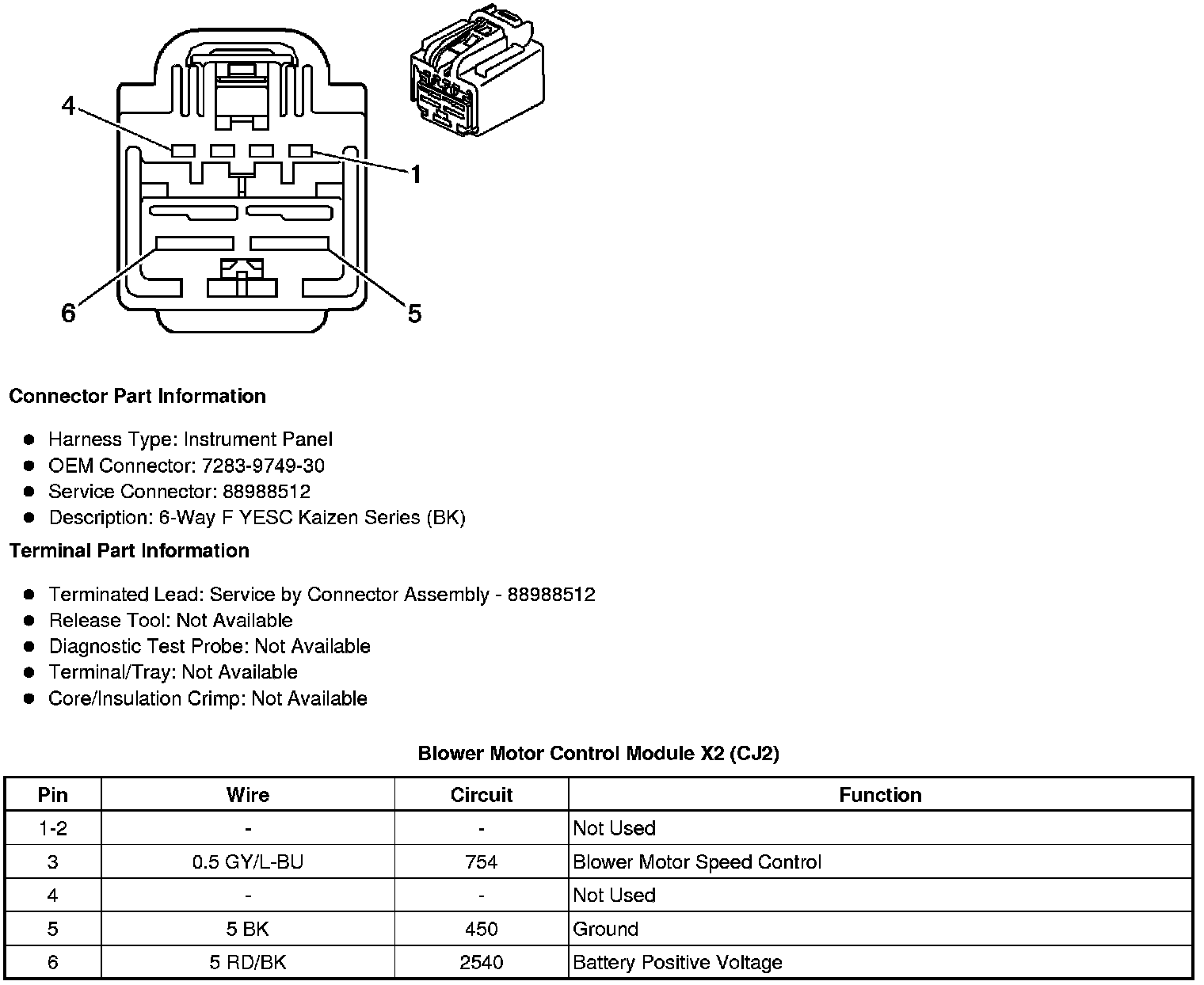

Blower Motor Control Module X2 (CJ2)
