Control Assembly, HVAC




Component Connector End Views

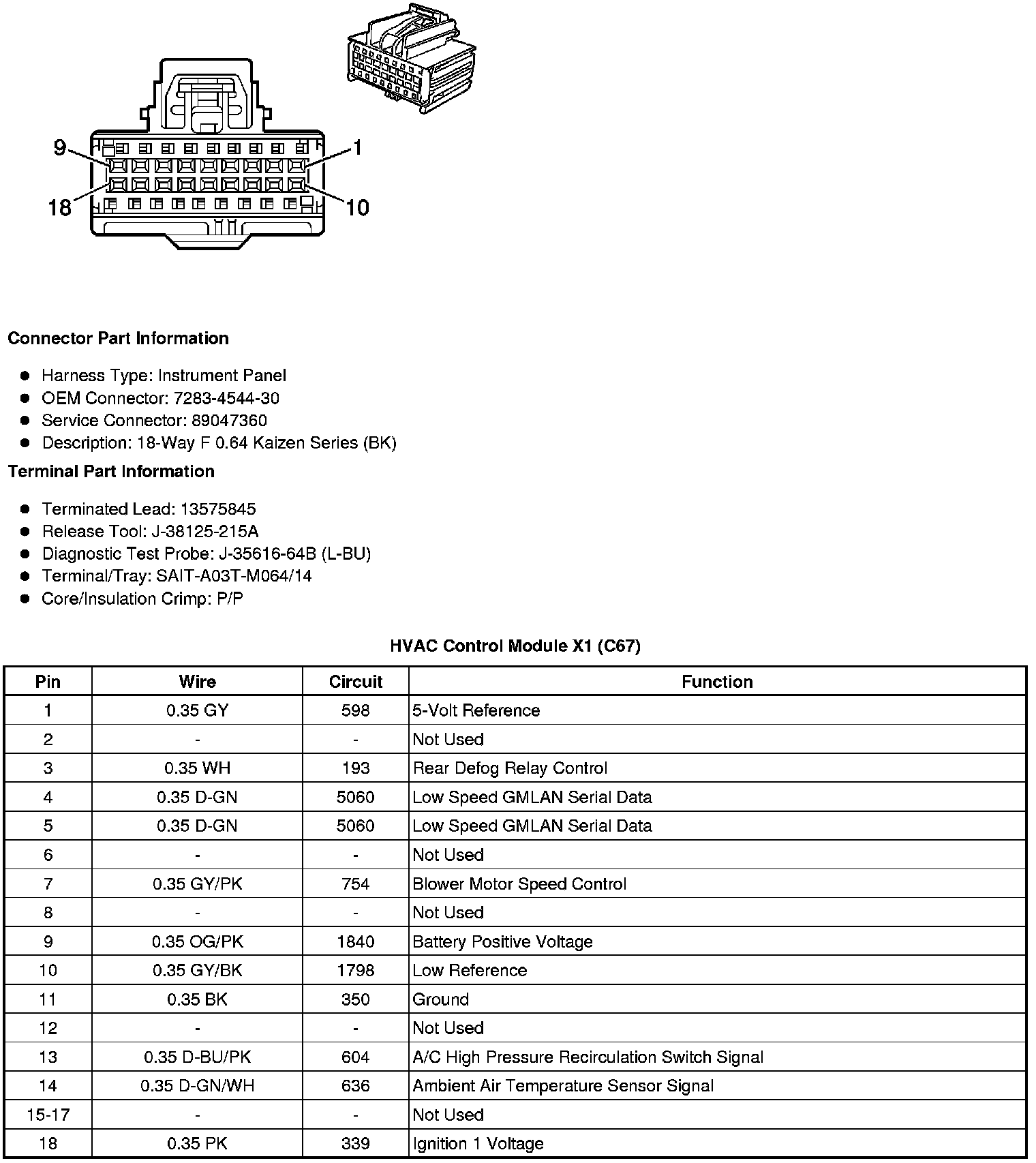

HVAC Control Module X1 (C67)

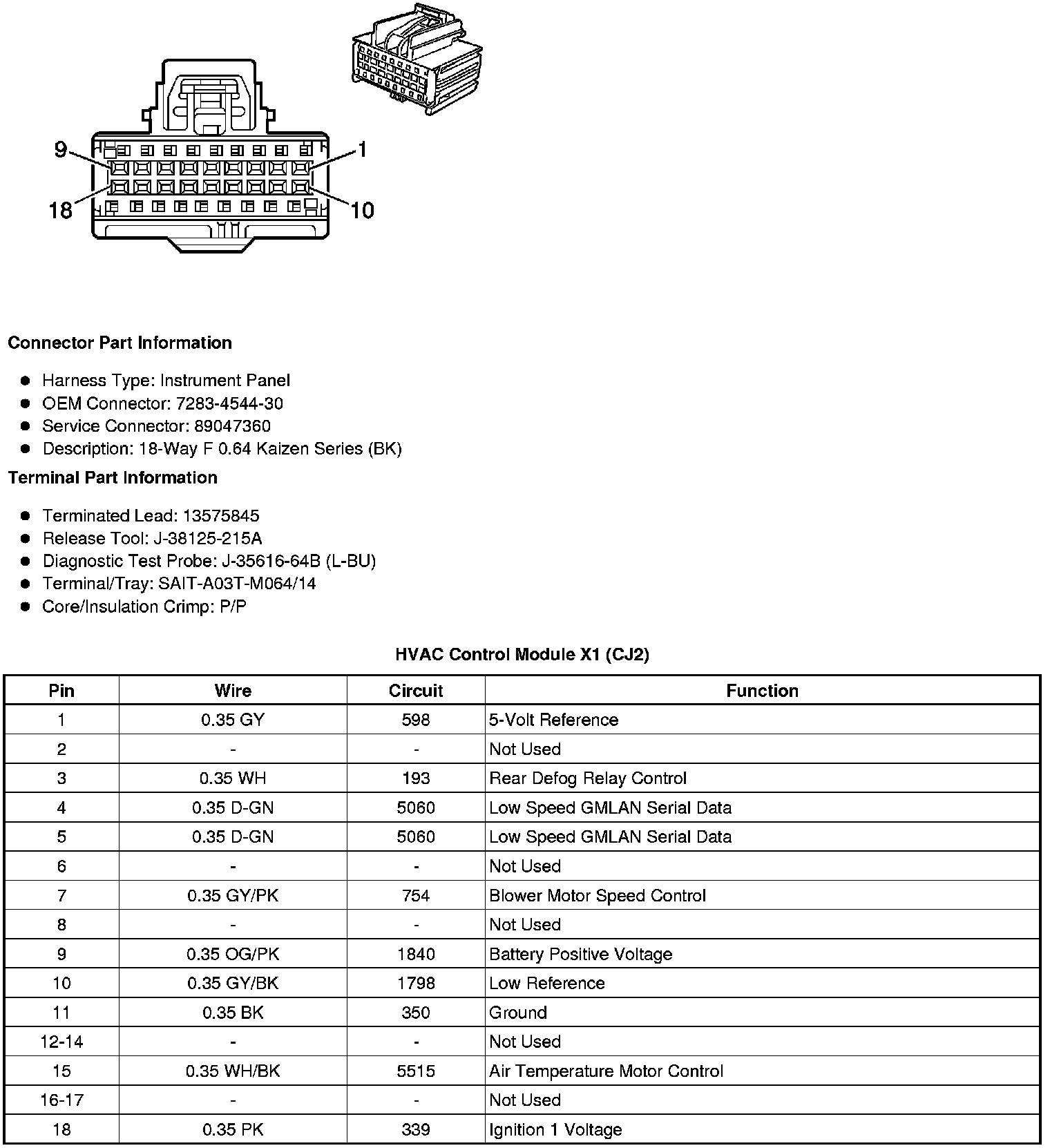

HVAC Control Module X1 (CJ2)

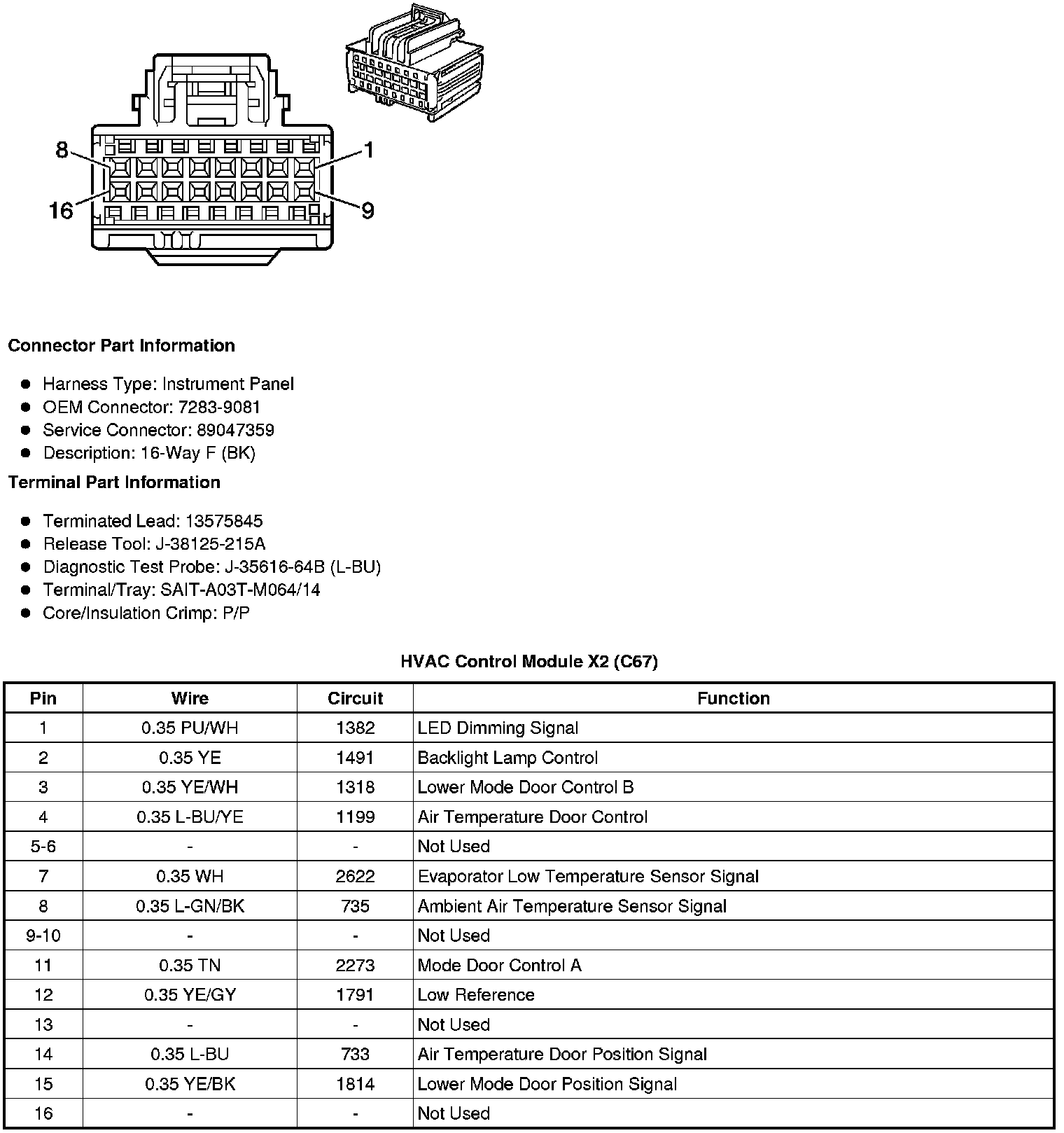

HVAC Control Module X2 (C67)

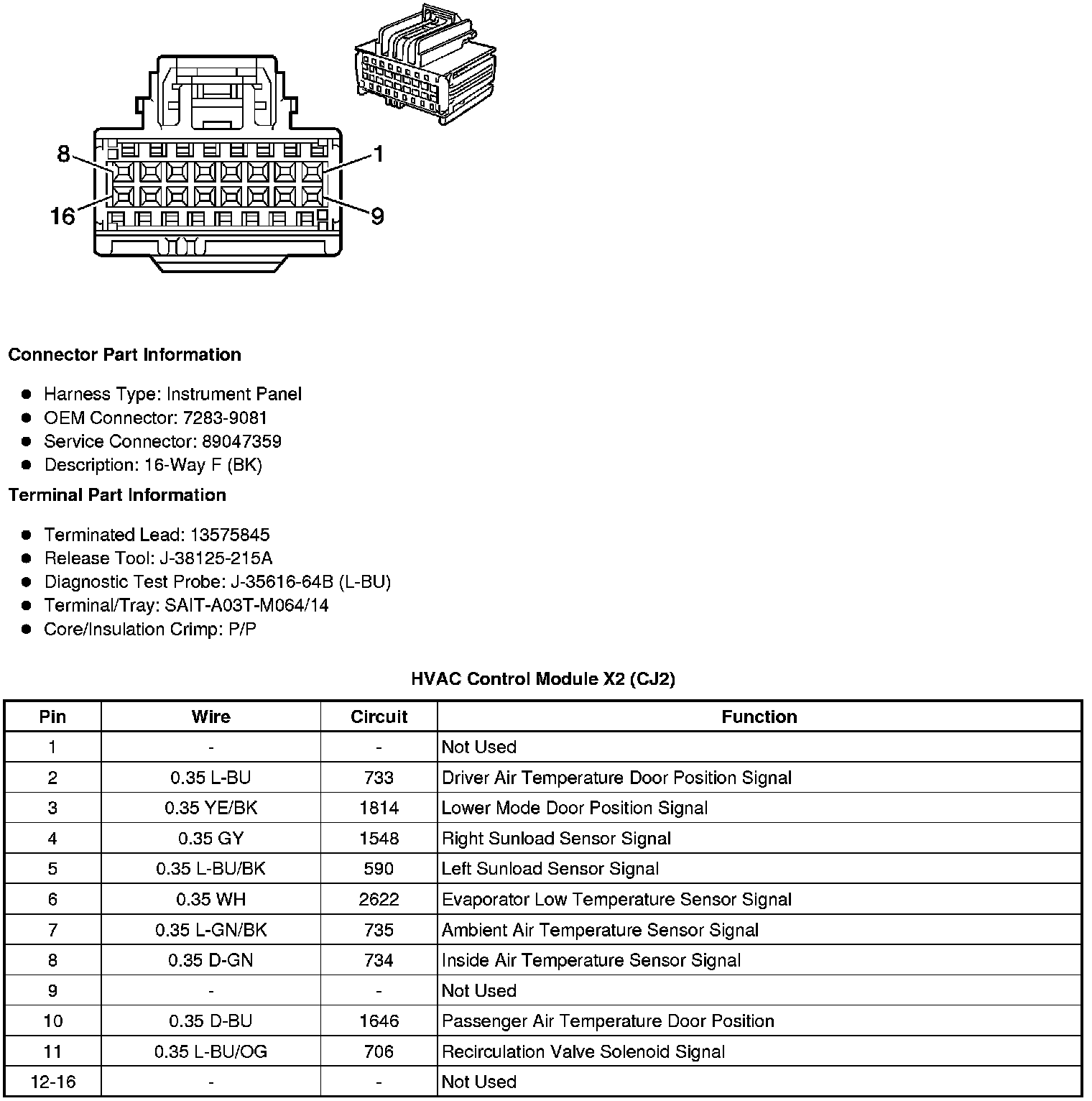

HVAC Control Module X2 (CJ2)

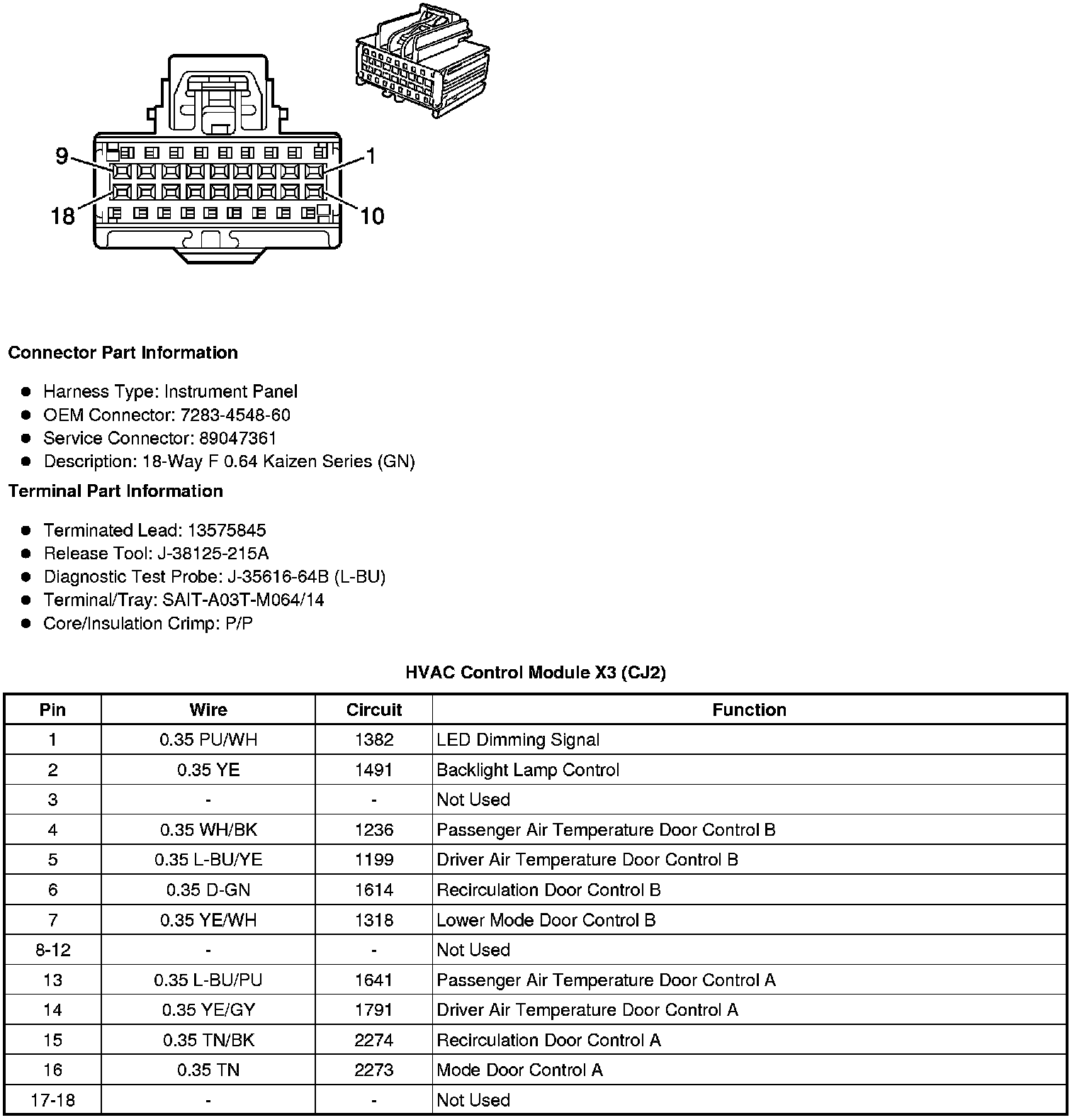

HVAC Control Module X3 (CJ2)
